Model: CO13

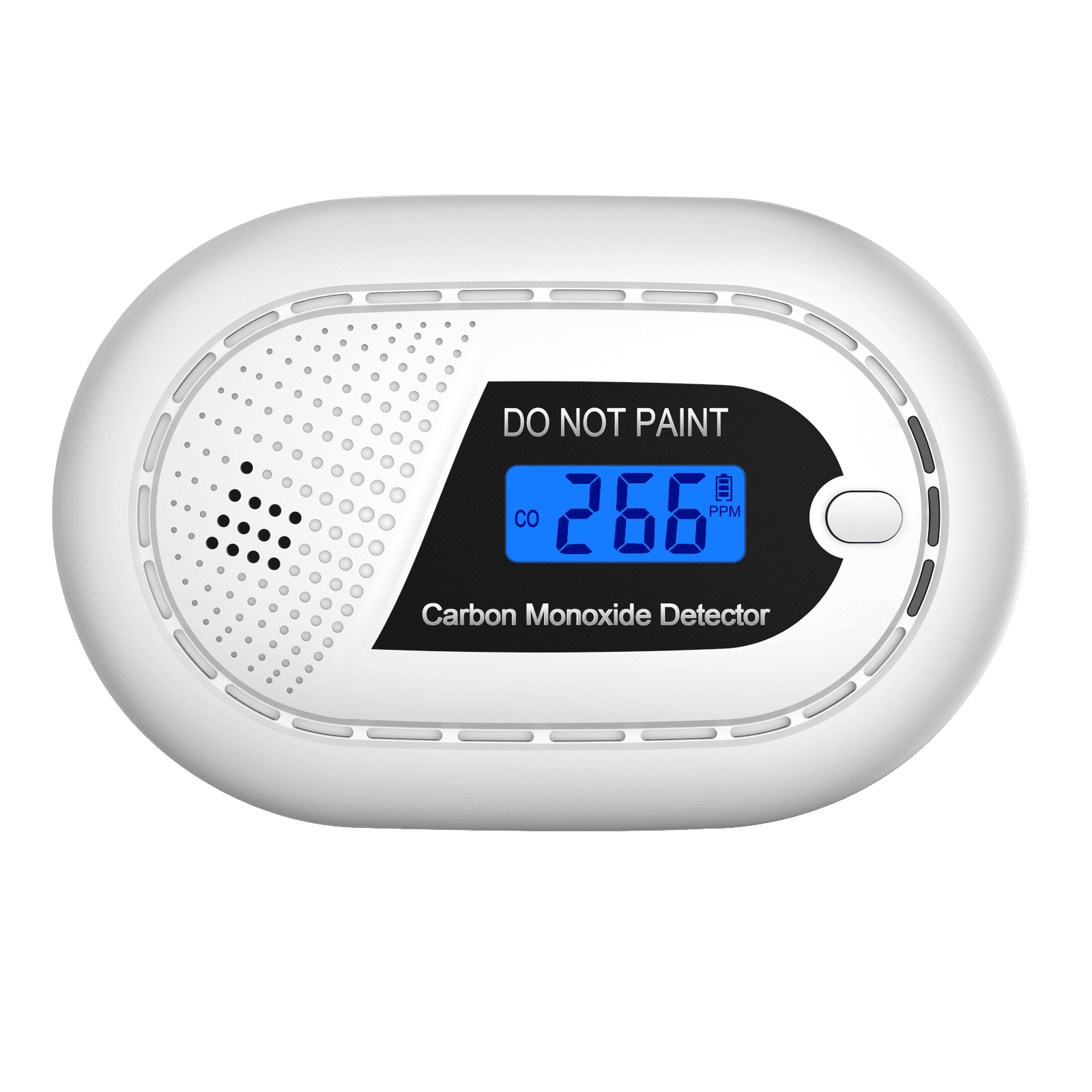

CO13 Standalone Carbon Monoxide Alarm

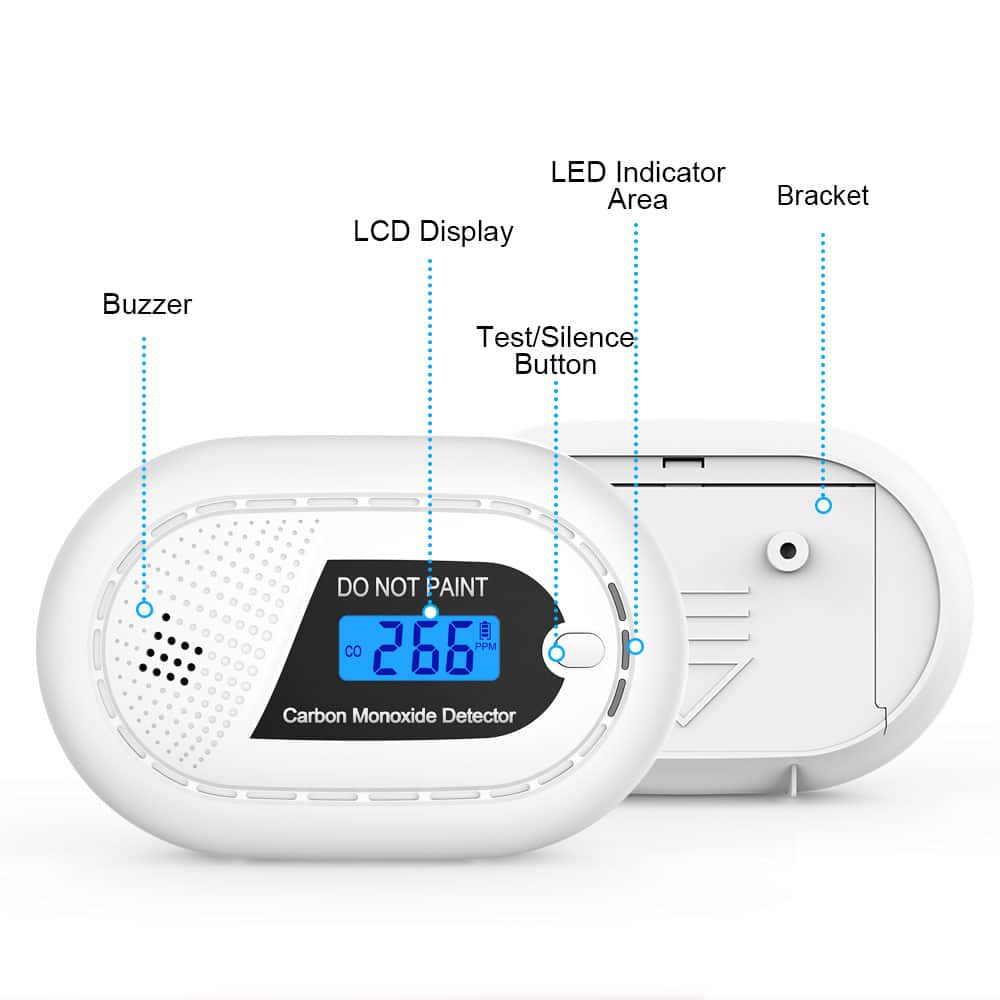

The CO13 standalone carbon monoxide alarm uses an electrochemical sensor to monitor CO levels with high accuracy, powered by two AA batteries and supported by a loud 85 dB buzzer and voice alarm. It features a 10-year sensor life, test/silence button, and is classified by TUV as an ordinary alarm, with UL2034 and UL2075 approval.
Unit Price: $10.73 – $13
Note: The price shown is indicative only—your final cost depends on quantity. Tap “Get A Quote” below and we’ll lock in the best unit price for you within one business day.
Model | CO13 |
|---|---|

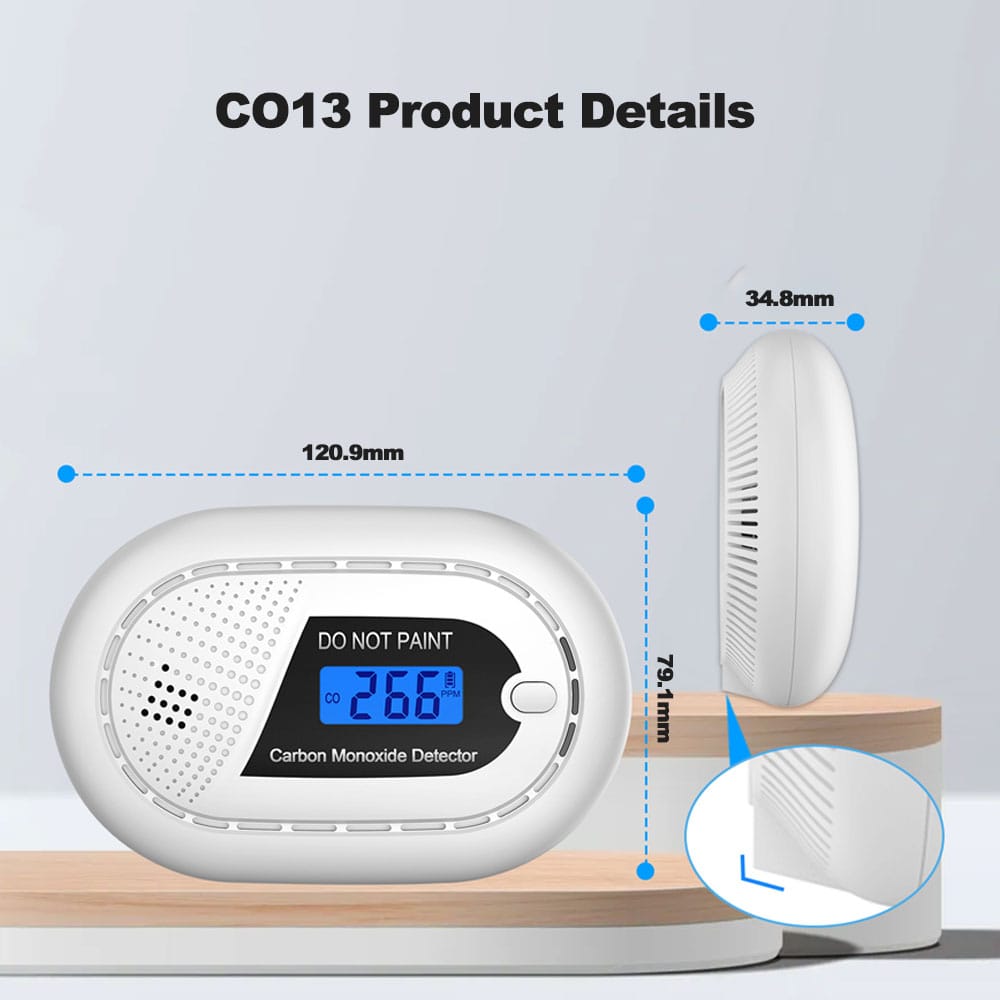

Unit Size | 121 * 79 * 35mm |
Packge Size | 125 * 120 * 38mm |
Package Weight | 250g |
Standards & Approvals | UL2075,UL2034 |
Lifetime | 10 years |
MOQ | 50 PSC |
Detection Performance
Detection principle | Carbon Monoxide Electrochemical |
|---|---|
Smoke sensitivity | NA |
CO sensitivity | 70ppm: 60~240min |
Wireless & Networking
Digital communication | NA |
|---|---|
Max. interlinked units | NA |
Working distance (open-air) | NA |
Power & Electrical

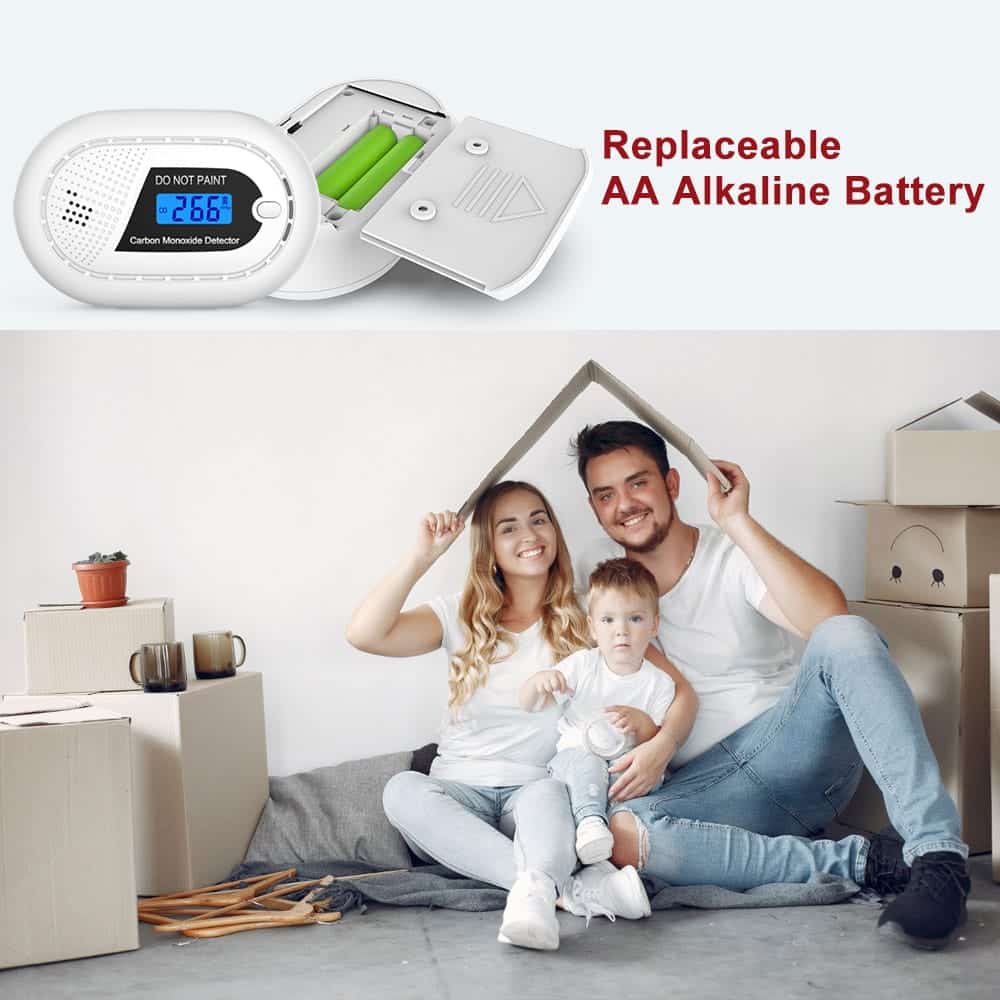

Power supply | 3.0V Alkaline BATTERY(AA , 1.5V*2) |
|---|---|
Stand-by current | ≤15uA ( 5 minutes average,by using UT181A) |
Alarm current (max) | ≤50mA Max |
Low-battery threshold | 2.6 ± 0.1 V |
Sampling rate | 1 Hz |
Audio & User Interface
Sound level | >85 dB(A) at 3 meters |
|---|---|
Silence duration | ≈ 10 minutes |

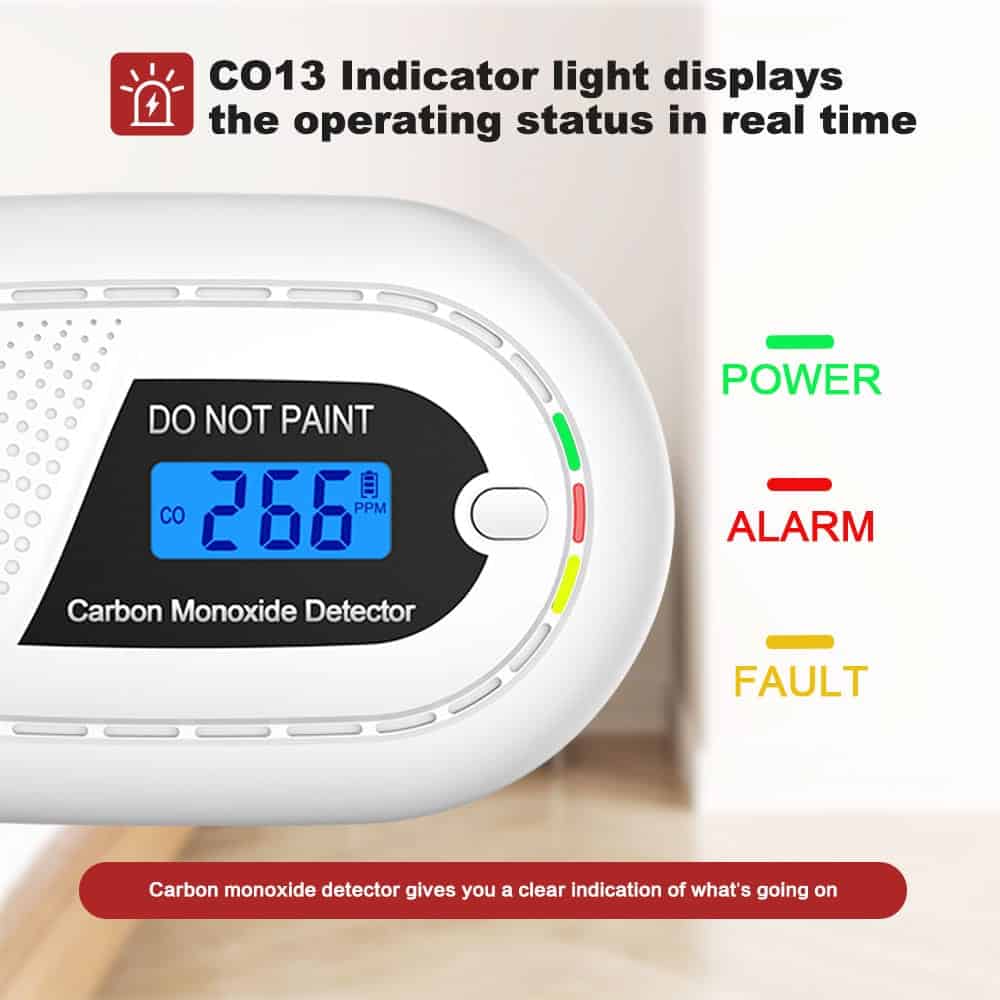

Status indicator | Red LED flash every 0.2 sec (with T4 alarm pattern). |
Environmental & Mechanical
Operating temperature | 4.4°C ~ 37.8︒C |
|---|---|
Humidity range | 10% ~ 95%RH |
Atmospheric-pressure effect | None |
Air-velocity limit | 0 – 300 fpm |
IP rating | IPx4 |
Housing material | White flame-retardant polycarbonate |
Terminal material | Tin plated stainless steel |
Certification
CE EN50291 For CO alarm
SM11 EMC certification
BS5446 Approval
AS3786 2023 certification
RED For wireless combination alarm
CE EN14604 from TUV
Smoke alarm Rohs Approval
EMC For CO alarm
SGS For CO alarm
CE UL2075 From TUV
CE EN14604 From CPR
RCM Test Report For YK01
SM11 Australian Design Patent
Heat alarm design patent
Gas alarm testing device -
Gas alarm design patent
A Kitchen Smoke & Heat Detector
Smoke alarm design patent
Combined alarm design patent -
CO alarm design patent
ISO 9001 Certificate
BSCI Certificate
Full-Dimensional Customization Capabilities
From concept to mass production — UL, EN, AS, CE certified design capabilities with systematic quality control beyond simple OEM.
Size & Shape
Circle
Dimensions | 90-120mm (3.54-4.72″) |
Thickness | 30-70mm |
Square
Dimensions | 100-120mm (3.94-4.72″) |
Thickness | 30-70mm |
Rectangle
Dimensions | 40-100mm (1.57-3.94″) |
Thickness | 30-70mm |
Oval/Special
Dimensions | Custom |
Thickness | Ultra-thin available |
Materials & Finish
Meterials
ABS
PVC
PC
HIPS
PP
UV-resistant
Surface
Matte
Glossy
Frosted
Colors
Pure White
Ivory
Black/Grey
Pantone
Logo & Printing Methods
Laser Engraving
Permanent, eco-friendly, non-contact processing
Heat Transfer Printing
Complex patterns & gradients, high temperature resistant
Screen Printing
Solid colors, simple patterns, strong adhesion
In-Mold Decoration
Injection-molded permanent marking
Pad Printing
3D surface printing, conductive inks available
Packaging Solutions
Color Box
Hang Tag Retail
Amazon FBA
Kraft Paper Eco
Bulk Engineeredv
Custom Trays + UPC
Alarm Software
Standard Curves
Per country
Custom Timing
Alarm logic
Sound & Voice
Audio modes
Silence Logic
Mute control
LED Patterns
Display
Power Options
Communication Links
The CO13 Standalone Carbon Monoxide Alarm monitors Carbon Monoxide by using an electrochemical sensor. Ambient air (containing carbon monoxide) slowly diffuses into the CO sensor through vents on the alarm casing. This generates an electric current: the reaction produces a tiny flow of electrons (current). The higher the concentration of carbon monoxide, the more molecules participate in the reaction, and the stronger the current produced. It is classified as an ordinary Alarm by TUV.
Key Features
CFS® (Shenzhen Fire Security Technology Co., Ltd.), as a leading manufacturer specializing in fire safety alarms, we design and produce a comprehensive range of Smoke Alarms, CO Alarms, and Combo Alarms to protect homes and businesses worldwide.
🏭 OEM & ODM Services Available
We offer complete customization services including private labeling, custom packaging, and product modifications to meet your specific market requirements.
