Electrical Control
Equipment
Customized Fire Protection Electrical Control Equipment Solutions (OEM/ODM).
CFS controls not only the equipment, but also the execution capability of the entire fire protection system.
CFS is an OEM/ODM factory specializing in Electrical Control Equipment with over 20 years of industry experience. We provide B2B clients with highly stable, consistent, and customizable Electrical Control Equipment solutions.
What We Can Provide
Fire Pump Controller Custom
Fire Damper Control Panel
Emergency Equipment Controller
Enabling Fire Protection Systems to Not Only “Alarm,” But Also “Truly Execute Linked Control”. Fire protection electrical control systems are typically triggered by a fire alarm control unit, and their core principle is “signal reception—logic judgment—high power execution.”
In actual fire protection projects, many system problems lie not in “detection,” but in “execution”:
To enable fire alarm systems to truly drive “action execution”.
During selection and project integration, procurement and product managers need to focus on rated power, electrical isolation level, response time, and control loop stability, especially under high load or continuous operation scenarios.
The equipment’s heat dissipation design and protection mechanisms (overload, short circuit, reverse connection protection) directly affect system reliability.
Mature solutions typically support standard communication interfaces and linkage protocols and comply with UL, CE, or CCC certification requirements, ensuring long-term stable operation in complex engineering environments.
Full Customization
What Can We Customize?
CFS supports customization of size/shape, logo & pattern, protocol/communication method, control Logic and application scenarios.
We support full customization from the underlying circuitry and software to the mechanical.

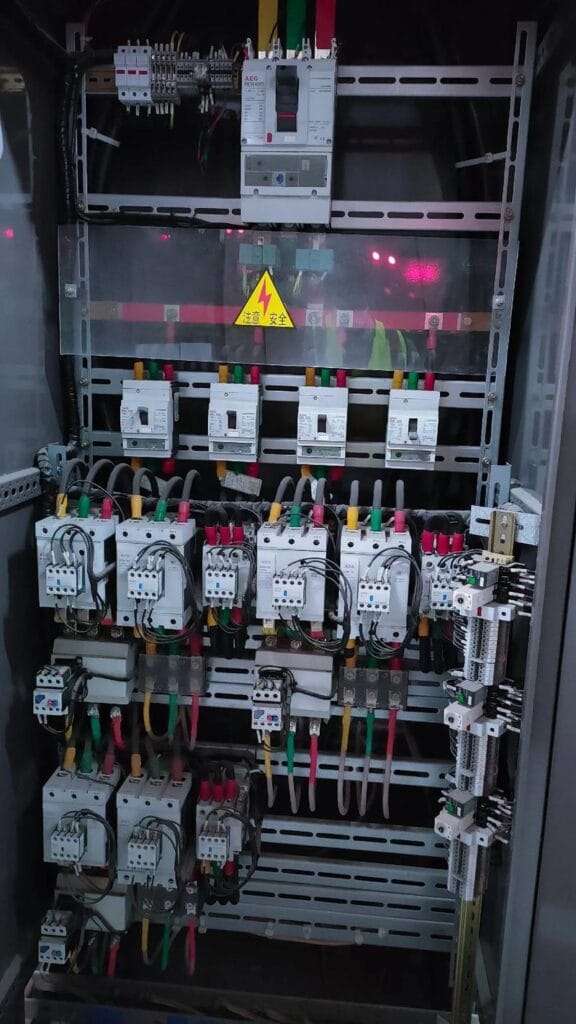

➡️ For high-voltage control scenarios, CFS offers:

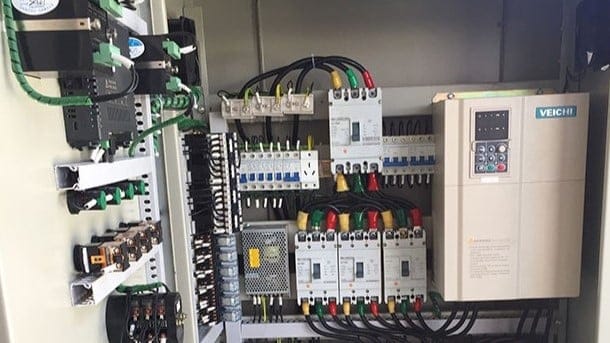

- Industrial-grade electrical design
- Supports control of equipment, such as:
- Fire pumps
- Fans
- Fire dampers
✅ Achieve system linkage and automatic control, solving the problem of:
“How does an alarm system drive electrical equipment?”
CFS assists our clients with the compliance test for:
- CE / EN54 (Europe)
- UL (North America)
- CCC (China)
Providing:
Technical Details
Technical Specifications
The system first receives control signals (such as start, stop, or linkage commands) from the fire alarm controller.
The internal control unit performs logical judgments and safety checks (including interlocking conditions, delay strategies, and fault self-checks).
Subsequently, it drives relays, contactors, or solid-state devices to reliably control loads such as fire pumps, smoke exhaust fans,
and fire dampers. Interlocking control signals are typically transmitted via a fire system communication gateway.
Your Custom Solution vs Off-the-shelf Products
No. | Item | Custom control cabinets (CFS) | Standard control cabinets |
|---|---|---|---|
1 | Control logic | ✅ Fully customizable | ❌ Fixed |
2 | System compatibility | ✅ Strong | ❌ Moderate |
3 | Installation adaptability | ✅ Higher | ❌ Limited |
4 | Function expansion | ✅ Flexible | ❌ Limited |
5 | Project matching | ✅ Precise | ❌ Universal |
Key Parameters (Example)
Control Voltage
24V / 220V / 380V
Output Method
Relay / Contactor
Control Delay
< 1 second
Protection Rating
IP54–IP67
Operating temperature
-10°C ~ +60°C
Manufacturing Excellence
Manufacturing Process
Our 9-step standard customization process ensures quality and reliability at every stage
1️⃣ Customization Requirements
Size, quantity, application scenarios, certification requirements, target price, lifespan, accuracy Requirements
2️⃣ Technical Assessment
Engineering feasibility study
3️⃣ Design (Solution Design)

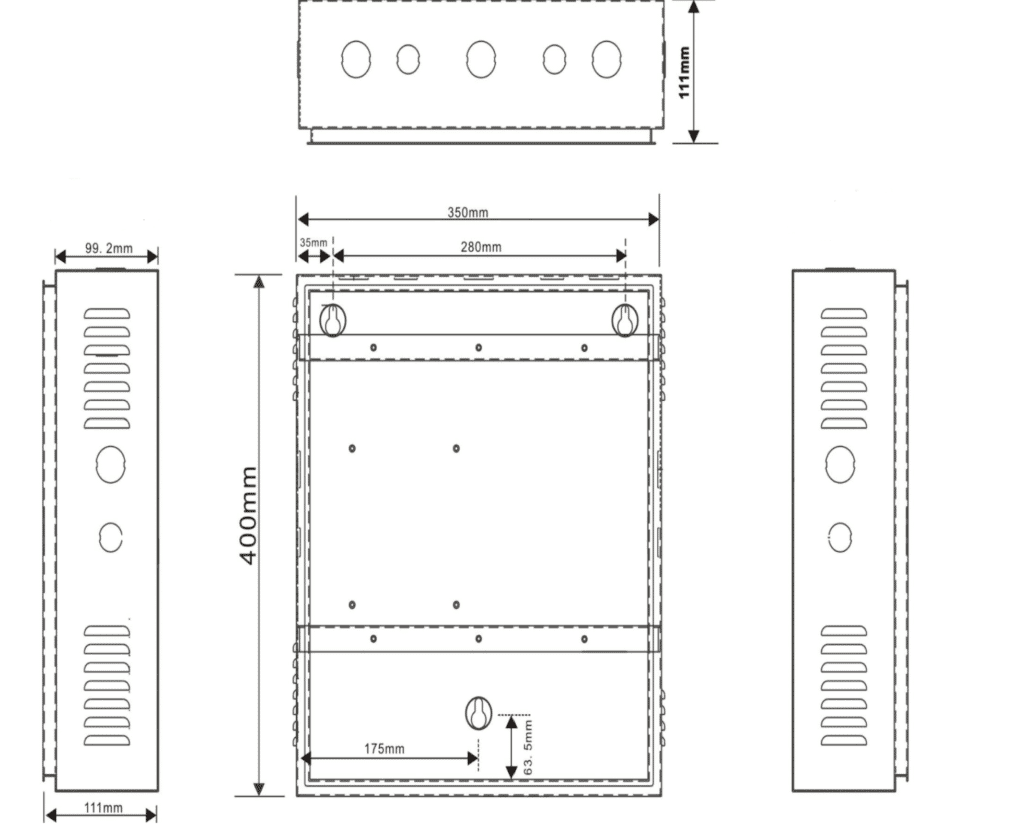

Schematic diagram + power distribution scheme

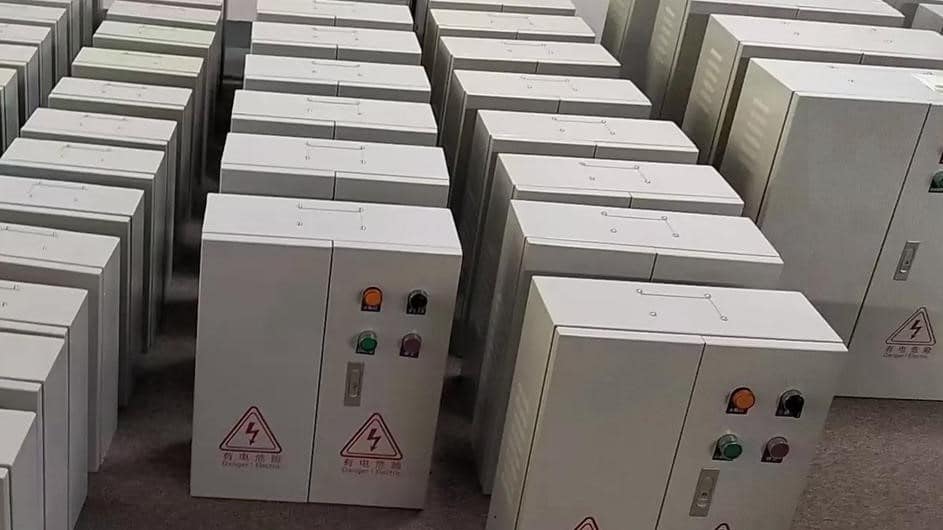

4️⃣ Prototype
Fast prototyping in 3–5 weeks

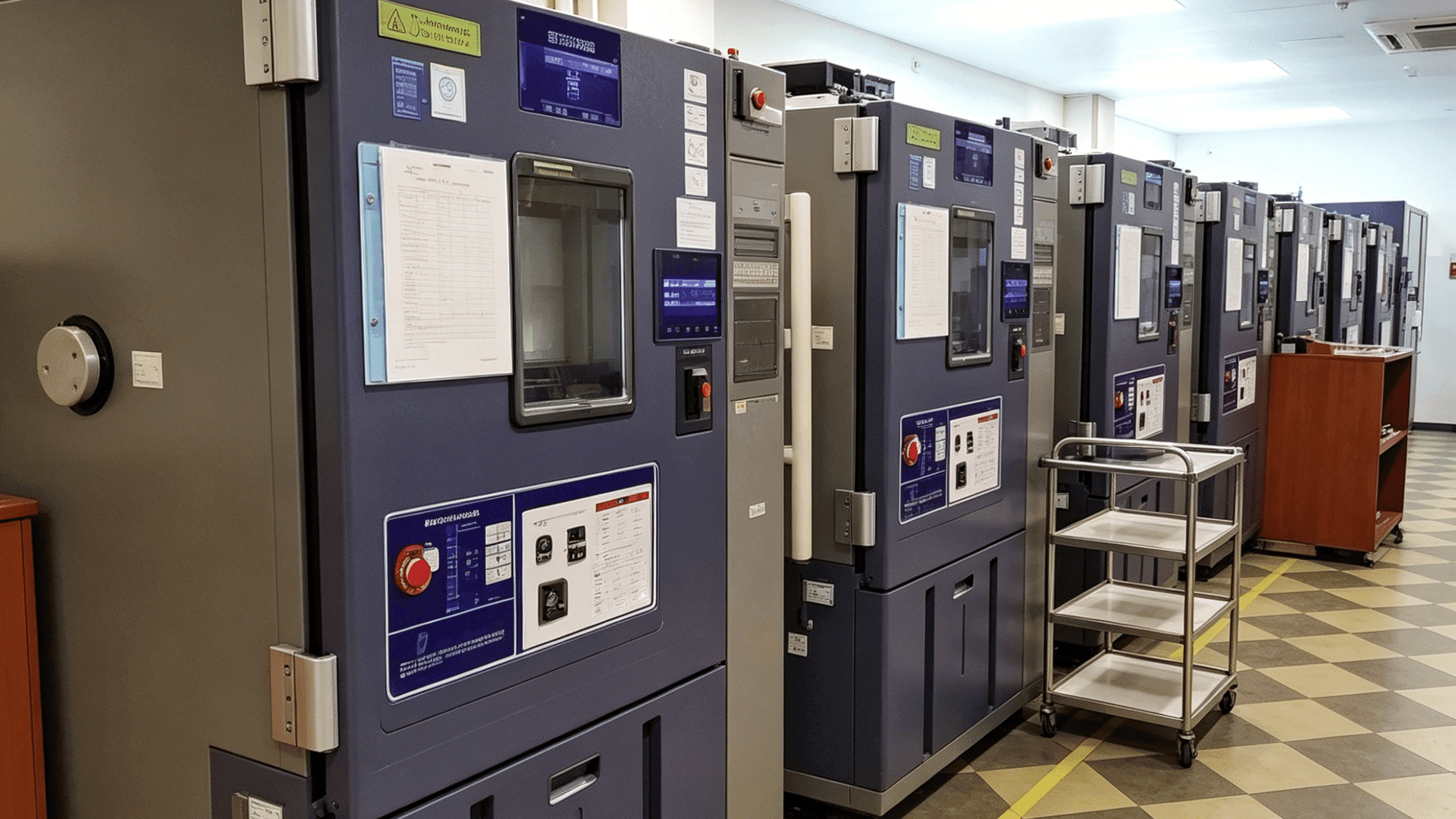

5️⃣ Testing

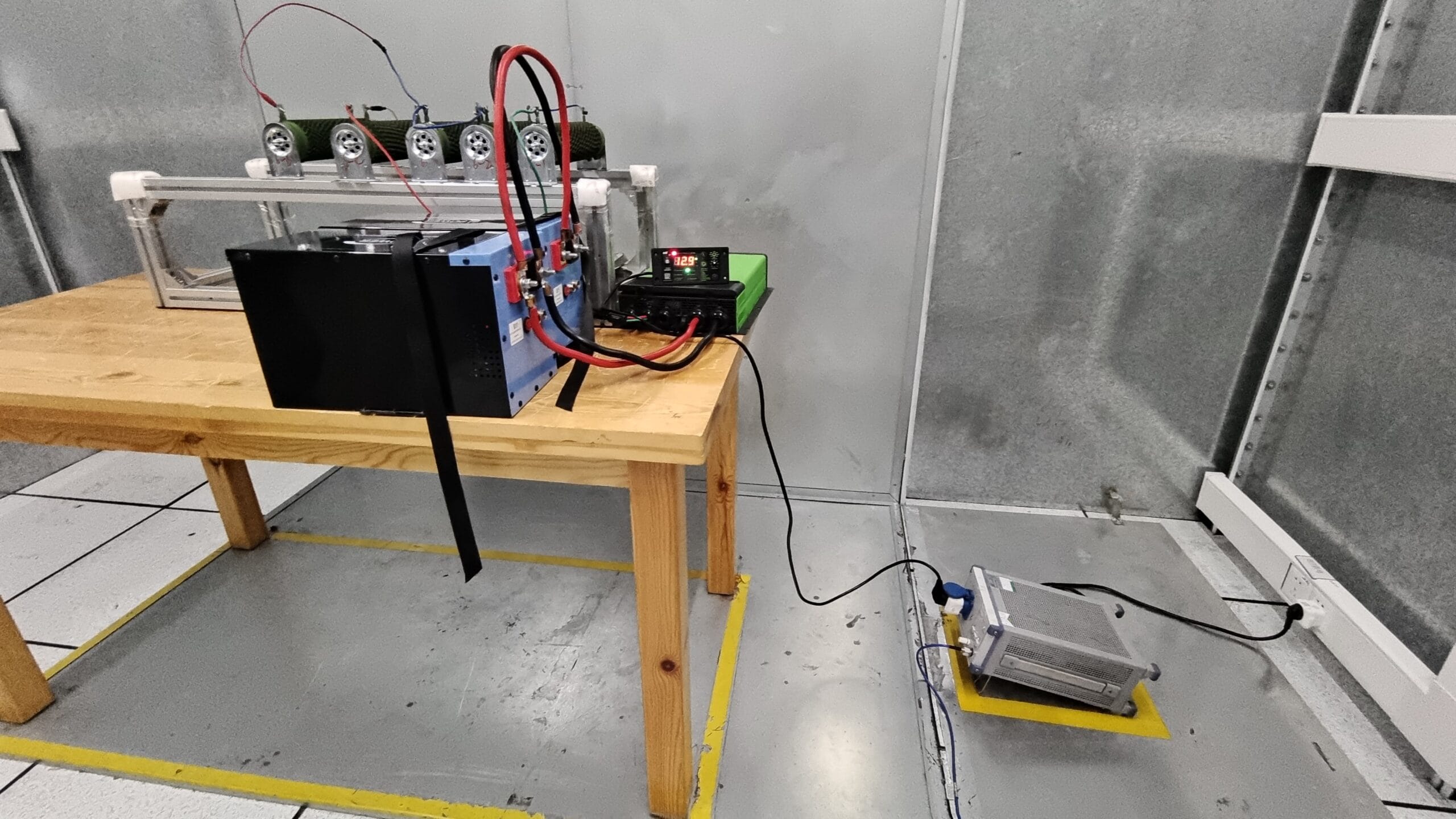

EMC / Environmental Testing / Functional Verification
6️⃣ Client Sample Approval
Sample confirmation and test report validation

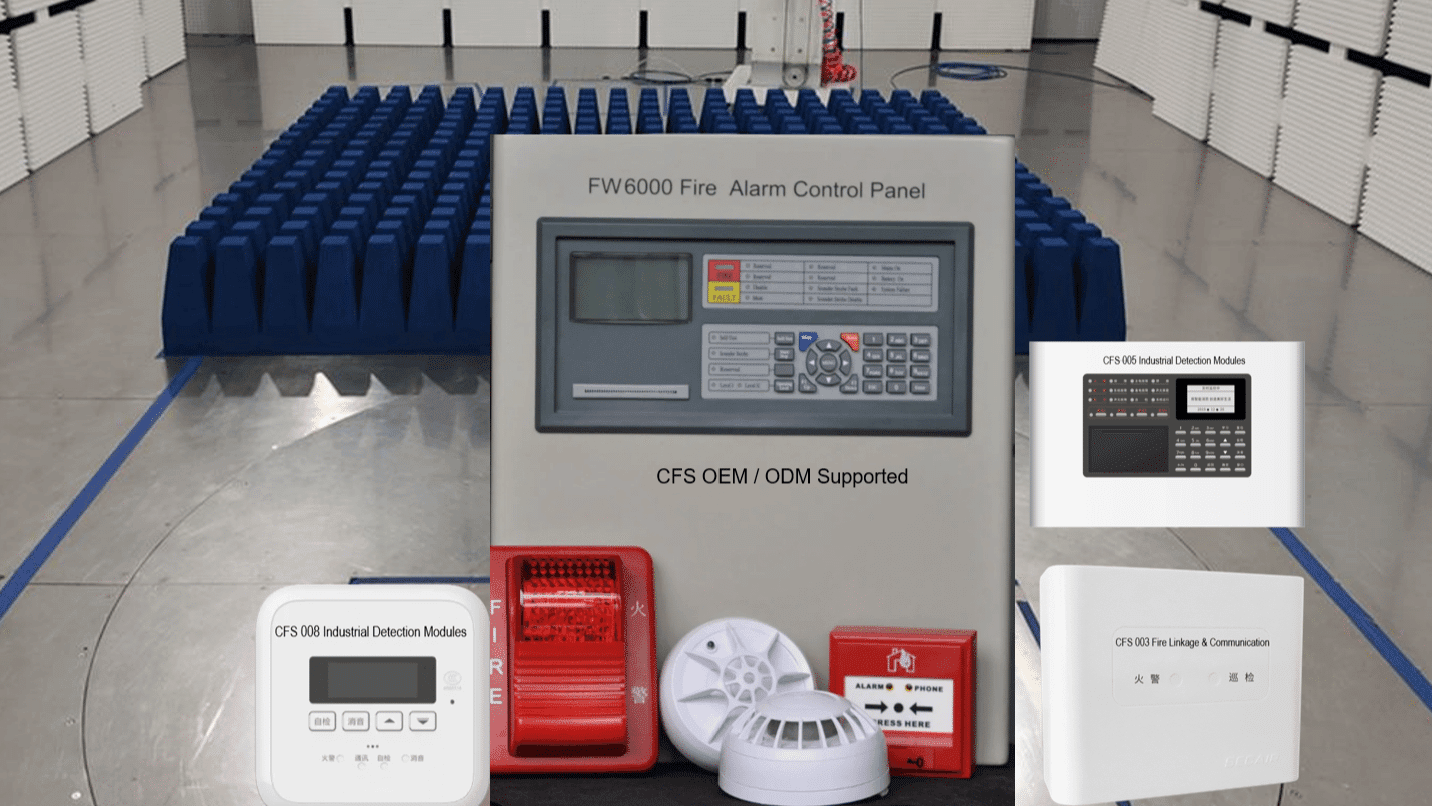

7️⃣ Certification Support
UL / CE / CCC
8️⃣ Mass Production
Quality Control + Traceability.
Scheduled production meeting OTD (On-Time Delivery) requirements

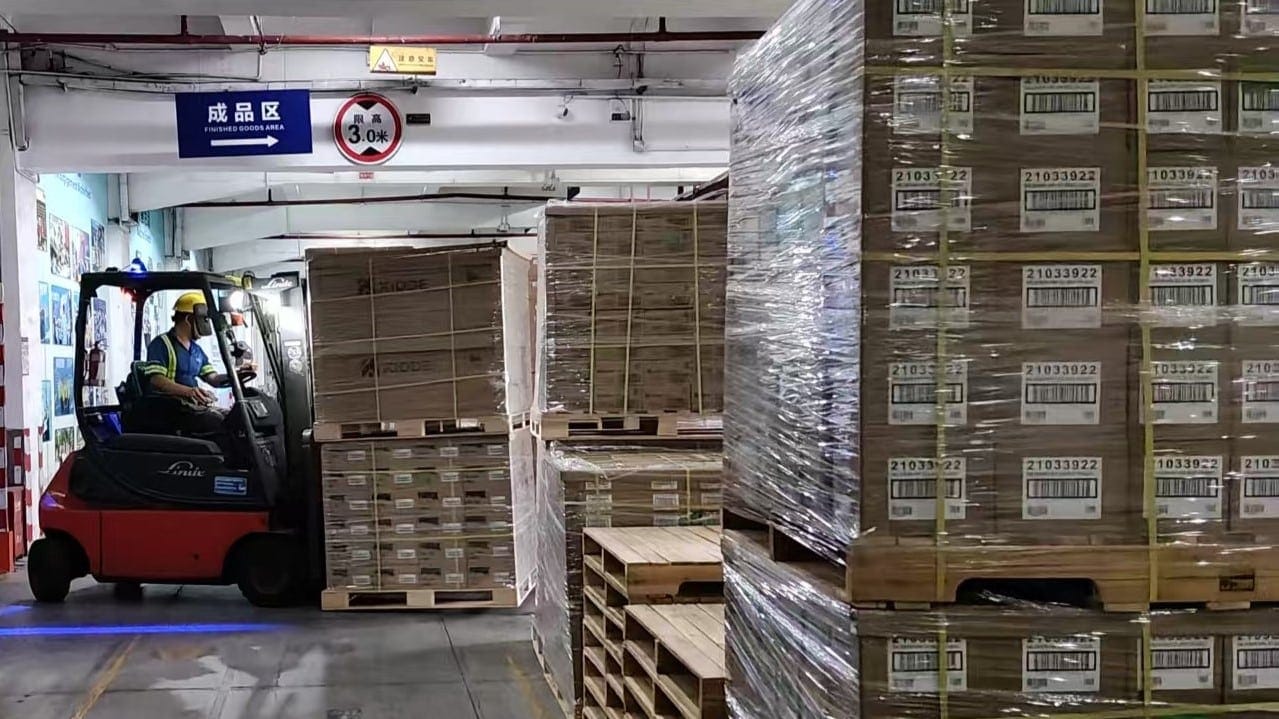

9️⃣ Shipping & After-Sales
Logistics tracking, 24-hour complaint response, root cause analysis
Each step is carefully monitored to ensure the highest quality standards and on-time delivery
Wide Range of Uses
Industry Applications
In industrial applications, electrical control devices need to be used in conjunction with industrial
detection modules to improve response accuracy.
Commercial Buildings
Subways/Transportation Hubs
Energy Facilities
Industrial Plants
Hospitals/Data Centers
Our Advantages
Why Choose Us as Your Manufacturer?
20+ years of experience in fire protection electrical systems
Integrated capabilities in both high-voltage and low-voltage electrical systems
Flexible OEM/ODM customization
Direct engineer support
Fast delivery capability
Got Questions?
Frequently Asked Questions
Find answers to common questions about our services
Start Your Fire Control Project
Get free samples, customized solutions, and cost assessment. Our team is ready to help you
develop the perfect fire alarm control panel for your application.
Stable Supply Chain
20+ years manufacturing excellence
Low Risk
6 Sigma Management & traceability
Global Certifications
UL, CE, UKCA, RoHS compliant
20+
Years Experience
9+
Engineering Team Members
99.9%
Quality Rate
24/7
Technical Support
Talk to Our Fire Control Engineer
Please provide the following information:
“Safety is not a one-time shipment, but a 10-year responsibility.”
