Factory Project
Introductions

This project installs a comprehensive fire safety early warning system for industrial plants in Turkish. There are 10 large production lines, equipment maintenance areas, storage areas, office and auxiliary areas, and electrical equipment rooms in the factory, total 5000 square meters. There are multiple fire risks (high-temperature friction from machinery, abnormal electrical wiring, accumulation of dust/flammable materials, etc.), and the CO risk (especially in spaces with dense machinery).

Referring to the building’s functional layout and operational requirements and product types and technical characteristics, the project is comprehensively designed and planned the fire detection and alarm system with EN14604 & EN50291 fire safety regulations for this factory. The system uses 56pcs alarms (smoke alarms, heat alarms, CO alarms) and controllers. It enables early fire warnings, lower false alarms, timely evacuation, easy maintenance and emergency response in the initial fire or carbon monoxide leak stage and simultaneously gives the information to factory management and employees.

😔 Challenges

Dust and low false alarms: There are large amounts of dust and volatile gases in the production and storage areas of the factory, which can potentially trigger smoke alarms.
Multiple Heat Sources & Uneven Temperature: There are high local temperatures around many machines operating at high speeds, and heat alarms may make false alarms or missed alarms.
CO in many ways:Injection molding, poor ventilation, transformer room, machining area and chemical reactions may be producing the CO. We need to analyze the data and reduce false alarms.
Factory Production no stop:The system’s installation must not affect normal production. Wiring and alarms installation minimize production quantity.

☺️ Solutions

Differentiated detection technology Combination together: Different types of detectors are used in different areas: Photoelectric smoke detectors are used in cartons/packaging materials areas.
Heat alarms are prioritized for installation in visible fire areas where smoke may easily cause false alarms.
Smoke and CO alarms combination are used to avoid the limitations of a single detection technology.
False Alarm Resistance Design Logic: The engineers optimize MCU multi-parameter alarm signal and algorithm to filter environmental noise and photo sensor sensitivity to reduce false alarm.
Double Verification of Installation and Commissioning: Each Alarm installing location on ceilings or high walls and avoiding near ventilation openings, air conditioning vents, should have the cross-verification for installation height, airflow impact, and measured response time.
WIFI Connectivity and Remote Monitoring TUYA: The real-time alarm information upload notifications by WIFI to TUYA app, and TUYA can monitor alarms health status and remote debug alarms.

How Many Alarms

Explore how different areas are equipped with the appropriate types and number of alarms, ensuring effective fire safety across various environments.

Smoke Alarms

Following EN 54 standard (applicable to Europe) and safety rules: install one smoke alarm per 80 square meters, and separate alarms in corridors, intersections, and warehouse entrances.
3000㎡ Production area + 1500㎡ Storage areas + 500㎡ Office

40pcs smoke alarms for 3000 square meters production area
24pcs smoke alarms for 1500 square meters storage areas
8pcs smoke alarms for 500 square meters office

This project used total 72 pcs smoke detectors, the details are as follows:

30pcs CS14R Wireless Interconnected smoke alarms
42pcs SM11 Ultra-slim And Ultra-light Stand Alone Smoke Alarm

Heat Alarms

Heat treatment areas + Wave soldering + Reflow soldering + Injection molding room + Electrical equipment rooms

The project used total 20 pcs heat alarms, the details are as follows:

20pcs Wireless Interlinked heat alarms HD11R.

Heat alarms are installed in visible fire areas where smoke may easily cause false alarms.
Normally 4pcs heat alarms per room.

CO Alarms

Transformer rooms, machining areas, + Backup power room + Areas containing gas-burning equipment

The project used total 3 pcs heat alarms, the details are as follows:

12pcs CS13R Interlinked Smoke and Carbon Monoxide Combo Detector

At least 3pcs CO detector per equipment room
With horizontal distribution across multiple floors

Custom Fire Security

20+ Years of Excellence

Learn More →

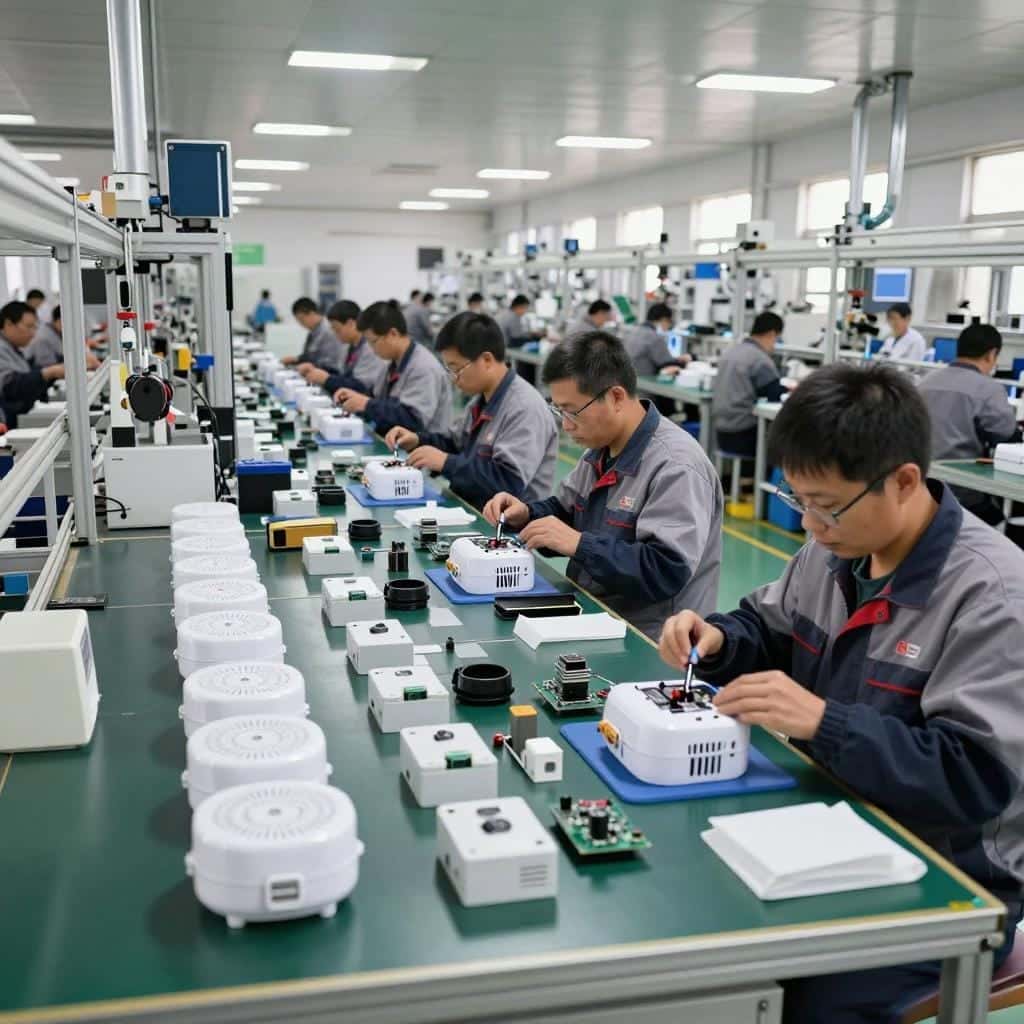

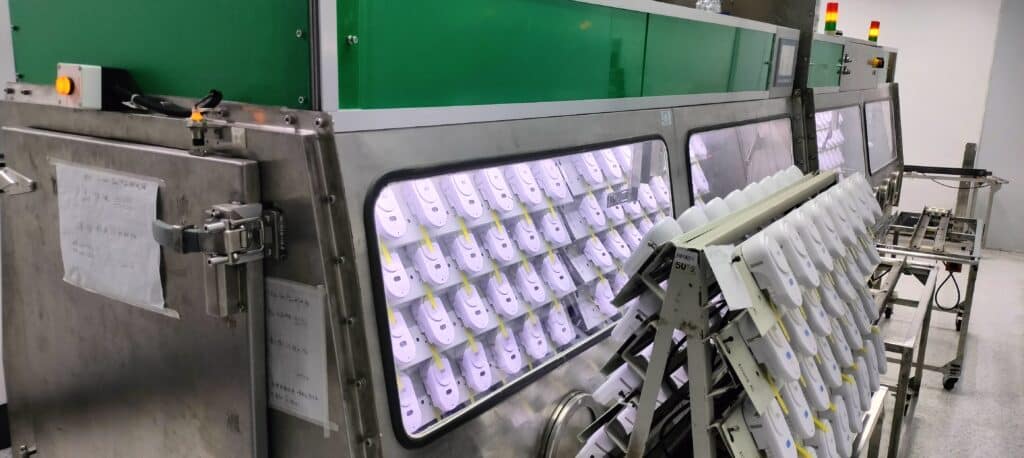

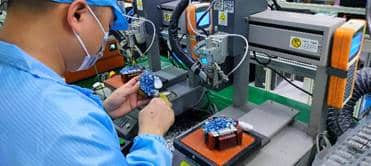

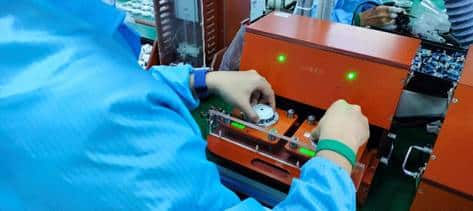

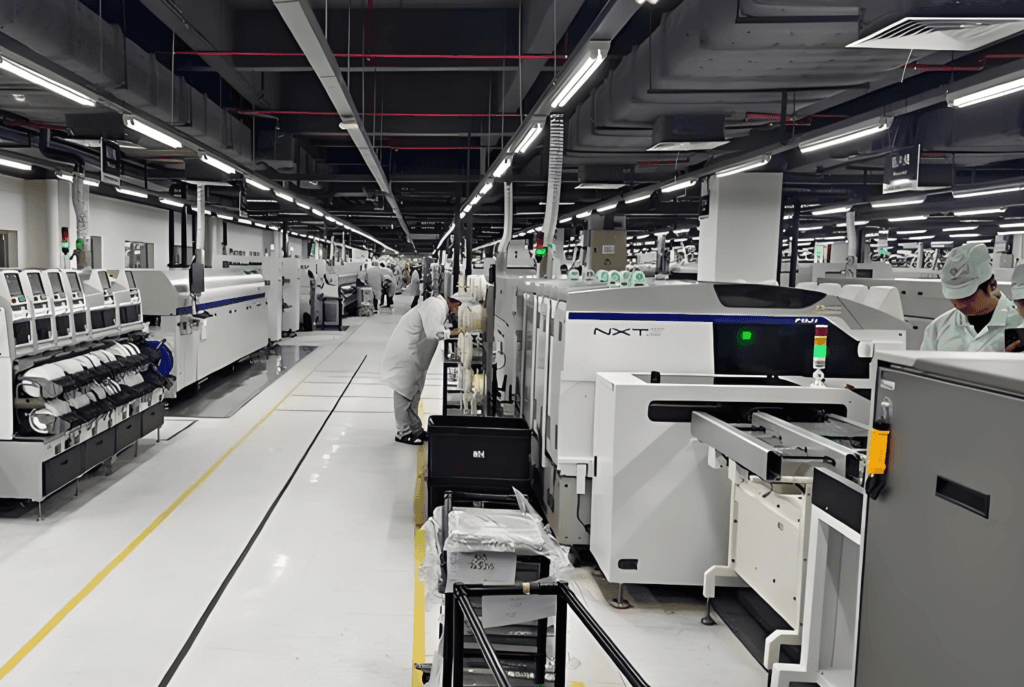

CFS® (Shenzhen Fire Security Technology Co., Ltd.), as a leading manufacturer specializing in fire safety alarms, we design and produce a comprehensive range of Smoke Alarms, CO Alarms, and Combo Alarms to protect homes and businesses worldwide.

🏭 OEM & ODM Services Available

We offer complete customization services including private labeling, custom packaging, and product modifications to meet your specific market requirements.

Choose The Right Alarms For Factory

Based on the factory’s spatial type and risk characteristics, the project will achieve fire (smoke/temperature rise) detection in all critical areas within the factory and CO detection and early warning in areas where carbon monoxide leaks may occur (such as Transformer room and machining rooms), so the project used three type alarms:
