What Is a Voice Smoke and CO Alarm & How Does It Work?

—–Voice Alerts, Fire vs CO Identification, Room Location, Multi-Language Firmware & OEM Engineering Guide

Quick Answer — What Is a Voice Smoke and CO Alarm?

A voice smoke and CO alarm combines audible alarm patterns with spoken messages to identify the detected hazard, such as smoke/fire or carbon monoxide. Depending on the product architecture, an interconnected voice alarm may also announce the room or location where the event originated.

For OEM projects, voice is not simply a speaker function. The specification should define the alarm pattern, voice message, event priority, language version, room-location logic, interconnection behavior, acoustic output, firmware version and certification scope.

Instead of relying only on a buzzer or horn, a voice-enabled alarm may provide different spoken messages for:

Fire / Smoke Alarm → Carbon Monoxide Alarm → Low Battery → Fault → End of Life → Test / Hush Status

More advanced interconnected platforms may also identify a programmed room or alarm location, such as:

“Smoke detected in the kitchen.”
“Carbon monoxide detected in the basement.”

For an OEM buyer, however, adding voice is not simply an audio-feature decision. The complete specification needs to define the alarm pattern, voice message, event priority, language version, speaker output, room-location architecture, interconnection behavior, firmware version and applicable certification requirements.

CFS currently supports sound/voice audio modes and firmware customization on selected alarm platforms, while its Combo Alarm portfolio includes voice notification as an ODM option subject to market and certification requirements.

Why Are Voice Smoke and CO Alarms Different from Standard Alarms?

A standard alarm mainly communicates through a high-output audible warning pattern.

A voice alarm adds another information layer.

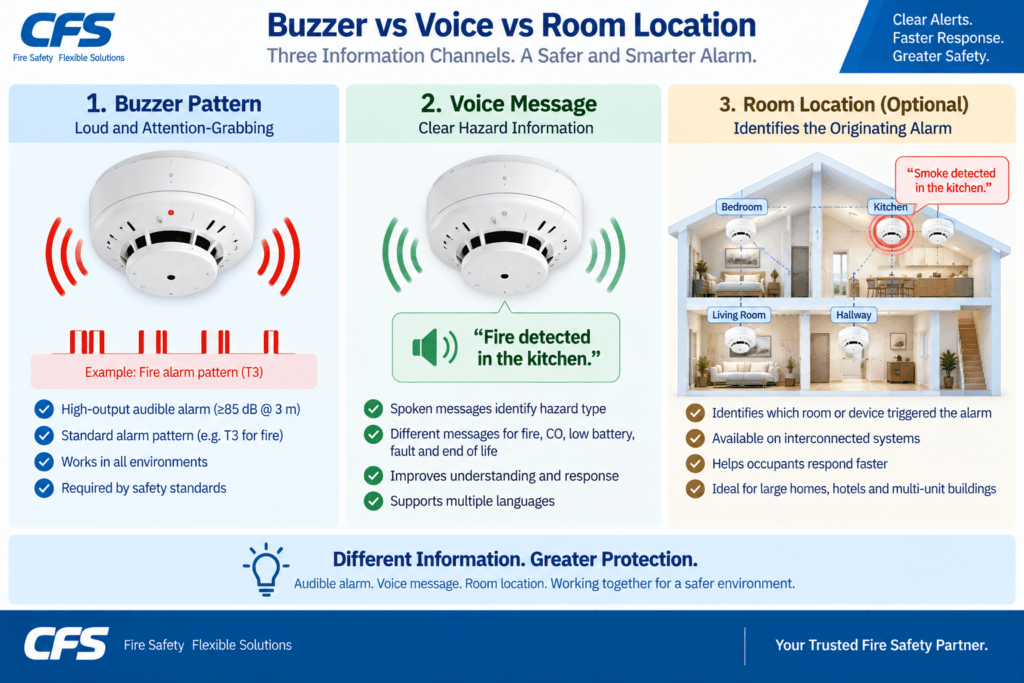

The important engineering distinction is:

Buzzer Pattern ≠ Voice Message ≠ Location Message

They are three different information channels and should be separately specified and validated.

A voice message should support the safety function of the alarm, not make the underlying hazard detection or require audible alarm architecture ambiguous.

Buzzer vs Voice: What Is the Difference?

A buzzer, horn or sounder generates the primary audible warning.

A voice circuit reproduces intelligible prerecorded or synthesized speech.

They serve related but different functions.

For example, the product could produce:

Audible Pattern → Voice Message → Audible Pattern

rather than replacing the alarm pattern entirely with speech.

CFS already has a dedicated article explaining how fire, CO, low-battery and end-of-life audible indications should be distinguished. Its current engineering guidance identifies fire and CO as different danger-alarm conditions and separates them from maintenance indications such as low battery and end-of-life.

Why shouldn’t OEM buyers specify only “voice alarm”?

Because this leaves several questions unanswered:

These parameters should be frozen before certification and mass production.

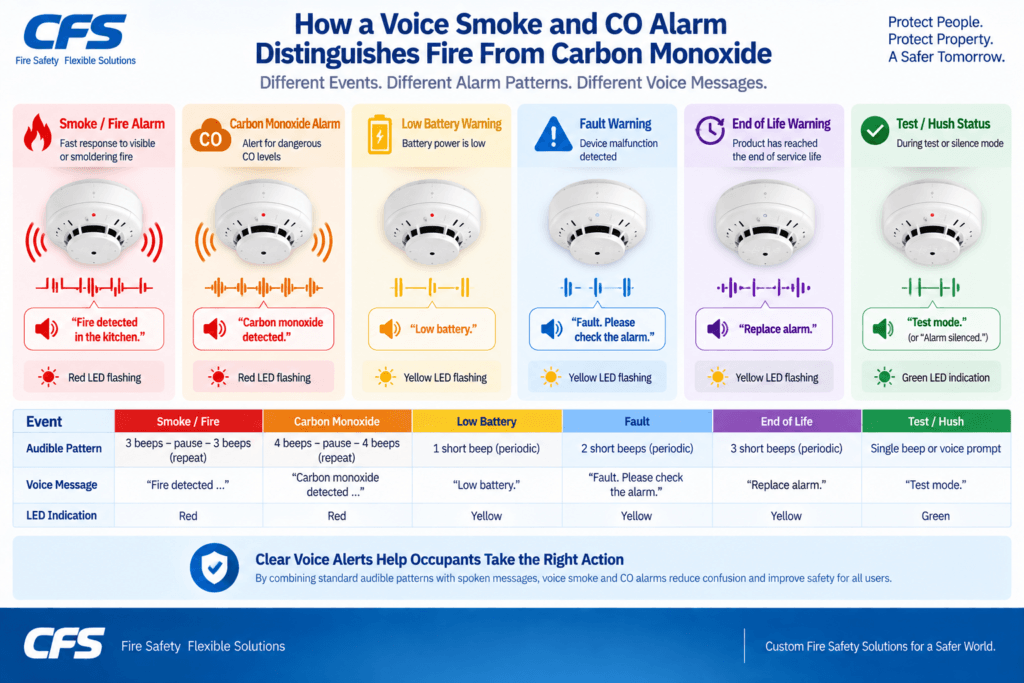

How Does a Voice Smoke and CO Alarm Distinguish Fire from Carbon Monoxide?

This is particularly important for a smoke + CO combination alarm.

The user should not have to determine the hazard by guessing what an LED means.

A well-defined interface may combine:

The exact cadence and required indications must follow the applicable product standard and the certified product configuration rather than a generic table copied between markets.

This distinction is commercially important because CFS’s current sound-logic content already separates fire, CO, low-battery and EOL conditions rather than treating every audible event as the same “beep.”

The voice message should follow the confirmed alarm state; it should not be used as the mechanism that determines the hazard type.

From an engineering perspective, the product can be divided into six functional stages:

Smoke / CO Sensor → Signal Processing → Hazard Classification → Alarm Logic → Buzzer + Voice Logic → User Notification

For a combination product, the smoke and CO channels are normally independent at the sensing level.

The smoke channel may use a photoelectric chamber, while the CO channel uses an electrochemical sensor. CFS’s current CS11/CS12 combination products use photoelectric smoke sensing together with electrochemical CO sensing.

The MCU or control circuit evaluates the input and determines the event state.

For example:

Smoke threshold reached
→ Fire event confirmed
→ Fire audible pattern activated
→ Red indicator activated
→ Fire voice message played

while:

CO alarm condition reached
→ CO event confirmed
→ CO audible pattern activated
→ Red indicator activated
→ CO voice message played

The critical point for a product manager is that the voice file itself does not determine whether an event is a fire or CO event.

That decision must come from the product’s detection and alarm logic.

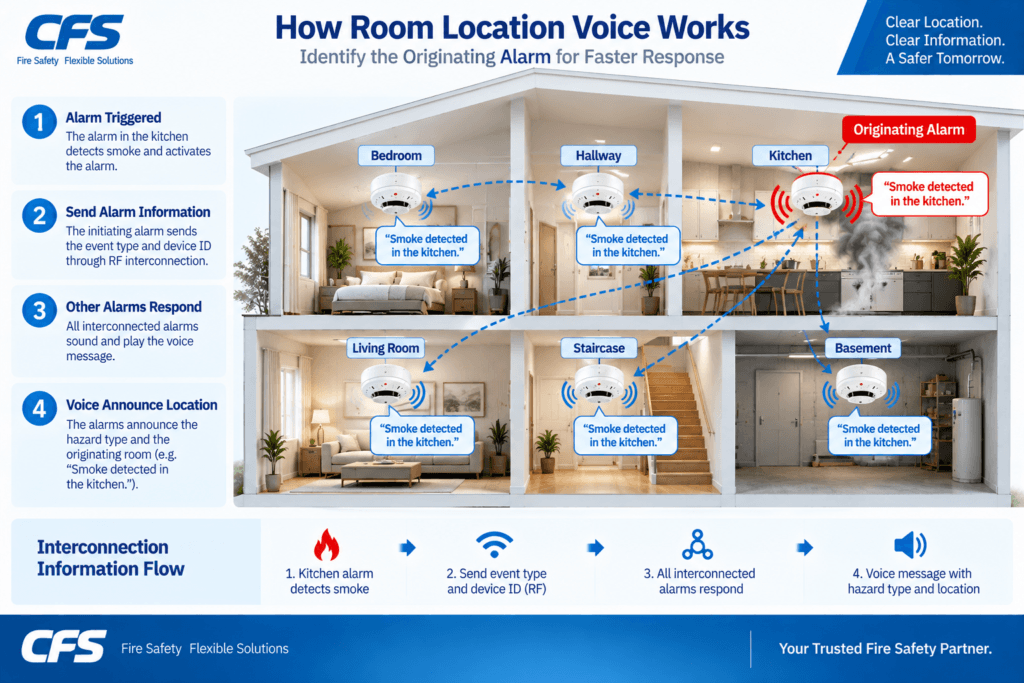

How Does Room Location Work in a Voice Smoke Alarm?

Room Assignment During Installation

Room-location announcement is a more advanced function than simple hazard identification.

Consider an interconnected system containing alarms in:

Bedroom → Hallway → Living Room → Kitchen → Basement

If a basement alarm detects smoke, interconnected alarms elsewhere may sound.

A basic interconnected product tells occupants:

There is an alarm somewhere in the network.

A location-enabled voice system may additionally communicate:

Smoke detected — Basement.

This requires more than adding another audio file.

The system needs some way to associate an alarm with a location.

Device ID and Location Mapping

Several architectures are possible.

One approach is installation-time room assignment. Each alarm is installed in the Bedroom, Kitchen, Hallway, Basement, or Living Room.

Another approach uses an APP or commissioning interface to associate each device ID with a room.

How the Originating Alarm Is Identified

The alarm network then needs to communicate enough event information for other units or the associated controller/application to identify:

Which device initiated the alarm + What hazard occurred + Which location is assigned to that device.

This creates an important engineering distinction:

Interconnection ≠ Location Identification

A product can make every alarm sound simultaneously without knowing which room initiated the event.

CFS’s current RF products already demonstrate the first architecture: interconnected alarms can propagate an alarm across paired units. For example, CFS’s RF guide describes synchronous cross-unit alarming when one paired device detects a hazard.

Room identification is an additional architecture that must be deliberately designed and validated.

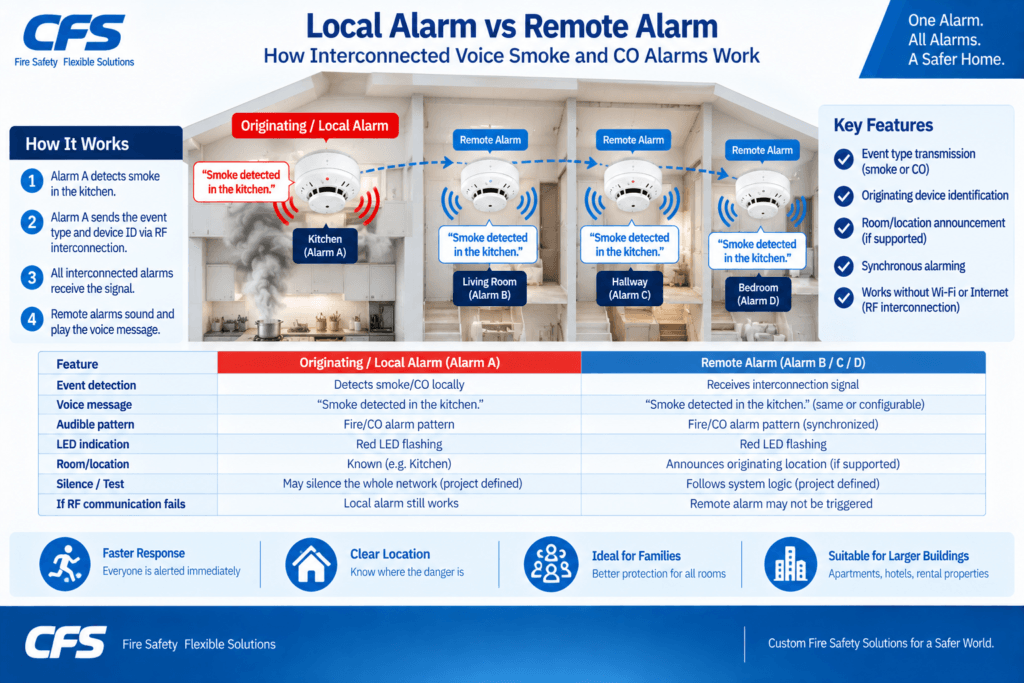

Local Alarm vs Remote Alarm: Should the Voice Be Different?

Suppose Alarm A detects smoke and Alarm B receives the RF interconnection message.

There are now two different states:

Alarm A = Originating / Local Alarm

Alarm B = Remote / Interconnected Alarm

From an engineering perspective, these states should be explicitly defined.

The specification should answer:

CFS already positions interconnection validation and RF stability testing as part of its smart/interconnected alarm manufacturing process.

For a voice-interconnected platform, that validation needs to extend to event type and voice-message propagation, not only whether all units make a sound.

What Happens If Smoke and CO Are Detected at the Same Time?

A combo alarm may theoretically encounter:

The firmware therefore needs an event-priority table.

For example:

Life-Safety Alarm > Maintenance Warning

But the precise priority between simultaneous hazard conditions and how each condition is communicated should be defined against the applicable product architecture and certification requirements.

The OEM specification should therefore include:

Event → Priority → Buzzer Pattern → Voice Message → LED Pattern → Interconnection Message → Silence Behavior

This becomes part of firmware configuration control.

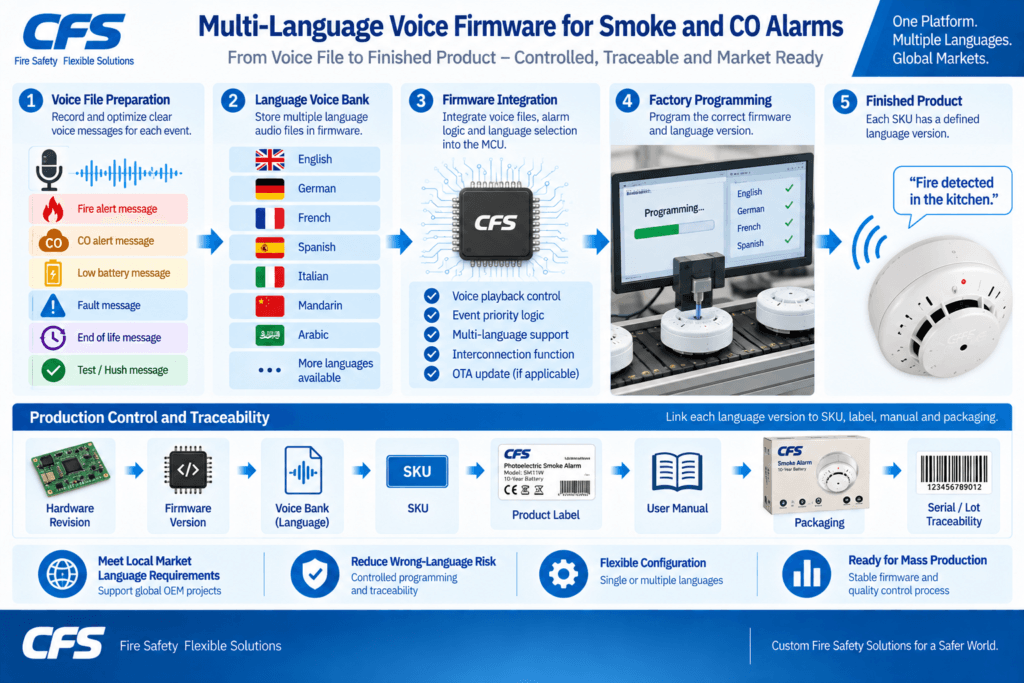

How Does Language Customization Work?

A voice alarm for the US market may require English.

A Canadian project may introduce English/French requirements depending on product and market requirements.

European projects may require different language SKUs for Germany, France, Spain, Italy or other target markets.

A Middle East project may request Arabic plus English.

CFS already states that multilingual voice firmware banks can be configured on some customized platforms, including examples such as English, German, French, Spanish, Mandarin and Arabic.

But buyers should not interpret this as:

One hardware platform + any audio file = immediately market-ready.

The selected language configuration must still be reviewed against the product’s certification, labeling, user instructions, memory capacity and production configuration.

Single-Language or Multi-Language Voice Alarm?

There are two common product strategies.

Single-Language SKU

Each SKU contains one target language.

Examples:

This can simplify user operation and production configuration, although it creates more SKUs.

Multi-Language Platform

The same hardware may store several language banks.

The selected language may be configured during manufacturing, commissioning or user setup, depending on the architecture.

This reduces hardware fragmentation but increases firmware/configuration-management requirements.

For procurement, the question should therefore not simply be:

“Can you add German?”

It should be:

“How is the German audio version controlled from approved firmware through programming, EOL verification, labeling, packaging and shipment?”

That is the difference between prototype customization and controlled mass production.

Why Language Version Control Matters in Mass Production

A wrong-language shipment is not necessarily a hardware failure. The PCB may pass every electrical test while the finished SKU is still incorrect.

For multilingual programs, the language version should therefore be linked to the approved firmware, SKU, product label, user manual, packaging and production traceability record.

Voice File Quality Is Also an Engineering Requirement

This is frequently underestimated.

A clean WAV/PCM file on a computer does not guarantee intelligible speech from a small alarm enclosure.

Final output depends on:

Audio File → Codec/DAC → Amplifier → Speaker → Acoustic Chamber → Housing Openings → Installation Environment

The housing itself changes acoustic performance.

Therefore:

Good Audio File ≠ Good Finished-Product Voice Performance

Engineering validation should be performed on the assembled product rather than approving only the original audio file.

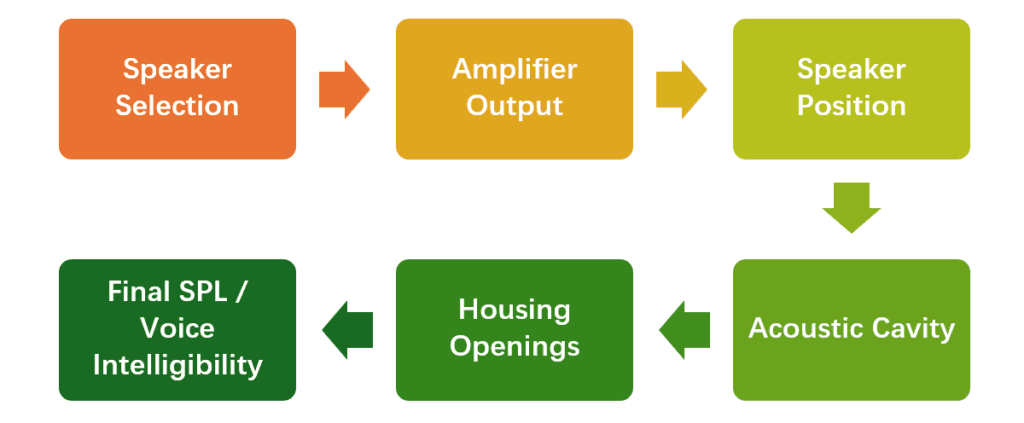

How Do the Speaker and Alarm Housing Affect Voice Quality?

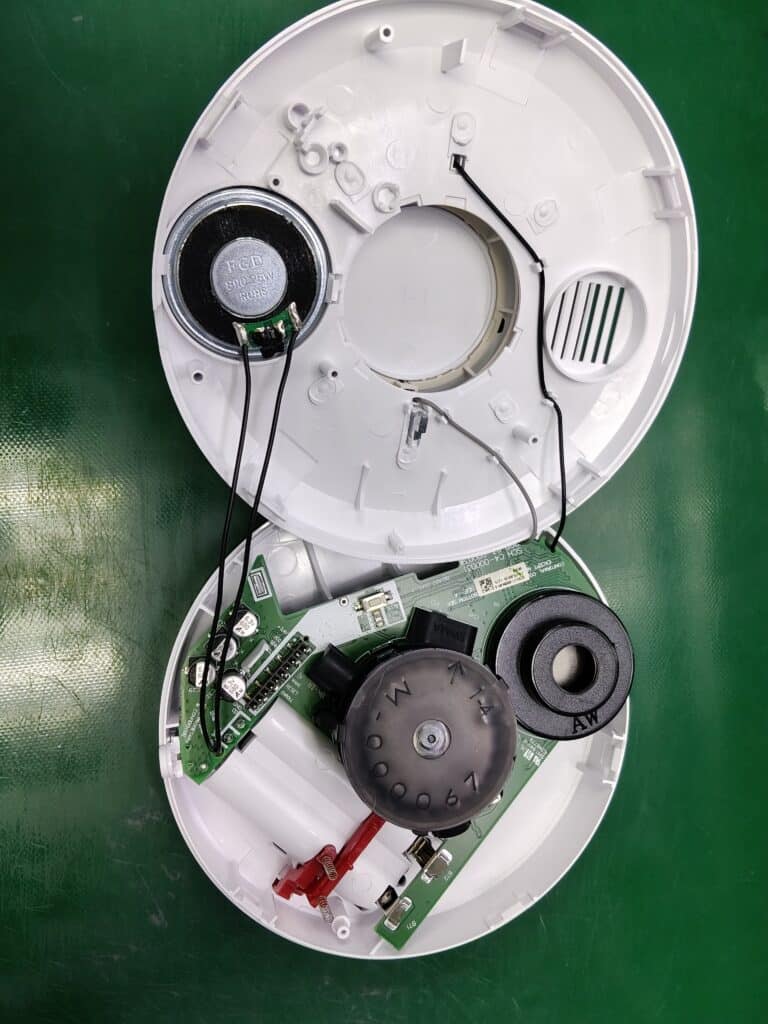

In a compact smoke or CO alarm, the speaker does not operate independently of the housing. Speaker position, sound openings, internal cavity volume, PCB placement and mechanical sealing can change the finished acoustic response.

A speaker that performs well during bench testing may produce different results after installation inside the final enclosure.

What Should Be Verified for Voice Intelligibility?

For an OEM program, CFS should recommend at least:

Speaker output consistency, speech intelligibility, clipping/distortion, message completeness, pronunciation accuracy, language correctness, buzzer-to-voice transition, repeated-message timing, low-battery operation, temperature performance, and unit-to-unit variation.

One useful production rule is:

Voice Content + Voice Sequence + Acoustic Output should all be controlled.

A unit that plays the correct audio file but produces distorted or incomplete speech should not be considered functionally equivalent to the approved golden sample.

Voice verification should consider not only SPL, but also distortion, frequency response, enclosure resonance and message intelligibility across the declared operating-voltage range.

Is 85 dB at 3 m Required for a Voice Smoke Alarm?

This needs careful wording.

Do not write:

“Voice alarms must be 85 dB at 3 m.”

as a universal statement.

Instead distinguish:

Alarm signal sound-pressure requirement

from

Voice-message intelligibility / voice output

and verify both against the applicable product standard and certified configuration.

CFS’s current CS14 and CS13 product pages, for example, specify sound output above 85 dB(A) at 3 m for those particular products.

That product specification should not automatically be converted into a universal voice-message requirement.

This sentence is worth highlighting:

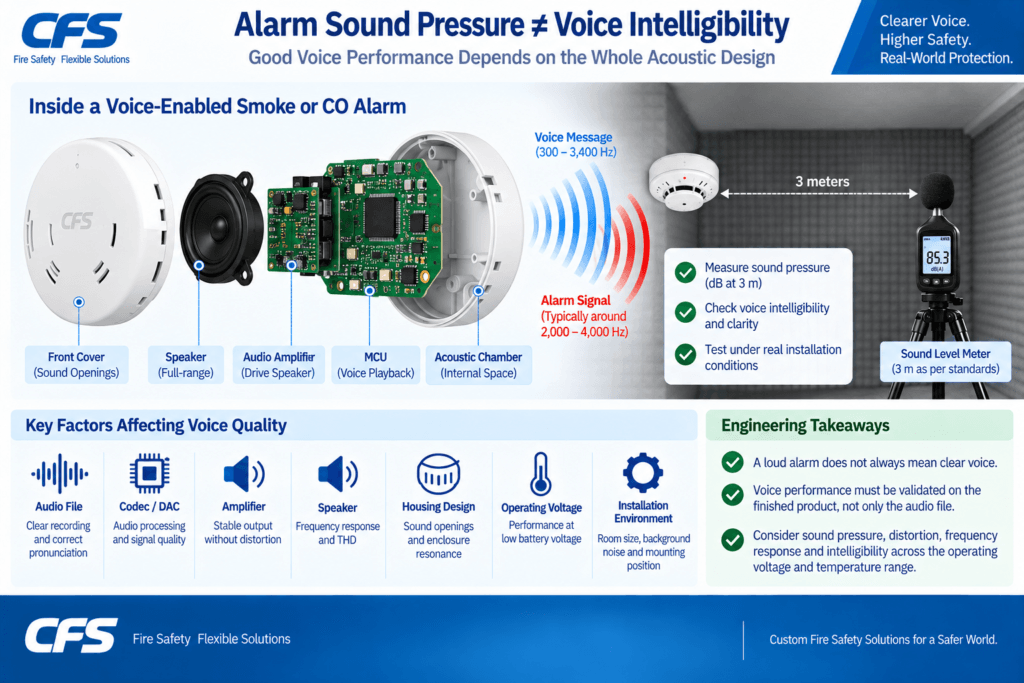

Alarm Sound Pressure ≠ Voice Intelligibility

A loud voice can still be difficult to understand if distortion, enclosure resonance, pronunciation or signal sequencing is poor.

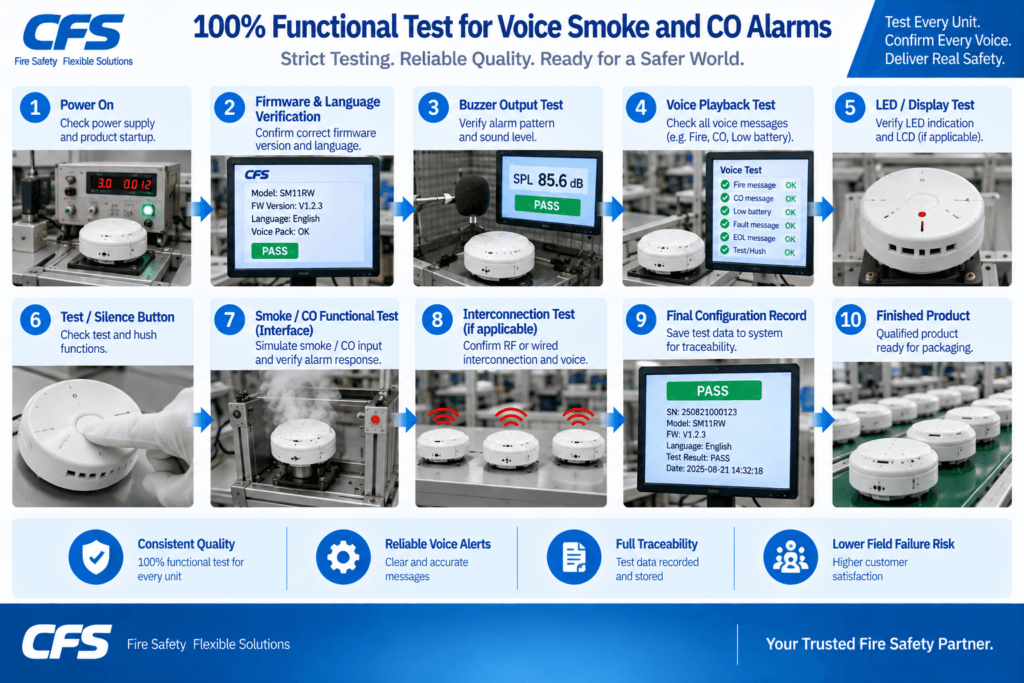

How Should Sound Pressure Be Verified?

Don’t validate only one engineering sample.

For production, establish:

Test Distance + Microphone Position + Background Noise + Alarm State + Supply Voltage + Test Fixture + Acceptance Limit

Then control these parameters consistently.

A practical validation plan can include:

Golden Sample → EVT/DVT Acoustic Verification → Pilot Run → Production EOL Audio Check → Periodic Audit

For long-life battery products, you should evaluate acoustic output across the intended operating range, especially at low voltage, not only with a fresh laboratory power source.

Does Voice Increase Battery Consumption?

Yes, it adds an additional load, but the purchasing question should be more precise:

How much energy does the complete voice-event profile consume over the declared product life?

A voice system adds some combination of:

Audio memory + MCU processing + amplifier + speaker operation

For a 10-year sealed-battery alarm, battery validation therefore needs to include realistic voice events in addition to:

standby current, sensor sampling, LED operation, user tests, alarms, low-battery warning, self-discharge, temperature derating, component aging and end-of-life reserve.

This gives us another useful engineering principle:

10-Year Battery Capacity ≠ 10-Year Voice Alarm Service Life

The entire usage profile has to be budgeted.

What Should Be Included in a Voice Alarm Power Budget?

How Does Voice Work in an Interconnected Alarm Network?

There are at least three levels of implementation.

Level 1 — Sound Interconnection

One alarm detects a hazard and all interconnected alarms sound.

Level 2 — Hazard-Type Interconnection

The network communicates whether the event is smoke/fire or CO, allowing receiving units to provide the corresponding warning.

Level 3 — Hazard + Location Interconnection

The network communicates enough information to determine:

Event Type + Originating Device + Assigned Location

This allows a receiving alarm to announce information such as the type and source location.

The buyer should therefore ask:

What information is actually transmitted across the interconnection network?

Not simply:

“Does it interconnect?”

CFS already offers RF-interconnected platforms and describes interconnection validation as part of its manufacturing/testing capability.

What Happens if Wi-Fi or the Internet Goes Down?

For products combining Wi-Fi with RF interconnection, these are different communication layers.

A properly defined product architecture may use local RF for alarm-to-alarm interconnection while Wi-Fi is used for APP/cloud communication.

Therefore:

Wi-Fi Connectivity ≠ Local Alarm Interconnection

The RF architecture needs to be evaluated independently.

This is particularly important for buyers who want voice location information, because they need to establish whether room/location data is stored locally, in the alarm network, in an APP/cloud account, or in another controller.

Voice Smoke Alarm vs Voice Smoke + CO Combo Alarm

This is also the natural place to link to CFS’s Combo Smoke and Carbon Monoxide Alarm portfolio. CFS currently offers multiple 10-year smoke + CO combo models, and its collection page specifically identifies voice notification as an available ODM option for selected projects.

What Standards Should OEM Buyers Consider?

Avoid creating a simplistic “one voice standard” table.

The applicable requirements depend on:

Target Country + Product Type + Smoke Function + CO Function + Power Architecture + Interconnection + Voice Implementation

The correct procurement workflow is:

Define Market → Define Product Architecture → Identify Applicable Standards → Freeze Voice/Alarm Logic → Confirm Certification Scope → Freeze Production Configuration

Do not take an existing non-voice certificate and assume a firmware, speaker, amplifier or voice-logic change is automatically covered.

Does Adding Voice Require Re-Certification?

Potentially.

The answer depends on what is changed and the certification scheme.

A voice feature can affect:

PCB/BOM → Speaker → Amplifier → Firmware → Alarm Sequence → Current Consumption → Battery Life → Housing Acoustic Path → User Instructions

For an OEM project, any such modification should go through formal engineering change review before mass production.

The manufacturer should determine whether the change is:

Within existing approved configuration

or

Requires supplementary evaluation/testing/certification update.

This is much more credible than promising buyers that “adding voice does not affect certification.”

Please see the work flow：

Engineering Change → Certification Impact Assessment → Required Verification → Approval → Production Release

What Should an OEM Voice Alarm Specification Include?

How Should a Voice Alarm Be Validated Before Mass Production?

Don’t stop at:

Prototype speaks correctly → PASS

Instead use:

Engineering Sample → Approved Voice File → Golden Sample → Pilot Production → EOL Verification → Mass Production

Validation should cover at least:

The key message:

Prototype Voice Pass ≠ Mass-Production Voice Consistency

How Should Voice Firmware Be Controlled in Production?

For multilingual OEM projects, firmware control becomes a supply-chain issue.

Imagine:

All three may look identical externally.

A production operator loading the wrong firmware could create a batch-level market failure even if every PCB is electrically functional.

Therefore, production records should connect:

SKU → Hardware Revision → Firmware Version → Voice Bank → Language → Label → Manual → Packaging → Serial/Lot Number

This is where traceability becomes commercially important.

CFS currently describes traceable barcode systems, PPAP/process control, OQA and 8D within its OEM manufacturing framework.

For voice products, the same philosophy should extend to voice/firmware configuration traceability.

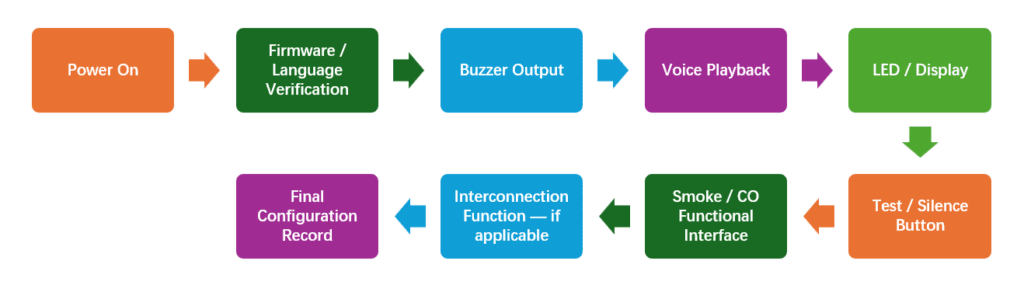

What Should Be Tested at 100% EOL?

100% Voice Alarm EOL Test

Not every certification-level acoustic or environmental test needs to be repeated on every production unit, but every unit should have a defined production functional test appropriate to the approved manufacturing control plan.

Common OEM Procurement Mistakes

How CFS Structures a Voice Smoke and CO Alarm OEM/ODM Project

A voice-alarm OEM/ODM project should begin with the system specification rather than the speaker or audio file:

Target Market → Alarm Type → Detection Architecture → Power Architecture → Interconnection → Alarm Patterns → Voice Messages → Languages → Location Logic → Event Priority → Certification Scope

Engineering can then evaluate:

Sensor Platform → MCU Resources → Audio Memory → Amplifier → Speaker → Acoustic Housing → Firmware → Battery Budget

After the architecture is frozen:

Engineering Sample → Acoustic/Functional Validation → Certification Configuration → Golden Sample → Pilot Production → EOL Test → Traceability → Mass Production

CFS’s current site supports this positioning: it lists OEM/ODM manufacturing, custom design, certification assistance and firmware customization, while its smart-alarm manufacturing pages describe functional testing, interconnection validation and traceability-related process controls.

FAQ — Voice Smoke and CO Alarms

Conclusion

For procurement teams, the right question is not:

“Does this smoke alarm have voice?”

A better RFQ question is:

“How does the product distinguish fire, CO, maintenance and interconnected events; how are voice language and room location controlled; and how do you verify acoustic performance, firmware configuration and production consistency?”

A voice smoke and CO alarm should be treated as a complete system:

Detection + Alarm Pattern + Voice + Location + Interconnection + Firmware + Power + Certification + Production Control

That is what determines whether a voice feature remains reliable after the product moves from an engineering sample into tens of thousands of production units.
