Smoke Alarm Decibel & Sound Requirements: What UL 217, EN 14604, AS 3786 and NFPA 72 Require
The acoustic performance of smoke detectors is related to compliance and personnel safety and is not simply about increasing volume. As the core sound amplification structure, the acoustic cavity directly determines the device’s sound emission efficiency, resonance effect, and decibel compliance capability, which is crucial for effectively alerting sleeping individuals.
This paper takes mass-produced fire alarms as the research object, analyzes the working principle of the acoustic cavity, explores the influence of key parameters such as cavity volume, sound outlet size, internal structure, and sealing design on sound transmission efficiency, and summarizes an optimized design scheme that can stably achieve 85-decibel-compliant mass production. This research can provide practical technical references for alarm structural design, batch quality consistency control, and improving certification pass rates.
Quick Answer: How Loud Must a Smoke Alarm Be?
UL217: ≥85 dB at 10 ft (3 m) | EN14604: ≥85 dB at 3 m | AS3786: ≥85 dB at 3 m | NFPA72: Effective occupant notification required
Smoke alarms use three consecutive beeps + a pause, repeated on a loop at least 85 dB at 3 meters. T3 helps occupants quickly recognize a fire emergency and distinguish it from other household warning signals.
Why Smoke Alarm Sound Level Matters
Alarm sound output is as important as smoke sensitivity, battery life, or connectivity features because it can help occupant quick response.
Sleeping Occupants
Alarm sound output can remind sleeping occupants early enough to allow evacuation in night fires. If the alarm cannot be heard inside a closed bedroom, it may significantly reduce available escape time.
Occupants With Hearing Loss
Hearing ability naturally declines with age.
This becomes particularly important for:
Low-frequency alarm technology is commonly used to prevent occupants with hearing impairments from hearing high-frequency alarm sounds.
Building Size and Acoustic Conditions
Alarm sound performance is influenced by building acoustics.
Factors include:
An alarm producing 85 dB in laboratory testing may be perceived differently in a furnished residential environment.
Smoke Alarm Decibel Requirements by Standard
Global mainstream fire safety standards have a unified baseline and differentiate detailed requirements for the decibel performance of smoke detectors. The EU EN 14604, the US UL 217, and the Australian AS 3786:2023 all clearly state that the core compliance standard is a sound pressure level of 85 dB(A) to 110 dB (A) at a test distance of 3 meters. 85dB is the minimum red line for product access in the international market. Based on this, there are subtle differences in the standards across different regions:
EN 14604: Requires equipment to stably meet standards under both rated and undervoltage conditions, limiting the maximum volume to no more than 110dB
UL 217: More stringent, requiring products to still meet the 85dB threshold after aging in high and low temperature environments, and that the decibel fluctuation of batch products does not exceed 3dB
AS 3786:2023: Focuses on strengthening the sound durability test and adaptability to humid and hot environments, requiring products to have no acoustic performance degradation or abnormal noise under long-term continuous operation, high and low temperature, and high humidity aging conditions
Overall, 85 dB @ 3 m is the core benchmark for acoustic cavity design and product testing. The environmental adaptability, specific operating conditions, and batch stability requirements of each standard are important control criteria for alarms to ensure acoustic compliance across all scenarios and batches.
How Manufacturers Ensure Smoke Alarms Consistently Achieve 85 dB
To address decibel fluctuations caused by injection molding deviations, assembly errors, and component differences during mass production, a full-chain control mechanism has been established at the production end, from incoming materials and process control to final inspection. This ensures consistent, stable, and traceable acoustic performance across product batches.
In the incoming material control stage, batch-sampled acoustic testing is conducted on piezoelectric buzzers to screen components that match frequency response and sound pressure output parameters, eliminating components with parameter deviations. This avoids volume issues caused by component differences from the source. Simultaneously, compatible plastic raw materials are uniformly procured, and the injection molding parameters of the outer shell are strictly controlled to ensure consistent cavity volume and sound outlet size for each batch, thereby eliminating structural defects such as injection molding deformation, burrs, and hole diameter deviations.
In the production process, standardized SOP assembly processes are adopted to unify the buzzer installation position, fitting force, and cavity pressing standards.
In the finished product inspection stage, a dedicated acoustic testing station is established, implementing a dual mechanism of full inspection and OQA sampling inspection.
Why Do Some Smoke Alarms Become Quieter Over Time?
Many buyers assume alarm volume depends only on the buzzer itself. Alarm sound output is influenced by the entire acoustic system.
A typical residential smoke alarm uses a piezoelectric buzzer consisting of:
Over time, sound output may decrease because of:
A designed alarm of 90 dB will produce below the required 85 dB threshold without controlling these factors.
Why Piezoelectric Buzzers Are Used in Smoke Alarms
Most smoke alarms and CO alarms use piezoelectric buzzers because they provide an excellent balance between sound output and power consumption.
Typical characteristics include:
Sound Pressure Level: 75–100 dB | Frequency Range: 2–4 kHz | Current Consumption: 1–10 mA | Application: Smoke & CO Alarms
A low-power piezoelectric buzzer is used to maintain sufficient energy for emergency notification throughout its service life in 10-year battery smoke alarms.
Piezoelectric Buzzer Structure and Working Principle

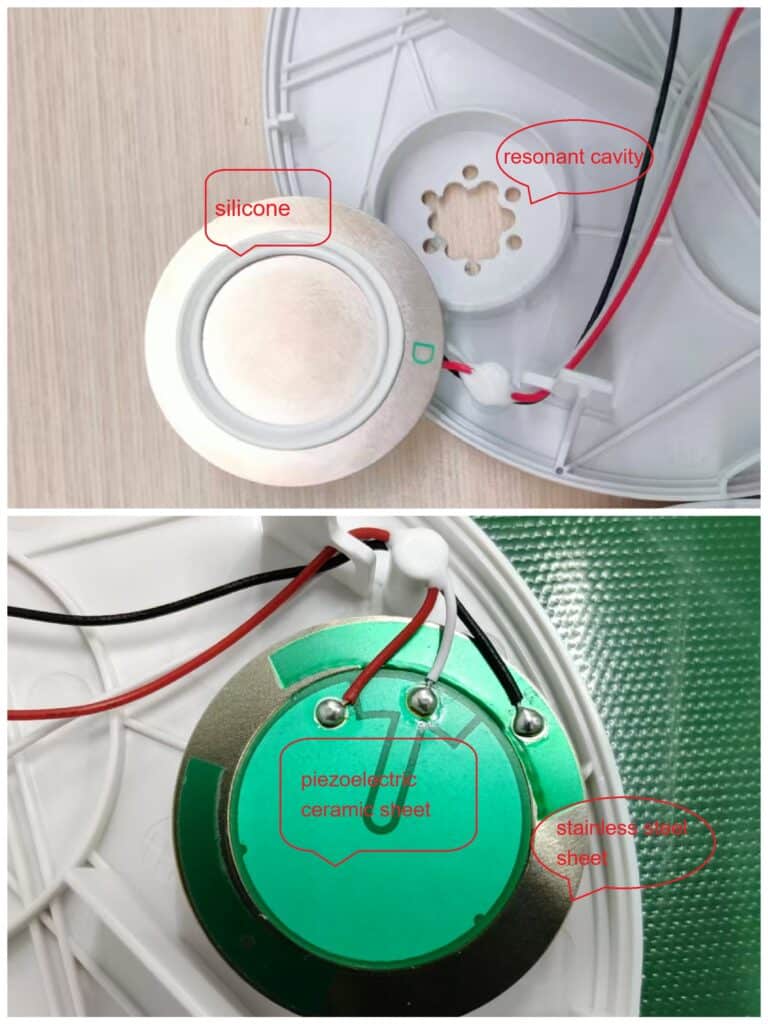

Typical Piezoelectric Buzzer Structure
There is a piezoelectric ceramic sheet, a metal diaphragm, a plastic base, and electrode lead of a piezoelectric buzzer that determines the final sound pressure level of the alarm. The buzzer element is directly attached to the alarm cover using silicone, and together with the structure on the cover, they form a complete buzzer resonant cavity in following figure.
How a Piezoelectric Buzzer Produces Sound
A piezoelectric buzzer causes mechanical deformation of the ceramic element with pulse voltage, driving the metal sheet to vibrate at high frequency and pushing air to produce sound.
Why Resonance Chamber Design Is Critical
A well-designed chamber can amplify sound pressure from the buzzer by 5~8 dBA without increasing power consumption.
Poor chamber design may result in:
How Acoustic Chamber Design Influences 85 dB Compliance
Cavity Volume and Resonance Matching
The internal volume of the acoustic cavity directly determines the device’s resonant frequency (2000–4000 Hz). A properly matched cavity space can create efficient acoustic resonance, maximizing the sound gain. If the cavity volume is too small, the resonant gain is insufficient, sound energy attenuation is severe, and the product’s sound pressure level fails to meet the 85 dB standard during testing. If the cavity volume is too large, it easily causes internal sound wave disturbance and reverberation superposition, leading to unstable sound production and large differences in decibel values among batches of products, seriously affecting mass production consistency.
Sound Outlet Size and Opening Position
The sound outlet is the only channel for sound energy to radiate outward and is the core structure governing sound transmission efficiency. If the sound outlet size is too small, it will cause sound-wave blockage and excessive internal sound-pressure loss; if the size is too large, it will disrupt the cavity’s airtightness and resonant balance, resulting in a significant decrease in the sound-amplification effect and insufficient volume. Meanwhile, the centered front-opening design ensures concentrated sound-wave directionality and stable long-distance sound transmission, while unreasonable structures such as eccentric openings or opening obstructions will cause significant sound-wave attenuation, directly leading to the product failing the decibel test and failing to meet certification specifications.
Internal Structure and Sealing Performance
The smooth inner wall and integrated closed-cavity structure effectively reduce sound-wave friction loss and diffuse reflection loss, ensuring efficient sound-energy output. Problems such as excessive assembly gaps, shell injection molding deformation, and poor cavity sealing will cause serious sound leakage, significantly weakening the cavity resonance amplification effect, causing the product to fail to stably reach the 85 dBA volume threshold. In mass production, the consistency of injection molding precision and the assembly process directly determines the sealing performance and sound stability of each product’s acoustic cavity.
Optimized Design and Compliance Verification
Based on mass-production test data, this optimized solution employs a fixed cavity volume, a standardized front-sound outlet ratio, and a fully enclosed internal cavity structure to precisely match the buzzer’s frequency response characteristics. The optimized acoustic cavity structure effectively improves sound energy utilization and significantly reduces decibel fluctuations in batch products. Actual test results show that the sound pressure level of all optimized products remains stable within the 85–92 dB range at a distance of 3 meters, fully complying with EN and UL international fire safety certification standards. Simultaneously, this structural optimization solution effectively addresses poor sound volume, reduces product defect rates, and significantly improves mass-production yield and certification stability.
Design Margin Above 85 dB
Experienced manufacturers rarely design products to achieve exactly 85 dB.
Instead, engineering targets are usually established several decibels above the certification minimum.
This design margin helps compensate for:
and supports consistent compliance throughout the alarm service life.
Key Manufacturing Factors That Affect Alarm Volume

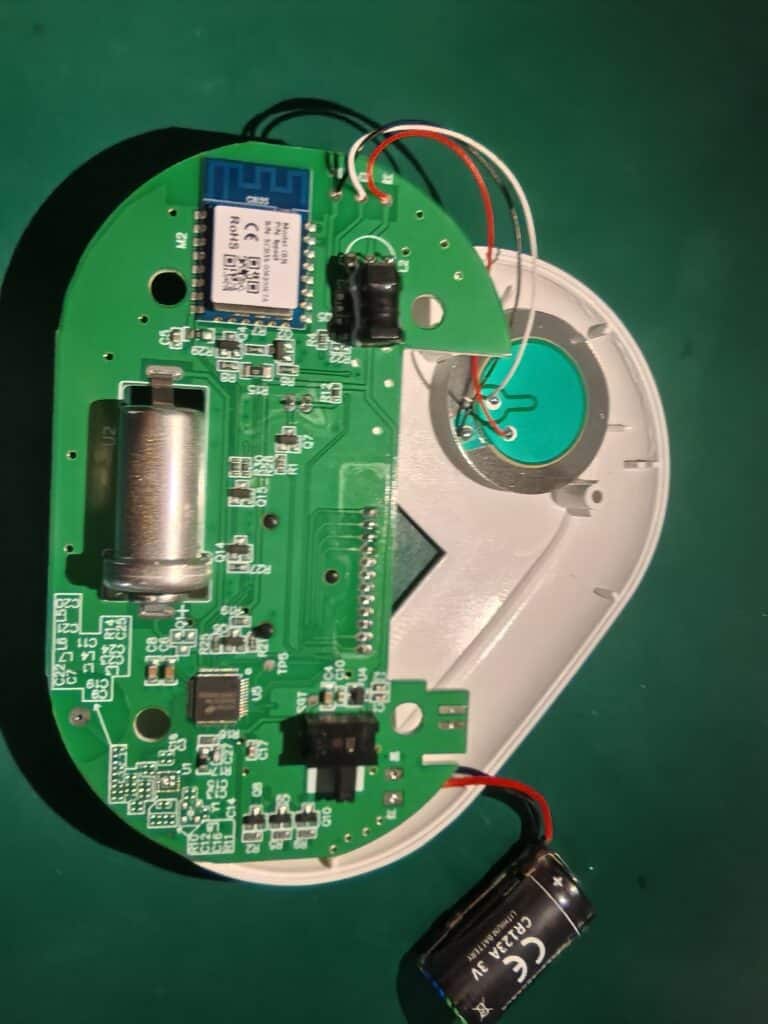

Resonance Chamber Sealing
The piezo buzzer and housing resonance cavities must form an airtight acoustic structure.
Poor sealing may cause:

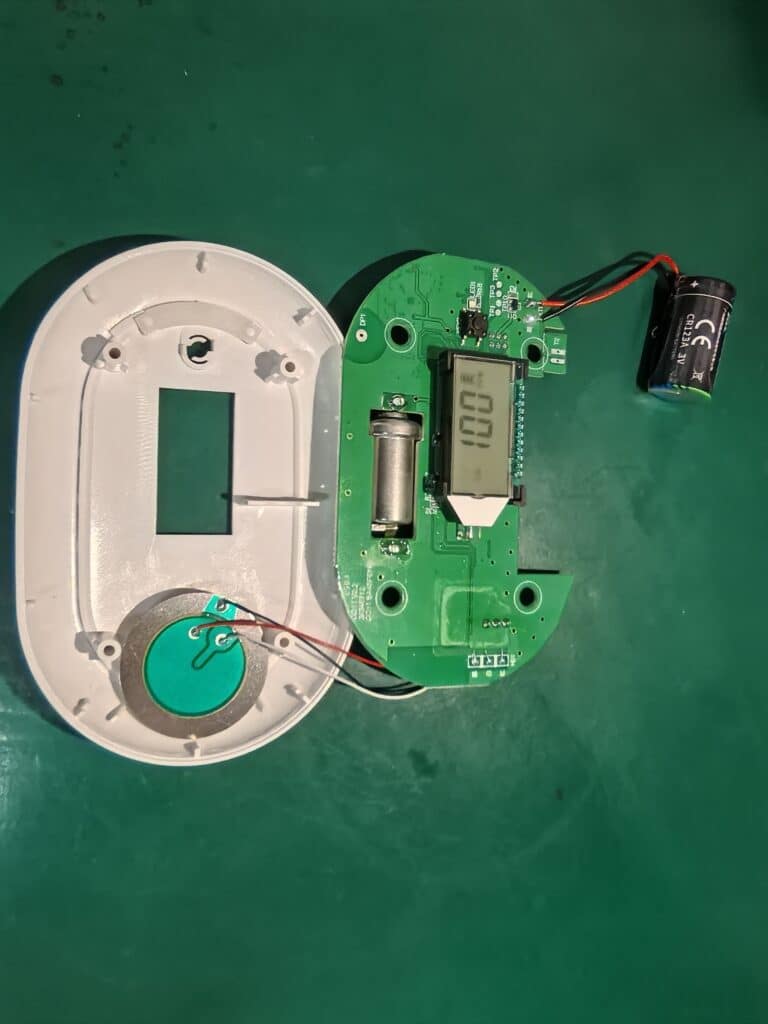

Buzzer Alignment
The buzzer must remain centered within the resonance chamber.
Misalignment can reduce acoustic amplification and decrease measured dB output.

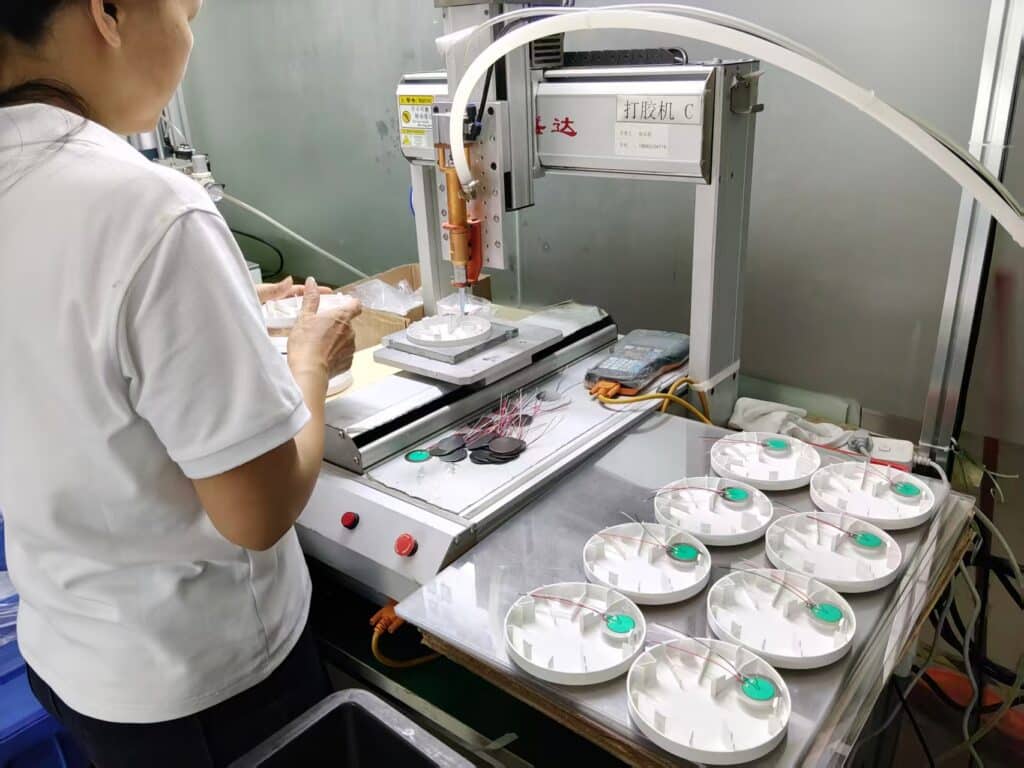

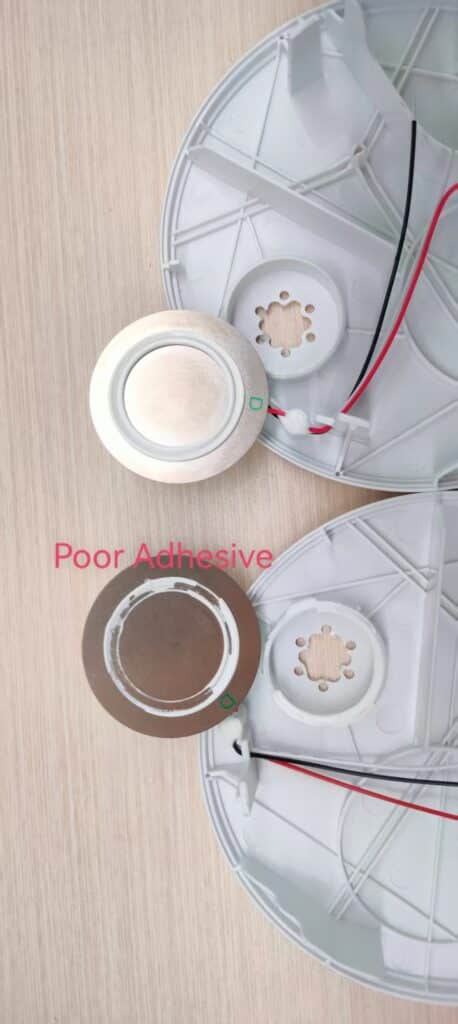

Adhesive Volume Control
The silicone adhesive used to mount the piezo element must be carefully controlled.
Both conditions can reduce sound output.

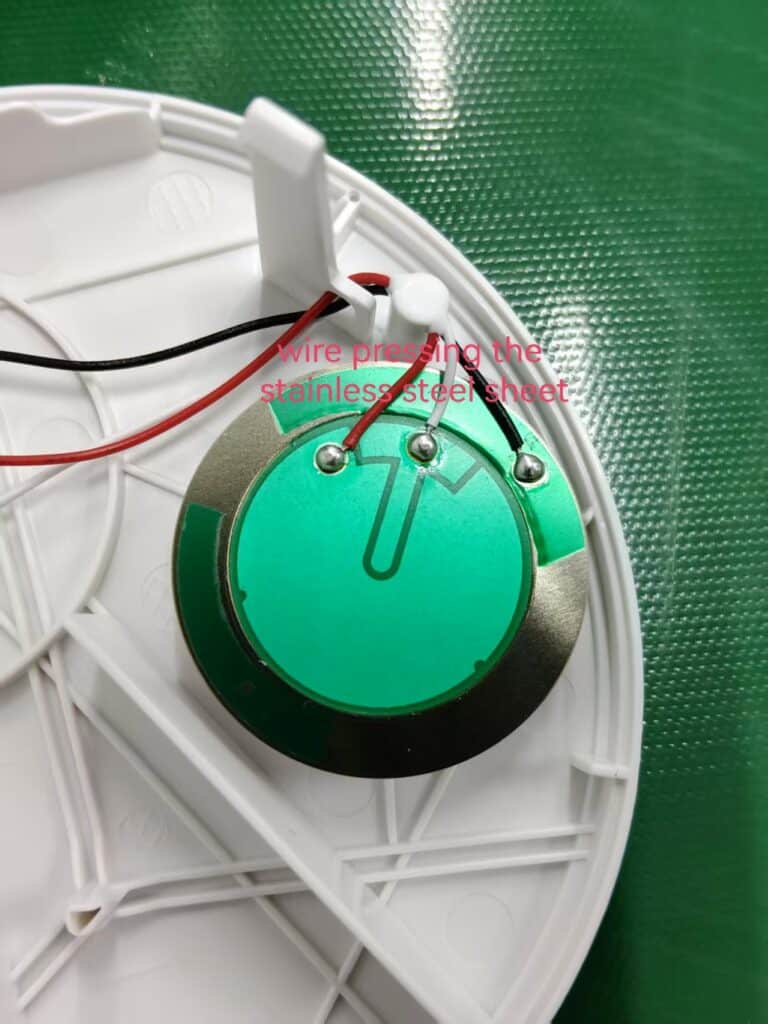

Wire Interference
Improper wire routing may press against the piezo diaphragm and restrict vibration.
This is a common assembly defect capable of reducing dB performance.
Housing Quality
Injection molding defects such as:
may alter resonance behavior and reduce alarm volume.
Battery Voltage
A smoke alarm must maintain the required nominal sound output at end-of-life conditions.
For example:
A lithium battery may decline from 3.0V to approximately 2.4V near the end of service life. The buzzer and drive circuit must still deliver compliant sound output under these conditions.
Environmental Factors Affecting Sound Output
High Temperature
Piezoelectric sound pressure decreases as temperature increases.
An alarm producing 90 dB at room temperature may drop below 85 dB at elevated temperatures if insufficient design margin exists.
Humidity
Long-term exposure to high humidity may influence:
Aging
Material aging can gradually reduce acoustic performance over many years of operation.
This is why lifecycle validation is essential for smoke alarm development.
Common Reasons Smoke Alarms Fail Audible Sound Testing
Low Battery Voltage
Low battery voltage remains one of the most common causes of reduced sound output. Although certified smoke alarms are designed to maintain alarm performance near end-of-life battery conditions, poor battery quality or abnormal power consumption may still affect buzzer drive capability.
Piezo Buzzer Aging
The piezoelectric element gradually experiences performance drift over time. Without sufficient design margin and reliability validation, aging may reduce acoustic efficiency and sound pressure output.
Acoustic Chamber Leakage
Poor housing sealing, molding defects, or assembly gaps may alter resonance behavior and reduce sound amplification.
Poor Acoustic Chamber Design
Poor acoustic chamber geometry may reduce resonance efficiency and lower measured sound output. Even when the piezoelectric buzzer itself meets specifications, poor chamber design can prevent the alarm from achieving required sound pressure levels.
Assembly Defects
Common examples include:
All can reduce measured dB output.
Environmental Stress
Extended exposure to:
may gradually affect alarm sound performance.
How CFS Validates Alarm Sound Performance
To ensure long-term compliance, CFS verifies sound performance during product development and production.
Typical validation programs include:
168-Hour Continuous Alarm Test: Verifies sound pressure stability after extended buzzer operation.
High Temperature and High Humidity Testing
Test Conditions:
Used to evaluate long-term acoustic stability.

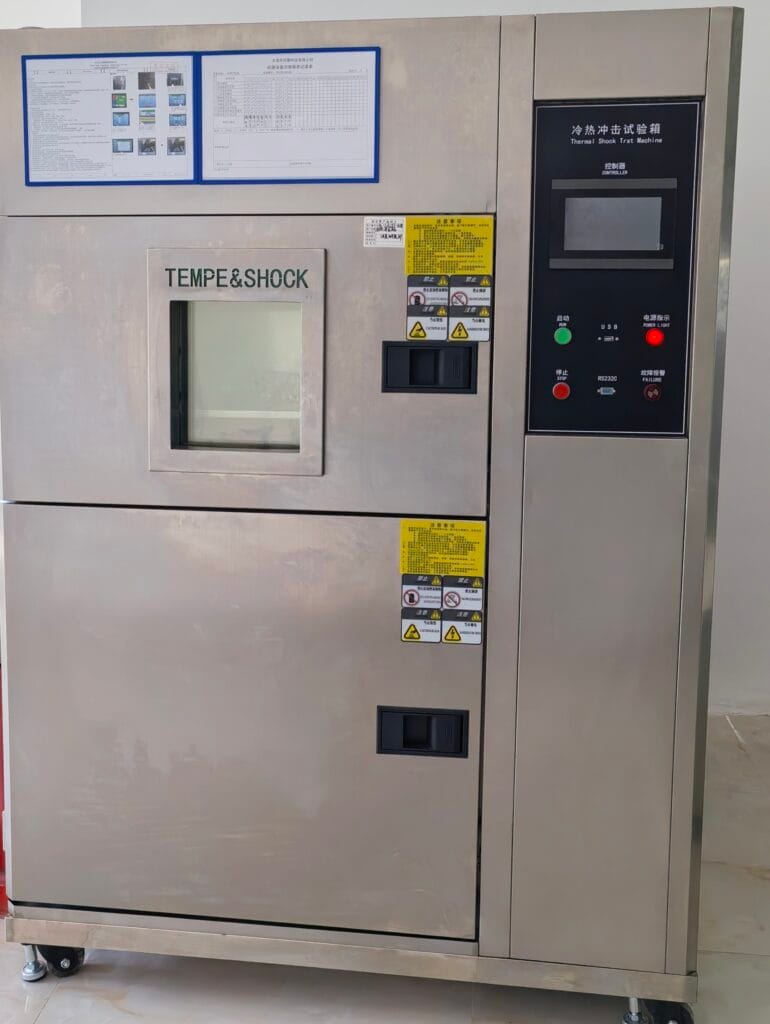

Thermal Shock Cycling
Test Range:
Used to confirm sound output consistency across environmental extremes.
Design Margin Verification
Rather than targeting exactly 85 dB, engineering targets are typically established above certification minimums to provide safety margin against aging and environmental variation.
100% Sound Output Verification During Production
For OEM projects, sound output verification should not rely solely on design validation.
CFS production programs combine:
This approach helps ensure every alarm shipped maintains consistent audible performance and compliance with applicable standards.

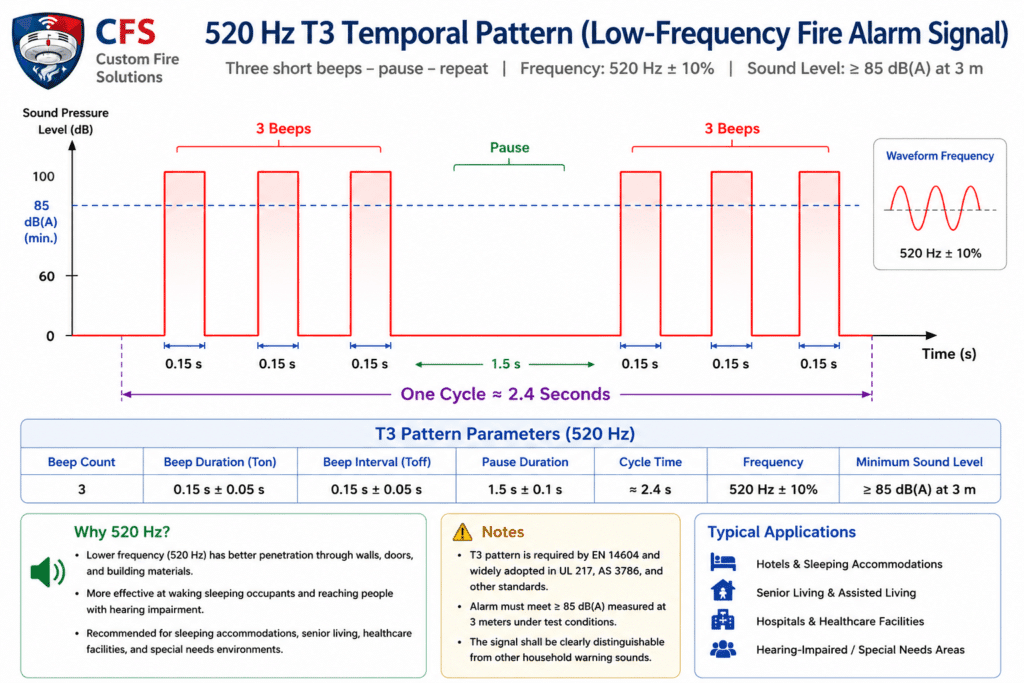

Understanding the T3 Alarm Pattern
What Is Temporal Three (T3)?
The T3 evacuation signal follows a standardized sequence:
Beep – Beep – Beep – Pause
Why T3 Is Used Worldwide
The T3 pattern has become the global standard because it improves recognition.
Benefits include:
T3 vs Continuous Alarm Signals
Fire Recognition: T3 Pattern = Excellent | Continuous Tone = Moderate
Occupant Response: T3 Pattern = Faster | Continuous Tone = Slower
Regulatory Acceptance: T3 Pattern = Widely Required | Continuous Tone = Limited
Residential Application: T3 Pattern = Standard | Continuous Tone = Rare
Engineering Insight
An 85 dB requirement appears simple on paper. In practice, achieving reliable 85 dB performance throughout a 7–10 years’ service life requires careful control of buzzer design, resonance chamber geometry, adhesive quality, battery voltage management, and environmental durability.
For OEM buyers, sound performance should be evaluated not only at certification testing but also across the entire product lifecycle.
520Hz Low-Frequency Smoke Alarms Explained
Why 520Hz Is Different
Most traditional smoke alarms generate sound around 3000Hz.
Low-frequency alarms use approximately 520Hz.
Research has shown that lower frequencies may improve the effectiveness of awakening for some populations.
520Hz vs Traditional High-Frequency Alarms
Sleeping Occupants: 520Hz Low Frequency = Better awakening performance | Traditional 3100Hz = Standard
Older Adults: 520Hz Low Frequency = Improved effectiveness | Traditional 3100Hz = Reduced effectiveness
Hearing-Impaired Occupants: 520Hz Low Frequency = Better | Traditional 3100Hz = Limited
Residential Projects: 520Hz Low Frequency = Increasing adoption | Traditional 3100Hz = Common
Where 520Hz Technology Is Commonly Used
Low-frequency notification solutions are often considered for:
In some applications, visual notification devices may also be required.
Why 520Hz Performs Better for Sleeping Occupants
520Hz is within the mid-to-low frequency range and offers superior wake-up effects for sleeping people, where the human ear is most sensitive, and it effectively penetrates indoor ambient noise.
Is 520Hz Required by Code?
EN 14604, US UL 217, and Australian AS 3786 do not designate 520Hz as the sole mandatory alarm frequency. The standards only stipulate that the alarm sound must fall within a frequency of the human ear with a minimum sound pressure level of 85 dB @ 3 m. Therefore, 520Hz is not a mandatory regulatory requirement but rather a preferred design parameter in the industry. Project designers should verify local code requirements before selecting alarm platforms.
How to Measure Smoke Alarm Sound Output
Smartphone App Testing
Smartphone applications can provide a basic indication of alarm sound level.
Advantages:
Limitations:
Professional Sound Level Meter Testing
Professional measurements should use calibrated sound level meters.
These instruments provide:
Recommended Testing Procedure
Testing steps:
Factors Affecting Perceived Loudness
Ceiling Height
Higher ceilings can reduce sound intensity reaching occupants.
Room Materials
Soft materials absorb sound energy.
Examples include:
Closed Doors
Bedroom doors can significantly reduce audible warning levels.
Background Noise
HVAC systems, televisions, industrial equipment, and outdoor traffic may mask alarm signals.
Sound Requirements for High-Risk Occupancies
Hotels and Hospitality Facilities
Occupants may be unfamiliar with building layouts.
Alarm systems must provide clear warning throughout guest rooms and common areas.
Interconnected systems are commonly preferred. Closed guest-room doors may reduce perceived alarm volume. Interconnected alarm systems and centralized fire notification solutions are commonly used to improve warning coverage throughout hospitality environments.
Hospitals and Healthcare Facilities
Patients may have:
Schools and Educational Facilities
Schools commonly integrate:
This enables coordinated emergency communication. Educational buildings frequently integrate smoke alarm notification with fire alarm control panels and public-address systems to support campus-wide emergency communication.
CFS Smoke Alarm Sound Specifications
CFS residential smoke alarm platforms are designed to support major residential compliance requirements.
Typical specifications include:
For OEM and project customers, sound performance verification forms part of routine product validation and compliance testing.
Engineering Considerations Beyond Minimum 85 dB Requirements
Many buyers focus exclusively on the 85 dB requirement. However, engineering teams typically evaluate additional factors, including:
A smoke alarm that only meets the minimum requirement during initial testing may not provide the same performance after years of operation.
Smoke Alarm Sound Compliance Checklist for OEM Buyers
Before approving a smoke alarm platform, buyers should verify:
FAQ
Q1: Why does my smoke alarm sound quieter than before?
Possible causes include:
Older alarms should be inspected and replaced if necessary.
Q2: Why Do Some Smoke Alarms Sound Louder Than Others?
Differences may result from:
Q3: Why is the sound of the smoke alarm quieter than before?
The main reasons include battery voltage decay, dust clogging the sound outlet, dust accumulation and deformation of the acoustic cavity, and aging and vibration decay of components. These problems cause sound energy loss and resonance failure, resulting in a decrease in alarm volume and abnormal sound quality, affecting the warning effect.
Q4: Does the interconnection function make the alarm easier to hear?
Yes. When an interconnected alarm is triggered, it emits a synchronized sound throughout the entire area. Multiple devices working simultaneously can create a combined sound effect, covering all blind spots in the house and compensating for the hearing blind spots of a single device. This significantly improves the overall audibility and early warning efficiency in large spaces and multi-story apartments.
Q5: Are there differentiated alarm sound standards for hotel scenarios?
Yes. In addition to meeting the basic 85dB requirement, commercial public places such as hotels must also strictly regulate the alarm rhythm, sound field coverage and linkage synchronization. At the same time, the alarm sound must not produce excessive noise pollution and must take into account both evacuation warning and suitability to the public environment.
