AS 3786:2023 is not a simple revision, but a structural upgrade. For Australian smoke alarm suppliers, AS 3786:2023 should be treated as a new design input, not only as a certificate update. It expands the Australian smoke alarm standard from the traditional “standalone smoke alarm” requirements to a more market-appropriate product system encompassing interconnected, wireless, detachable base, combined/multi-criteria detection, drift compensation, software control, and documented hardware.
Why AS 3786:2023 Is More Than a Standard Revision
Item | AS 3786:2014+A1 | AS 3786:2023 | Impact on OEM/ODM Projects |
|---|---|---|---|
Standard Basis | Australian local standard framework | Adopts ISO 12239:2021, MOD, with Australian amendments | Certification planning must align with a more international test structure |
Product Scope | Traditional residential smoke alarms | Covers modern functions such as RF interlink, detachable base and multi-criteria alarms | Product definition must be confirmed before tooling and certification |
Document Complexity | About 20 pages | About 96 pages | More test items, more documents and longer project evaluation |
Certification Logic | Basic performance testing | Performance + function + documentation + long-term stability | R&D, QA and compliance teams must work together earlier |
For OEM/ODM projects, AS 3786:2023 means the certification plan should be discussed before ID design, PCB layout, RF module selection and user manual wording, not after samples are finished.
Need to check whether your smoke alarm platform is ready for AS 3786:2023?
Send us your current product type, interconnection method, battery design and certification status. CFS engineering team can help review the gap between AS 3786:2014 and AS 3786:2023.
AS 3786:2023 vs AS 3786:2014: Key Changes for Manufacturers
The preamble to AS 3786:2023 directly lists the major changes in this version, mainly including the following 10 items: identification of interconnectable and non-interconnectable devices, identification of alarms removable from the mounting base, identification of combined and multi-criteria smoke alarms, a new response threshold table, external power requirements, updates to foreign object ingress protection, the addition of temporary disablement, RF wireless interconnection requirements, drift compensation, and changing the data clause to hardware documentation.
Why Interconnected Smoke Alarms Become a Key Compliance Focus
The 2014 version introduced the concept of interconnectable smoke alarms—an optional function—but the requirements were relatively traditional, focusing mainly on whether wired interconnection would trigger alarms and affect standalone functionality.
The 2023 version provides more specific testing for interconnectivity. For example, section 5.21 requires: during testing, the maximum number of alarms must be connected as per the instruction manual; if more than 5 are allowed, at least 5 are permitted to be connected, and the remaining number simulated with equivalent electrical loads; after triggering one alarm, all interconnected alarms should enter alarm mode within 1 minute.
Engineering Implications: For interconnected products in the Australian market, such as the SM11R4 and SM22, it’s not enough to verify that RF or interlink “fires.” It’s also necessary to verify:
Verification Points | 2023 Version Focus |
|---|---|
Maximum Number of Interconnected Units | The manual specifies the number of units; the test must cover or simulate this number. |
Local and Remote Alarms | The response time of all interconnected units needs to be confirmed. |
Alarm Silence Status | If one unit is in silence, the system must still correctly alarm after another unit triggers. |
Impact of Response Threshold | Interconnected units must not affect smoke sensitivity. |
Sound Pressure Output | Sound output testing must still meet requirements in interconnected states |
Battery Capacity | The impact of interlink load on capacity needs to be reassessed for internal power supply products. |
New RF wireless interconnection requirements Under AS 3786:2023
For Australia’s 2027 QLD interconnected smoke alarm demand, RF interconnection is not only a selling point. Under AS 3786:2023, RF range, response time, identification code, low-voltage communication and production consistency all need to be reviewed before sampling. The 2014 version focused more on traditional interconnected smoke alarms, lacking a complete independent chapter on wireless interconnection. The 2023 version added “Smoke alarms using radio frequency links — Optional function,” and set it to 4.28 in the table of contents, including response time, RF range, identification code verification, environmental requirements, etc.
AS 3786:2023 also provides RF-related test setups, such as receiver and transmitter test setups, and methods for determining transmission thresholds and reference levels.
For Australian distributors, RF interconnection should not be evaluated only by marketing range. The more important points are pairing stability, identification code security, response time, low-voltage communication and production consistency.
Project | Engineering / Procurement Review Points |
|---|---|
RF Communication Distance | Open-field marketing range should not be used as the only verification basis. Verify effective communication according to standards. |
Pairing Identification Code | Prevent accidental linkage with neighbors/adjacent rooms. |
Interference Resistance | RF modules, antenna layout, and housing materials all affect consistency. |
Low Voltage State | RF transmit power and receive sensitivity must not be out of control when the battery voltage drops. |
Mass Production Consistency | RF parameters need to be included in production testing or random checks. |

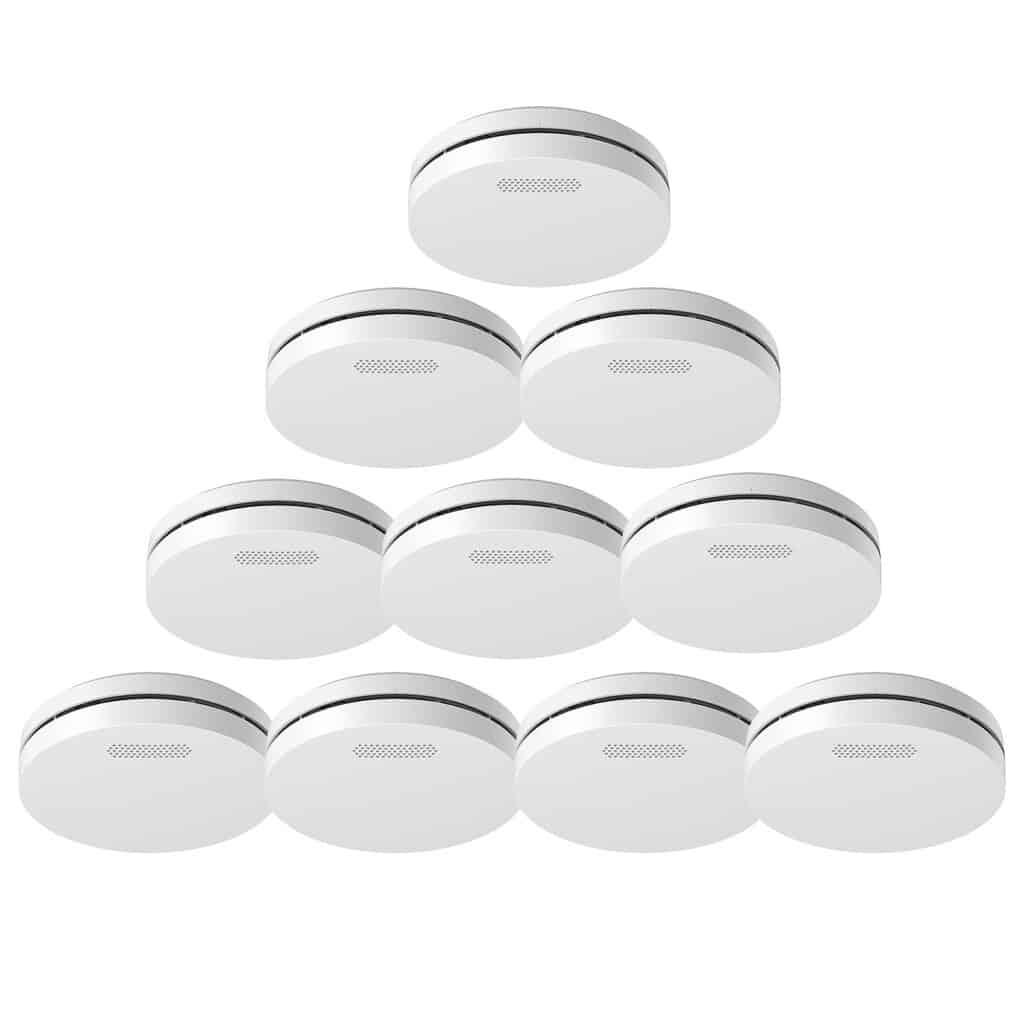

For products such as SM11R4 wireless interconnected smoke alarm, RF performance should be reviewed from pairing success rate, maximum interlinked quantity, low-voltage communication, local/remote alarm indication and production RF consistency, not only from open-field communication distance.
Developing RF interconnected smoke alarms for Australia?
CFS can help evaluate RF range, pairing identification code, response time, low-voltage communication, antenna layout and mass production RF consistency for AS 3786:2023 related projects.
Combined and Multi-Criteria Smoke Alarms Under AS 3786:2023
For OEM/ODM projects, this is an important point in design. A product may include heat detection, CO detection, humidity compensation, VOC sensing or multi-sensor algorithms, but if it is sold as a smoke alarm in the Australian market, the smoke detection function still must meet the photoelectric smoke alarm requirements of AS 3786:2023.
In practice, this means the smoke channel cannot be treated as a secondary function inside a combo product. The smoke chamber, response threshold, alarm logic, buzzer/LED indication, software control, user manual and certification samples all need to be reviewed against AS 3786:2023. For procurement managers and product managers, the key question is not only whether the product has multiple sensors, but whether the smoke alarm function can remain compliant, stable and repeatable in mass production.
If the product is:
Engineering Implications: For OEM/ODM customers, the smoke testing should not be downplayed simply because the product is a combo alarm. Instead, combo products need to be addressed simultaneously.
Risk | Description |
|---|---|
Multi-sensor algorithms may affect smoke response | CO/heat/humidity should not delay smoke alarm activation. |
Non-fire sensor functions sharing buzzer/LED | Indication logic must be differentiated from smoke alarm logic. |
Increased software control complexity | Additional software documentation, state machine specifications, and failure mode analysis are required. |
Increased number of certification test samples | Multifunctional products typically require broader testing coverage, increasing the number of samples and testing cycles. |
Response Threshold Bands and Smoke Chamber Design Impact
The 2023 version adds response threshold banding requirements. The document states that smoke alarms using scattered or transmitted light should conform to one of the two response threshold value bands, corresponding to the end-of-test conditions of the test fire.
While the 2014 version also included response threshold value testing, the 2023 version strongly emphasizes using bands to define the sensitivity range.
Engineering Implications: This will directly affect the smoke chamber structure, labyrinth design, IR LED/PD angle, algorithm thresholds, and mass production calibration window.
Development Modules | Key Considerations |
|---|---|
Smoke Chamber Structure | Avoid excessively large response differences between different directions and batches. |
Optical Components | Evaluate LED light intensity attenuation and PD sensitivity drift. |
Software Thresholds | Don’t just aim for low false alarms; they must also fall within the response band. |
Mass Production Calibration | Establish correlation between smoke chamber /aerosol testing. |
Post-Aging Performance | Response thresholds must not drift uncontrollably due to dust accumulation or component aging. |
Drift Compensation and Long-Term Smoke Alarm Stability
The 2023 version adds a section on response to slowly developing fires/drift compensation. Appendix N of the standard explains the principle of drift compensation: the sensor’s output in clean air can change due to long-term factors such as dust contamination and component aging, potentially leading to changes in sensitivity and false alarms. Therefore, reasonable compensation for slow drift is necessary.
The appendix also states that if compensation enters the sensor’s nonlinear region, it may cause the actual sensitivity to drop to an unacceptable level.
For 10-year battery smoke alarms, drift compensation is not only a false alarm control function. It directly affects long-term sensitivity stability, battery life, user complaints and replacement cost.
Engineering Implications: This is especially critical for 10-year battery smoke alarms. In the past, many customers only asked about “10-year battery,” but the real challenge under the 2023 version is:
Technical Points | Risks |
|---|---|
Dust compensation | Overly rapid compensation may mask the true smoke conditions. |
Sensor aging | Aging of optical components can cause baseline changes. |
Algorithm limit | Fault indication is needed after compensation reaches its limit. |
False alarm control | Response performance cannot be sacrificed by using excessively high thresholds. |
Long-term stability | Lifetime modeling, aging testing, and software boundary management are required. |
Hardware Documentation Requirements for Certification
The 2023 version revised the original data clause and renamed it Hardware documentation. The documentation should cover product design, key components, material specifications and reliability projections.
For procurement managers and product managers, this is an important supplier evaluation point. A qualified AS 3786:2023 smoke alarm manufacturer should not only provide samples and certificates, but also support structured hardware documentation, component control, material verification and reliability evidence. Otherwise, certification review, private label approval and future mass production consistency may all carry unnecessary risk.
Engineering Impact: This means certification is no longer just about “sample testing.” Laboratories will focus more on:
Documents | Suggested Contents |
|---|---|
BOM | Key component models, specifications, suppliers, and alternative material rules |
PCB Files | Schematic diagram, PCB layout, key spacing, key test points |
Hardware Specifications | Power supply, smoke chamber, buzzer, RF, LED, buttons, interconnect circuits |
Materials Documents | Housing flame retardancy rating, insect nets, terminals, battery, label materials |
Reliability Prediction | Failure modes for LEDs, MCUs, buzzers, batteries, RF modules, etc. |
Software Specifications | State machine, alarm logic, silence, fault, low battery, EOL |
Preparing smoke alarm certification documentation?
CFS can support BOM review, PCB documentation, hardware specifications, software alarm logic, material documents, reliability prediction and private label documentation for Australian smoke alarm projects.
Impact on Existing AS 3786:2014 Certified Smoke Alarms
If the product was originally certified according to AS 3786:2014+A1, it is not simply updated the documentation when transitioning to the 2023 version. A gap analysis should be performed first, specifically checking the following.
Gap Analysis Item | Why It Matters |
|---|---|
RF interconnection | Affects response time, pairing code, RF range and low-voltage communication |
Detachable mounting base | Requires clear identification and functional verification |
Temporary disablement / silence | Must not compromise alarm safety logic |
Drift compensation | Affects long-term sensitivity and false alarm control |
Combined / multi-criteria detection | Additional sensors may affect smoke response and software logic |
External power supply | Requires power reliability and backup logic review |
Hardware documentation | BOM, PCB, material and reliability data must support certification review |
Manual maximum interconnect number | Test setup must match declared connection quantity |
Design Recommendations for New Australian Smoke Alarm Projects
For new Australian smoke alarm projects, AS 3786:2023 should be reviewed at the design input stage, especially when the product includes RF interconnection, detachable base, silence function, drift compensation or combined/multi-criteria detection.
What Procurement and Product Managers Should Ask Suppliers
Procurement managers should know how to select an AS 3786:2023 smoke alarm supplier:
Problem Assessment | 2014 Approach | 2023 Approach |
|---|---|---|
Can the product be sold in Australia? | An AS 3786 certificate is sufficient as a main selling point | Consider the certificate version, interconnectivity, RF functionality, manual, and certificate coverage. |
Is RF merely a selling point? | Most customers focus on communication distance. | Certification will focus on RF link reliability, identification code, response time, and environmental conditions. |
Is a 10-year battery life just about battery capacity? | Focus on battery brand and capacity. | Also consider drift compensation, low-power logic, and long-term stability. |
Is a combo alarm easier to sell? | The more features, the better. | More features mean more complex testing and failure modes. |
Certification Documentation Preparation | Sample + Manual | Sample + BOM + Hardware Documentation + Software Logic + Reliability Prediction |
CFS OEM/ODM Recommendations for AS 3786:2023 Projects
Compared to AS 3786:2014+A1, the core change in AS 3786:2023 is not a single test item, but rather an upgrade in the certification logic from “performance verification of a single smoke alarm” to “systematic, interconnected, software-based, and long-term stability verification.”
For manufacturers, the most important things to plan for are:

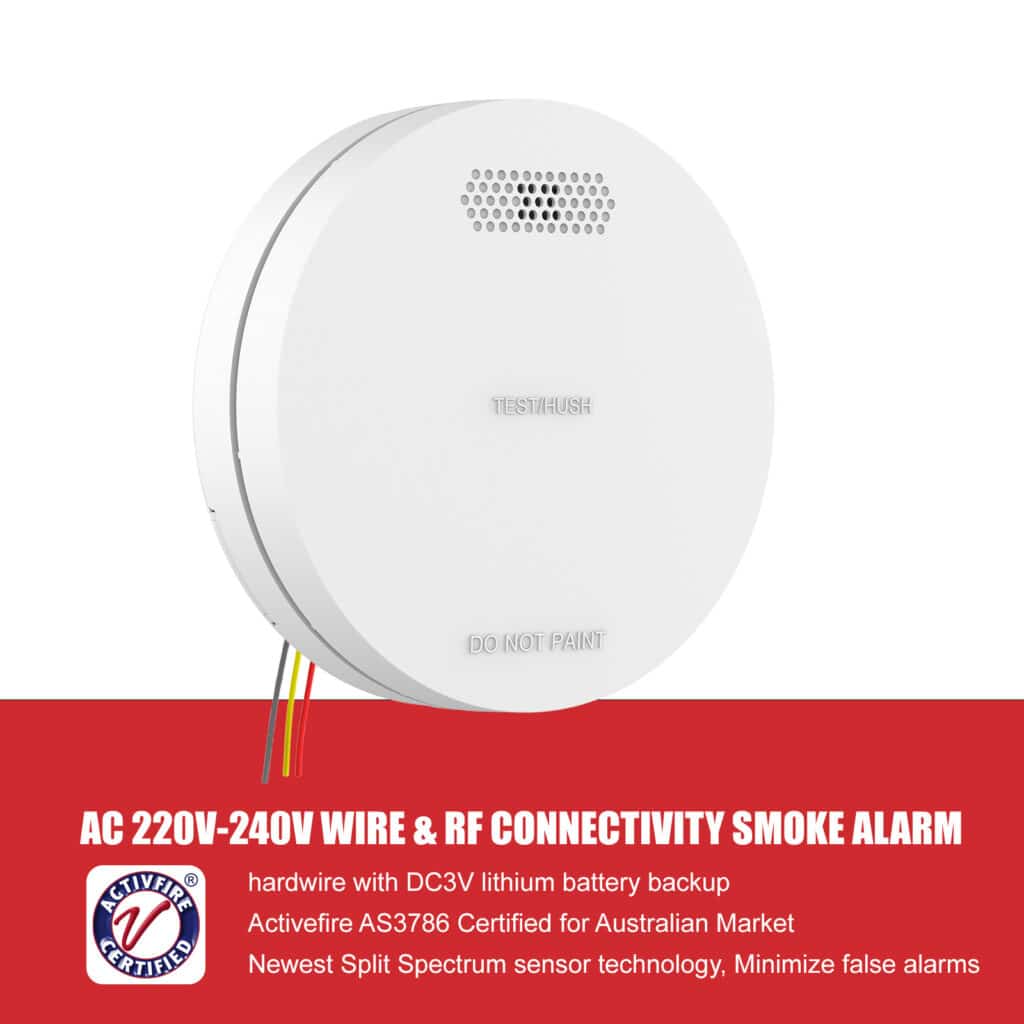

From the perspective of CFS OEM/ODM projects, if SM11R4 and SM22 are to serve Australian distributors, developers, and property clients long-term, it is recommended to create an internal standard checklist for gap analysis in AS 3786:2023 for quoting, sample confirmation, certification cycle assessment, and customer technical Q&A.
FAQ About AS 3786:2023 Smoke Alarm Certification
Summary
AS 3786:2023 is not only a new smoke alarm standard. It changes how Australian smoke alarms should be designed, documented, tested and manufactured, especially for RF interconnected, 10-year battery, hardwired and combined/multi-criteria products.
