What Is a Hardwired Interconnected Smoke Alarm & How Does It Work?

OEM Buyer Guide to Interconnect Wiring, Network Capacity, Polarity, Power Failure and Installation Responsibility

Quick Answer — What Is a Hardwired Interconnected Smoke Alarm?

A hardwired interconnected smoke alarm is powered by the mains supply (AC120V or AC230V) and uses dedicated interconnect wires with connectors to communicate with compatible alarms. When one alarm detects smoke and activates its local alarm, the interconnect output changes state and connected alarms activate their own sounders. Maximum devices, cable length, wiring requirements, and power-failure behavior are product-specific.

A typical installation contains:

Line / Live (L) + Neutral (N) + Interconnect (I)

The important distinction is:

Hardwired Power ≠ Hardwired Interconnection

A smoke alarm can be mains-powered without being interconnected. A true hardwired interconnected alarm requires both the power connection and a compatible wired communication path between alarms.

For OEM buyers, electrical contractors and project suppliers, the purchasing question should therefore not stop at:

“Is it hardwired?”

This blog shows how to ask more useful questions and get helpful solutions.

What Does “Hardwired Interconnected” Actually Mean?

Three concepts are frequently mixed together during RFQ discussions.

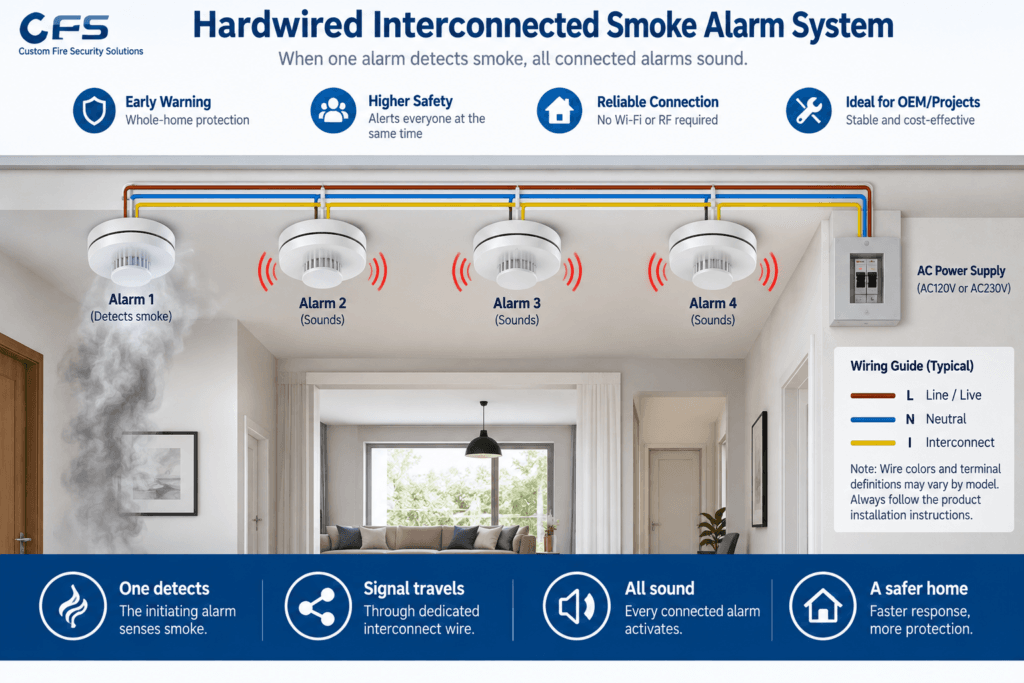

A typical residential hardwired interconnected architecture is:

AC Supply → Alarm 1 → Alarm 2 → Alarm 3 → Alarm 4

with the compatible units sharing the required mains supply and interconnect conductor.

In one Kidde installation example, the conductors are identified as Line (L), Neutral (N) and Interconnect (I/O); its instructions also require interconnected alarms to be powered from the same circuit.

The exact conductor colors and terminal definitions, however, are product-specific.

That matters for OEM projects.

Same number of wires ≠ Same interconnect interface ≠ Guaranteed compatibility.

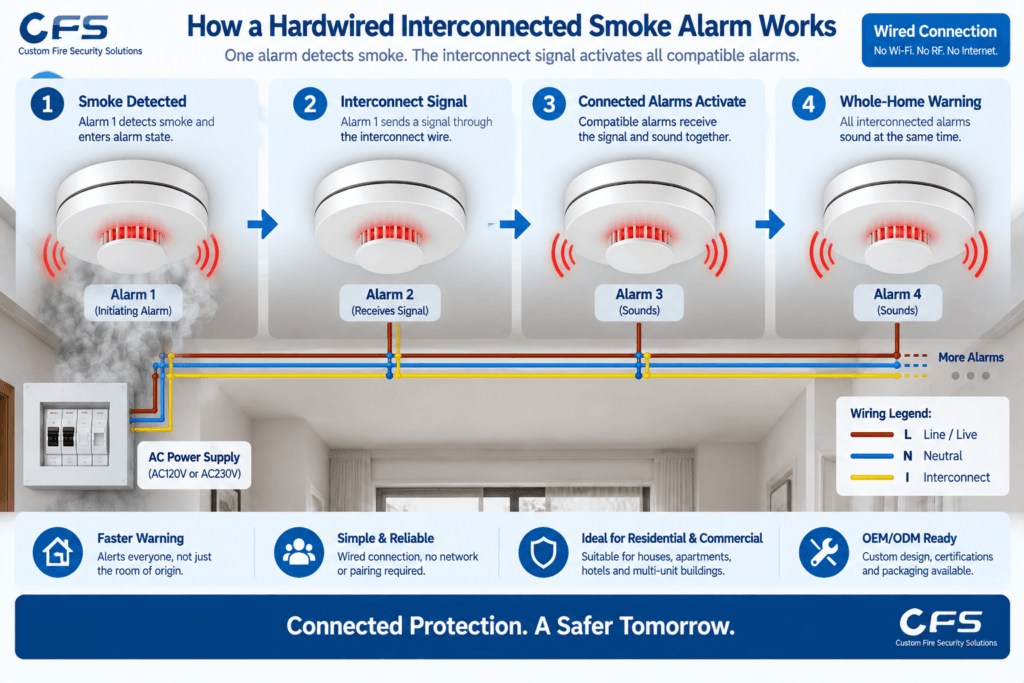

How Does a Hardwired Interconnected Smoke Alarm Work?

The architecture can be understood in four stages.

Step 1 — Each Alarm Monitors Smoke Independently

Each smoke alarm contains its own sensing and alarm electronics.

For a photoelectric smoke alarm, smoke entering the optical chamber changes the received light signal. The electronics process that signal and determine whether the smoke-alarm criteria have been reached.

The important point is that the interconnected line is not the smoke sensor.

Each alarm remains a local detection device.

Step 2 — The Initiating Alarm Enters Alarm State

When Alarm A reaches its alarm condition:

Smoke Chamber → Signal Processing → MCU / Alarm Logic → Local Sounder

Alarm A sounds local.

At the same time, electronics drive the dedicated interconnect interface into the defined alarm state.

Step 3 — The Interconnect Line Carries the Alarm State

The physical interconnect conductor connects compatible units.

Conceptually:

Alarm A → Interconnect Wire → Alarm B → Alarm C → Alarm D

The receiving circuit in each compatible alarm monitors that line.

Once the required interconnect condition is detected, the receiving alarms enter their remote/interconnected alarm state.

Step 4 — All Compatible Connected Alarms Sound

The result is whole-network warning:

One Alarm Detects Smoke → Interconnect Signal Changes → Connected Alarms Recognize Signal → Multiple Sounders Activate

This provides warning beyond the room where the initiating event occurs.

First Alert and Kidde installation documentation both show this basic three-conductor concept: mains hot/live, neutral and a separate interconnect conductor.

What Is the Interconnect Wire?

This is one of the most important sections for procurement teams because the term “interconnect wire” is often treated too casually.

The interconnect conductor is a signal path between compatible alarm units.

It should not automatically be treated as:

Its actual electrical behavior depends on the alarm design.

An OEM specification should therefore define at least:

This is much more useful than simply writing:

“Supports wired interconnection.”

Does a Smoke Alarm Interconnect Wire Have Polarity, and What Happens If It Is Miswired?

This question should be answered from the exact product wiring architecture, not by assumption.

For a typical mains-connected alarm, Line and Neutral clearly have defined electrical functions. The dedicated interconnect conductor has its own terminal/interface definition.

For example, First Alert documentation for one product identifies black as AC hot, white as neutral and orange as the interconnect conductor, and explicitly warns not to connect hot or neutral to the interconnect conductor.

For OEM evaluation, the better question is therefore not simply:

“Is the interconnect wire polarized?”

Ask instead:

What electrical state does the interconnect terminal expect, what wiring errors are protected against, and what happens if L, N and I are miswired?

Wiring Error Control Matters

The engineering review should include:

because a wiring mistake can result in:

No Interconnection / Product Damage / Nuisance Alarm / Electrical Safety Risk

Manufacturer installation instructions explicitly warn that incorrect interconnect wiring can damage alarms or prevent operation.

For an OEM buyer, Miswiring Protection ≠ Installation Instruction. Ideally, the project evaluates both hardware robustness and clear installer documentation.

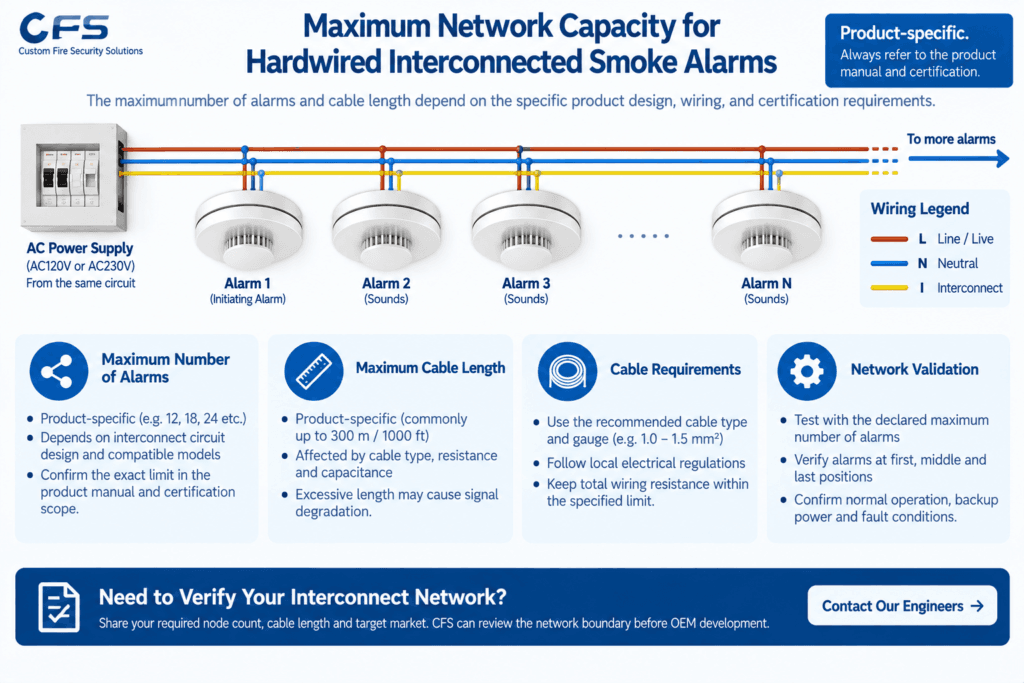

How Many Hardwired Smoke Alarms Can Be Interconnected?

There is no responsible universal number.

Network capacity depends on:

Interconnect Driver Capability + Receiver Input Characteristics + Cable Length + Cable Resistance/Capacitance + Signal Threshold + Product Architecture + Certification/Approval Scope

Real products illustrate the variation.

Kidde documentation for one UK product permits interconnection with up to 24 other compatible devices and specifies a maximum 300 m run between the first and last unit.

First Alert documentation for certain North American products specifies up to 18 compatible alarms, with no more than 12 smoke alarms, and a total interconnect-wire length below 1000 ft/300 m.

Therefore:

Maximum Node Count Is a Product Specification, Not a Generic Hardwired-Alarm Feature.

For an RFQ, request:

Maximum Devices + Maximum Smoke Alarms + Maximum Cable Length + Cable Specification + Compatible Model List + Approved Topology

Do not accept only:

“Supports multiple alarms.”

How Should Maximum Network Capacity Be Validated?

Maximum network capacity should not be verified only with two alarms on a short laboratory cable. For OEM validation, the declared node count should be tested together with the specified cable type and maximum cable boundary. Engineering evaluation should include initiating alarms at representative positions in the network and confirm that remote alarms respond correctly under normal supply, backup-power and applicable fault conditions.

Two-Unit Pass ≠ Maximum-Network Pass

Does Cable Length Affect Interconnection Reliability?

Yes.

A hardwired system removes radio-link uncertainty, but it introduces electrical installation variables.

Long cable runs can introduce:

Resistance + Capacitance + Voltage Drop / Signal Degradation + Installation Fault Exposure

The system therefore needs a defined engineering boundary.

One Kidde instruction specifies a maximum 10 Ω interconnect-wiring resistance as well as a 300 m maximum run for that particular product.

This illustrates an important OEM principle:

Physical Wiring ≠ Unlimited Wiring Distance

The supplier should be able to state how the declared maximum network was validated.

For procurement approval, request the maximum cable length together with the cable specification, declared node count and validation conditions. A distance figure without these boundary conditions has limited engineering value.

Can Different Brands Be Connected to the Same Interconnect Wire?

Do not assume so.

Even if two products both have:

L + N + Interconnect

their signal interfaces may differ.

Compatibility can depend on:

Signal Voltage + Current + Pulse/Steady-State Behavior + Input Threshold + Timing + Alarm Logic + Test/Silence Logic + Certification Scope

Kidde explicitly states for one hardwired product that it is not designed to interconnect with other manufacturers’ products unless otherwise specified. Its current Firex support information also notes cases where older interconnected products need all connected devices replaced for compatibility.

Therefore:

Same Connector ≠ Same Protocol ≠ Guaranteed Compatibility

For private-label/OEM projects, require an Approved Interconnect Compatibility Matrix.

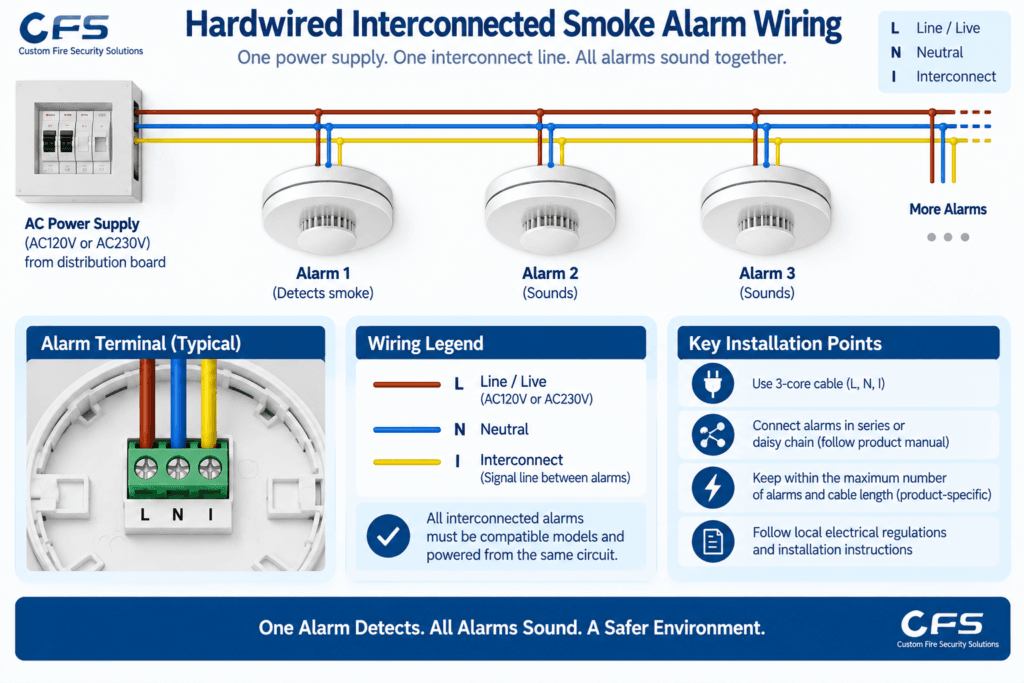

What Wiring Topology Should Be Used?

Do not design the building wiring topology from a generic internet diagram.

The permitted topology should come from the manufacturer’s installation instructions and applicable local electrical requirements.

A project drawing should identify:

Supply Circuit → Junction Box → Alarm → Interconnect Conductor → Additional Compatible Alarms

and define:

For OEM projects, the installation drawing should be treated as a controlled technical document rather than marketing artwork.

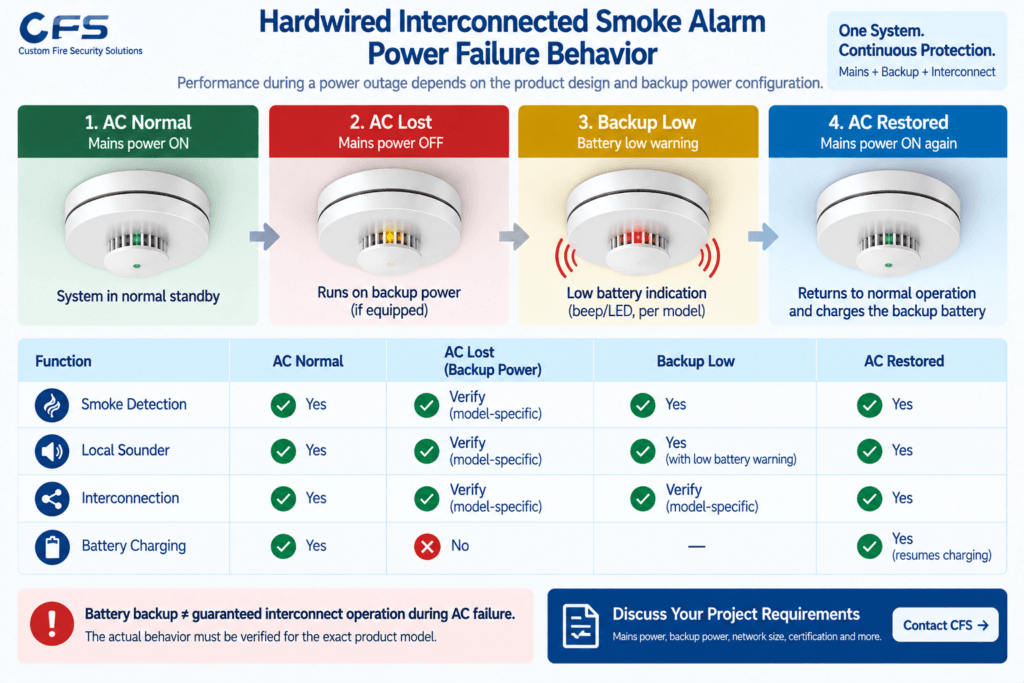

What Happens When AC Mains Power Is Lost?

This is another area where “hardwired” is often misunderstood.

A mains-powered alarm without backup power and a mains-powered alarm with backup battery do not have the same failure behavior.

The buyer should separate three questions:

That depends on whether the product has a functioning backup supply.

Again, this depends on the backup-power architecture.

This must be verified for the exact product design.

Some historical First Alert documentation explicitly distinguishes AC-only from AC/DC interconnected alarms: when mains power is interrupted, the AC/DC units continue operating, while AC-only units do not.

Therefore, avoid writing:

“Battery backup automatically guarantees full network interconnection during every power failure.”

Instead specify and test:

AC Present → Detection + Local Alarm + Interconnection

AC Lost → Backup Detection? + Local Alarm? + Interconnection?

Backup Low → Fault Indication? + Detection? + Interconnection?

This should be part of EVT and production validation.

Battery Backup ≠ Guaranteed Interconnect Operation During AC Failure

What Happens If One Hardwired Alarm or Interconnect Wire Fails?

Not necessarily—but the failure modes must be defined.

Hardwired interconnection can be highly stable because it does not depend on routers, cloud services or radio propagation. CFS likewise distinguishes wired linkage as a physical interconnect architecture independent of internet connectivity.

However, physical wiring creates different risks:

Open Circuit → Short Circuit → Miswire → Loose Terminal → Failed Interface → Loss of Supply

OEM buyers should ask:

These questions reveal far more about system robustness than the phrase “wired interconnect supported.”

For OEM projects, failure-mode behavior should be defined in the product specification rather than left to assumptions made during installation.

Hardwired Interconnected Smoke Alarm vs Standalone Hardwired Smoke Alarm

This distinction is useful for project quotations because the two products may look almost identical externally while creating very different installation and commissioning requirements.

Hardwired Interconnected Smoke Alarm OEM Specification Checklist

A hardwired interconnected smoke-alarm RFQ should not consist only of:

“Need 230V hardwired smoke alarm.”

Use a specification matrix.

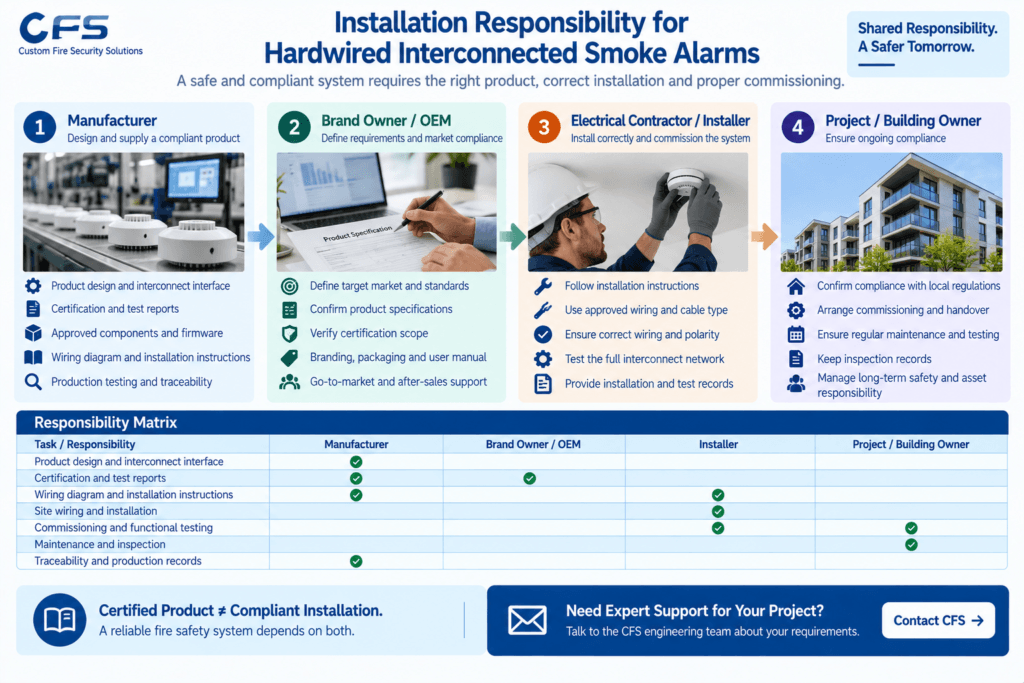

Installation Responsibility: Who Is Responsible for What?

One of the biggest business risks of “pure hard-wired interconnection” is not the smoke detector itself, but the intersection of product, building wiring, and installation responsibilities.

Manufacturer Responsibility

Manufacturers should control:

Product Design → Interconnect Interface → Approved Components → Firmware → Wiring Diagram → Compatibility List → Installation Instructions → Production Test → Traceability

OEM / Brand Owner Responsibility

The brand owner should confirm:

Target Market → Certification Scope → Label/Manual → Exact Configuration → Approved Accessories → Change Control

Electrical Contractor / Installer Responsibility

The installer shall complete the installation in accordance with the product manual and local electrical regulations.

Supply Isolation → Correct L/N/I Wiring → Cable Selection → Junction/Termination → Network Connection → Power Restoration → Functional Test

Kidde’s installation instructions explicitly require that the installation be carried out by a qualified electrician in accordance with local wiring and building requirements; First Alert similarly requires that all wiring comply with local electrical regulations.

Project / Building Responsibility

The project owner also needs to manage:

Circuit Design → Alarm Locations → Construction Coordination → Inspection → Commissioning Records → Maintenance

Therefore:

Certified Product ≠ Compliant Installation. Product certification does not automatically mean that on-site installation is compliant.

What Should Be Tested Before Mass Production?

Electrical Validation

Mains Input → Backup Changeover → Low Voltage → Interconnect Output → Interconnect Input → Miswire Conditions

Network Validation

At least verify:

1 Node → Typical Network → Maximum Declared Nodes

Simultaneously cover:

First Unit → Middle Unit → Last Unit

Cable Boundary Validation

Verification of the following statements: Cable Type → Maximum Length → Resistance Boundary → Network Load

Alarm-State Validation

cover:

Local Smoke Alarm → Remote Interconnect Alarm → Test → Silence → Low Battery → AC Loss → AC Restore

Production Validation

Finally, enter:

Engineering Sample → Certification Configuration → Golden Sample → Pilot Production → 100% EOL Test → Mass Production → Traceability

Prototype Pass ≠ Maximum-Network Pass ≠ Mass-Production Pass

What Should 100% EOL Testing Cover?

The purchasing manager should not ask:

“Do you test the alarms?”

but rather:

“Which hardwired-interconnect functions are tested on every production unit?”

It is recommended to at least assess coverage of:

For interconnects, it is especially important to verify:

TX Pass ≠ RX Pass

A device’s ability to send interconnect signals does not necessarily mean its receiving channel is functioning correctly.

A production fixture should verify both the transmit and receive paths where these functions are included in the declared 100% EOL test scope.

What Are the Most Common OEM Purchasing Mistakes?

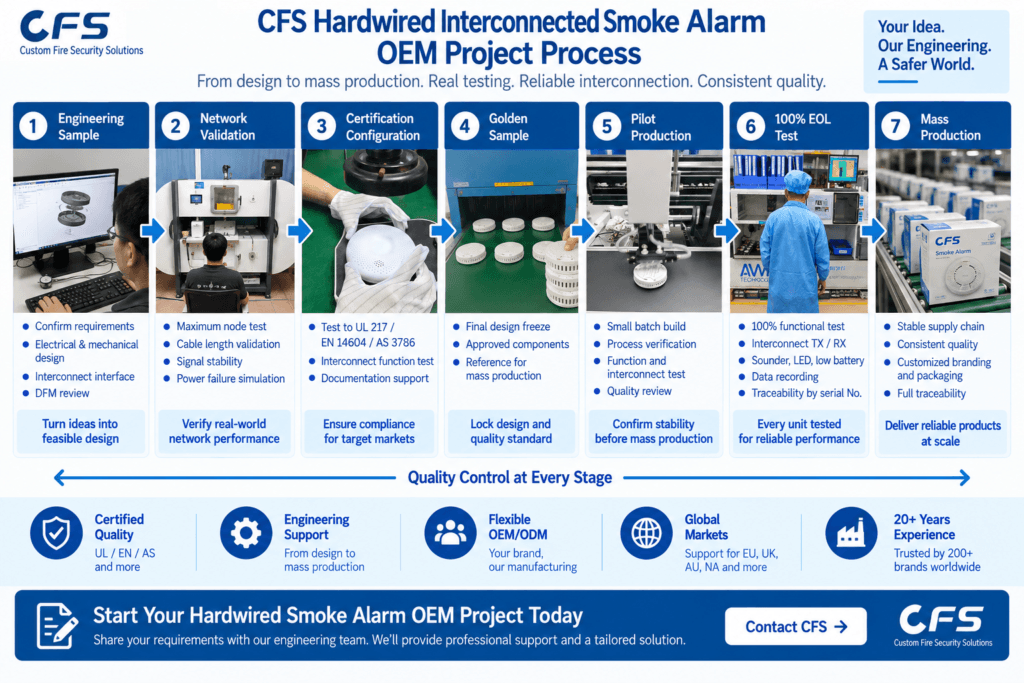

How CFS Structures a Hardwired Interconnect Smoke Alarm OEM Project

Detection

At CFS, a hardwired interconnected smoke alarm project is reviewed from the electrical and system architecture before housing, branding or packaging customization is finalized. The engineering review typically covers detection, power architecture, interconnect interface, firmware and alarm logic, certification requirements, network validation, production controls and traceability.

CFS OEM/ODM capabilities cover PCB, firmware, alarm logic, power, and communication customization, with an emphasis on 100% functional testing, interconnect validation, and traceability.

For purely hard-wired projects, CFS recommends defining the project review entry point as: Target Market → Mains Voltage → Applicable Standard → Backup Power → Interconnect Interface → Maximum Nodes → Cable Requirement → Compatible Devices → OEM Scope

FAQ — Hardwired Interconnected Smoke Alarms

Conclusion

A hardwired interconnected smoke alarm should not be evaluated simply as a smoke alarm with “one extra wire.”

From an OEM and project perspective, it is a small distributed safety network:

Detection + Mains Power + Backup Power + Interconnect Interface + Wiring + Alarm Logic + Compatibility + Installation

The most useful supplier question is therefore not:

“How many alarms can you connect?”

It is:

“Can you demonstrate that the exact approved configuration remains stable at the declared node count, cable boundary and power-failure conditions—and that the same performance is controlled in mass production?”

For projects where hardwired interconnect cabling is difficult or impractical, you can also use wireless interconnected smoke alarms and wireless fire alarm systems to extend alarm coverage without a dedicated interconnect wire.
