What Is a Fire Alarm Control Panel & How Does It Work?

—–Complete Guide for System Integrators, Project Buyers and OEM Partners

Quick Answer

A Fire Alarm Control Panel (FACP) is the central control unit that receives signals from field devices such as smoke detectors, heat detectors, manual call points and input modules, determines their status according to programmed logic, displays alarm or fault information, and controls outputs such as sounders, strobes, relays, notification circuits and building interfaces.

Depending on the system architecture, a fire alarm control panel may be conventional, addressable or networked.

For system integrators and OEM buyers, the key question is not simply how many zones or loops a panel has. The panel must be evaluated together with its device protocol, loop capacity, output loading, standby power, fault behavior, cause-and-effect logic and approved certification scope.

A Fire Alarm Control Panel Is Not Just a Control Box. It Defines the Architecture of the Fire Alarm System.

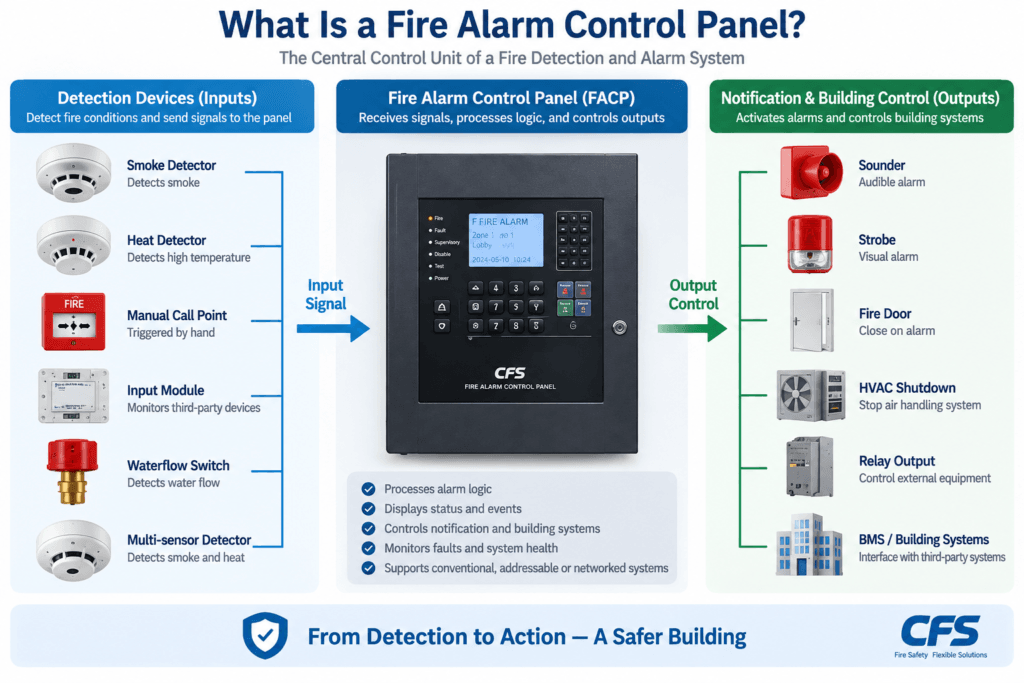

What Is a Fire Alarm Control Panel?

A fire alarm control panel is the point where field detection, system status, alarm logic, notification and selected building-control functions come together.

In a typical system:

Detection Devices → Input Circuit / Addressable Loop → FACP → Alarm Logic → Output Circuits / Modules → Notification & Building Control

For a small conventional project, this architecture may consist of several detection zones and sounder circuits.

For a larger addressable project, the panel may manage hundreds of individually identified field devices across one or more loops, together with programmable I/O modules and networked control panels.

This distinction matters during procurement.

A buyer specifying only:

has not provided enough information to define the system.

The supplier still needs to know the required protocol, device quantity, loop loading, cable architecture, sounder load, battery requirement, I/O logic, networking requirement, target certification and compatible field-device range.

What Does a Fire Alarm Control Panel Actually Control?

The FACP sits between inputs and outputs.

Typical Inputs

Depending on the system architecture, inputs may include:

Typical Outputs

The panel may control:

The exact functions depend on the approved system design and applicable code.

NFPA documentation illustrates this through an input/output logic approach connecting devices such as smoke detectors, pull stations and duct detectors with actions including notification activation, auxiliary relay operation, HVAC shutdown, panel indication and communication to supervising equipment.

This leads to an important engineering distinction:

Device Detection ≠ Panel Decision ≠ System Output

These are three different stages and should be validated separately.

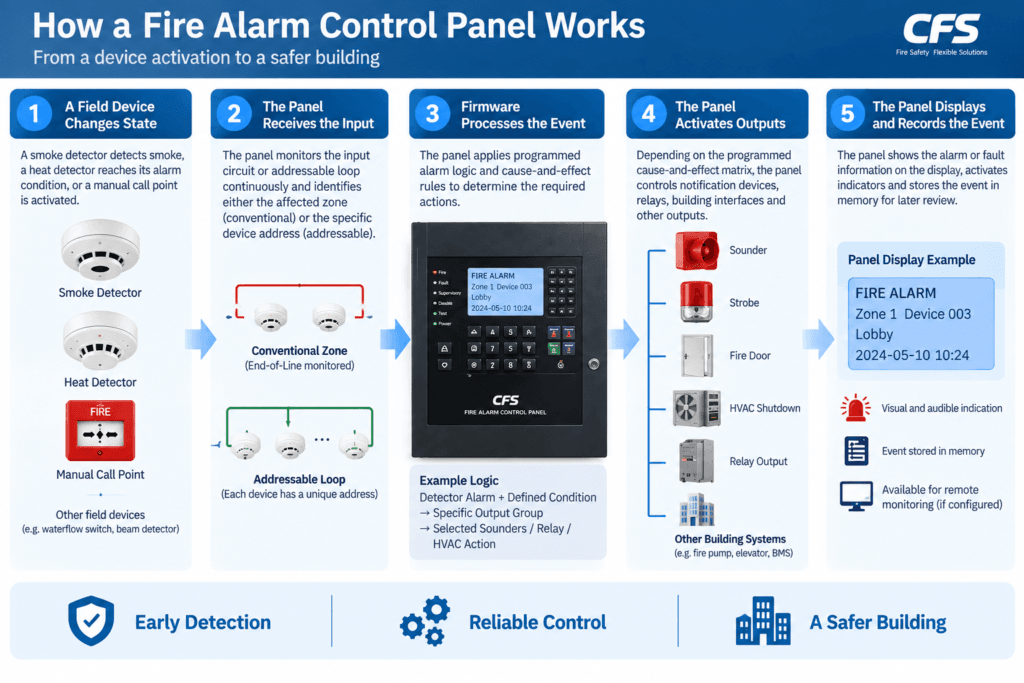

How Does a Fire Alarm Control Panel Work?

A useful way to understand an FACP is to follow one alarm event.

Step 1 — A Field Device Changes State

A smoke detector detects smoke, a heat detector reaches its alarm condition, or a manual call point is activated.

The device communicates this state to the panel through the relevant circuit or communication loop.

Step 2 — The Panel Receives the Input

The panel monitors the field circuit continuously.

Depending on system type, it may determine either:

Step 3 — Firmware Processes the Event

The panel applies its programmed alarm logic.

For a simple project:

Detector Alarm → General Alarm

For a more complex building:

Detector A + Defined Condition → Specific Output Group → Selected Sounders / Relay / HVAC Action

The required sequence should be documented rather than left to assumptions. NFPA material specifically identifies logic diagrams and input/output matrices as methods for defining and documenting sequences of operation.

Step 4 — The Panel Activates Outputs

Depending on the programmed cause-and-effect matrix, the FACP can activate notification and approved building-control interfaces.

Step 5 — The Panel Displays and Records Status

The panel may identify:

The exact terminology and functions vary with market, standard and panel architecture.

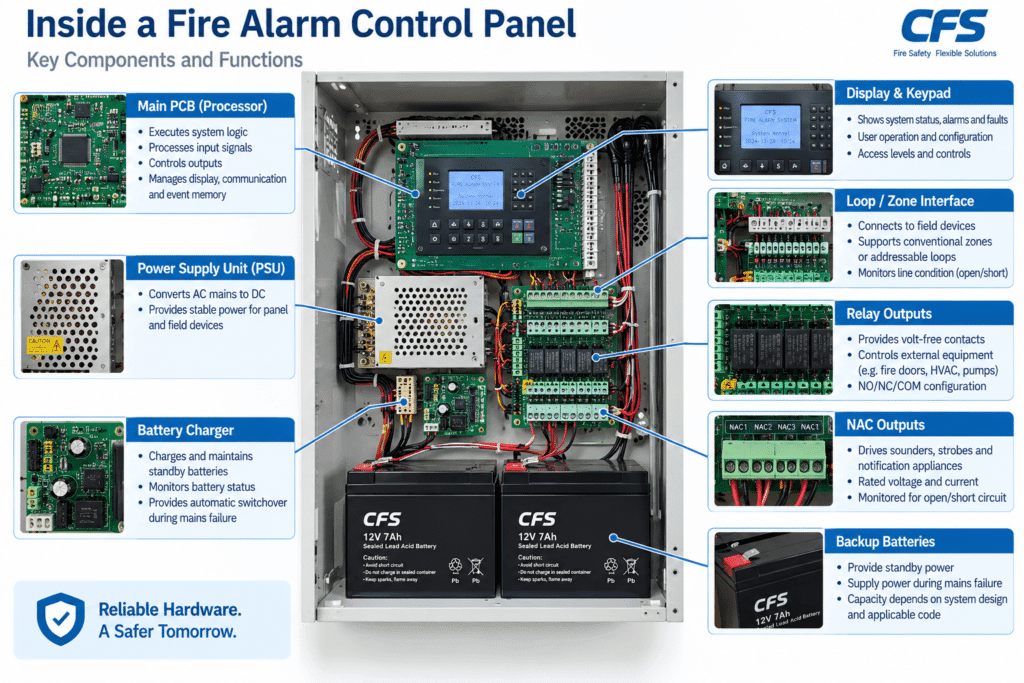

What Are the Main Parts of a Fire Alarm Control Panel?

From a manufacturing perspective, the enclosure is the least interesting part of the system.

The engineering value sits inside.

For OEM buyers, PCB, firmware and protocol should therefore be treated as controlled configuration items—not just BOM components.

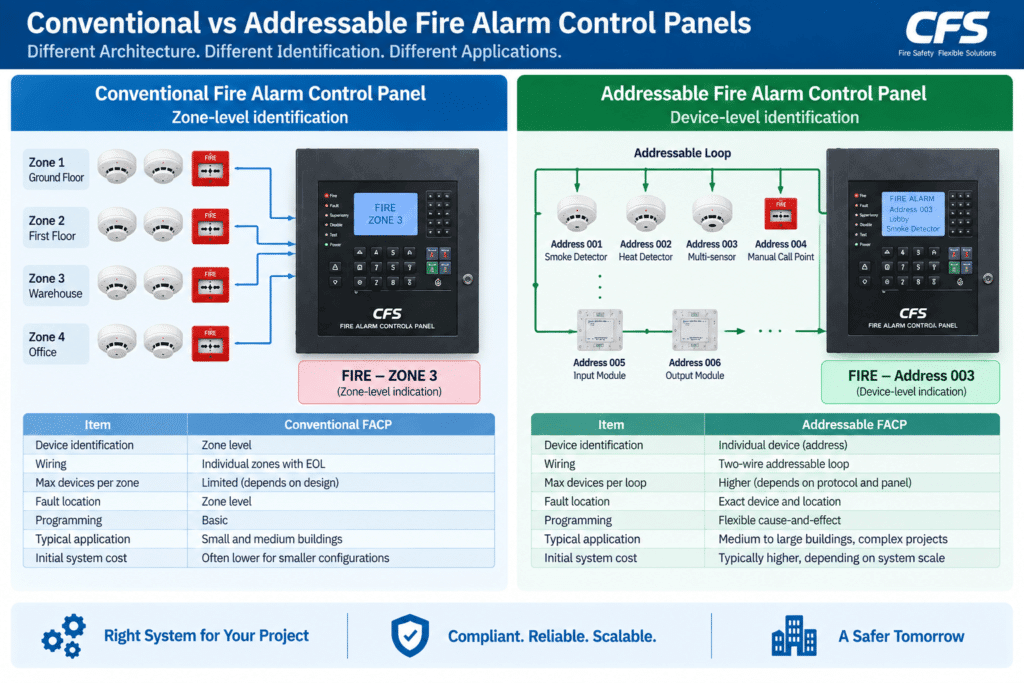

Conventional vs Addressable Fire Alarm Control Panels: What Is the Difference?

This is one of the first architecture decisions a project buyer needs to make.

Conventional Fire Alarm Control Panel

A conventional system organizes field devices into detection zones.

If a device activates, the panel generally identifies the affected zone rather than an individual detector.

For example:

This architecture is relatively straightforward and is often considered for smaller projects where device-level identification is not required.

Addressable Fire Alarm Control Panel

An addressable panel communicates with individual devices through an addressable loop.

Each supported device has an identifiable address.

Instead of:

the system can potentially identify a specific configured device/location.

This improves fault finding, commissioning and system management in larger installations.

BSI’s product certification directory itself illustrates both architectures: certified products include conventional 2-, 4- and 8-zone control equipment as well as 1-, 2- and 4-loop analogue-addressable equipment.

Conventional vs Addressable

CFS’s existing school fire-alarm guidance uses the same practical distinction: conventional panels are positioned for smaller systems, while addressable architectures offer device-level identification and greater expansion capability for larger campuses.

More Loops ≠ Automatically a Better System.

The correct architecture depends on the project.

What Is a Zone in a Fire Alarm Control Panel?

A zone is a defined area or circuit used to organize fire detection information.

For conventional systems, the relationship between detector circuits and zones is particularly important because the panel generally identifies the affected zone rather than the individual initiating device.

For procurement, ask:

Do not reduce the RFQ to:

That is a price request, not a system specification.

What Is a Loop in an Addressable Fire Alarm System?

A loop is the communication and power path between an addressable panel and compatible field devices.

Depending on the platform, one loop can contain combinations of:

Smoke Detectors + Heat Detectors + Manual Call Points + Input Modules + Output Modules + Sounder Devices

But the maximum device quantity should never be assumed from the word “addressable.”

It depends on:

Protocol + Loop Current + Device Consumption + Cable Characteristics + Isolator Architecture + Panel Firmware + Certification Scope

The declared loop capacity should not be treated as the usable project capacity until device loading, cable conditions and the approved configuration have been checked.

A panel may have a declared device capacity, but engineering still needs to calculate the actual loop loading and project configuration.

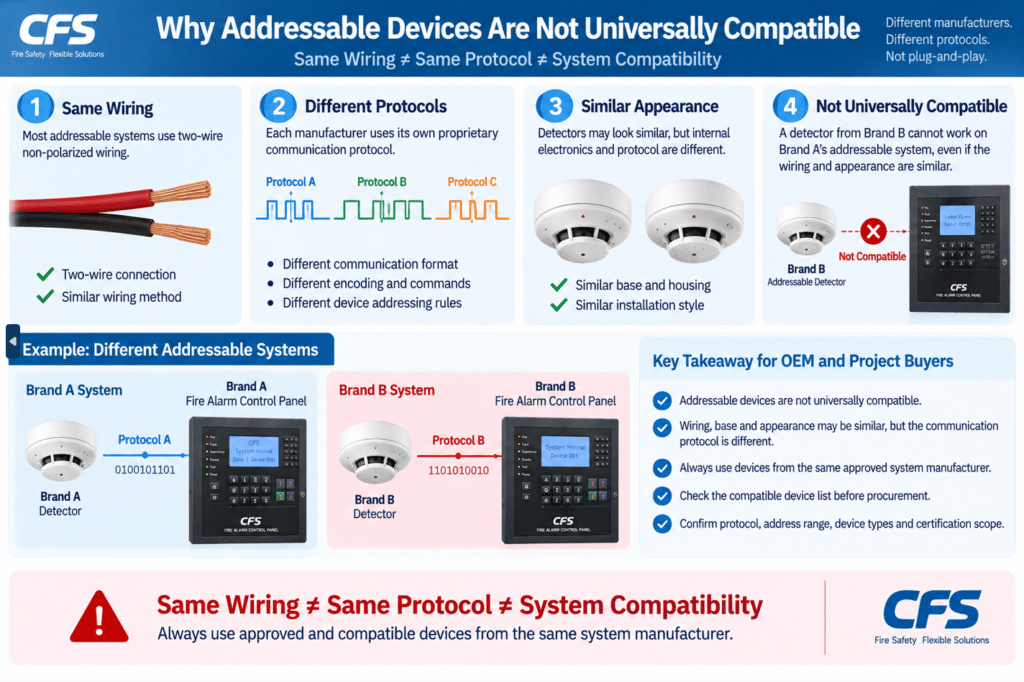

Why Can’t Every Addressable Detector Work with Every Fire Alarm Panel?

This is one of the biggest risks in OEM fire-alarm projects.

An addressable detector is not automatically compatible with every addressable panel.

Compatibility depends on the communication protocol and the approved system configuration.

Two devices may have:

and still be unable to communicate correctly.

For OEM buyers:

Same Wiring ≠ Same Protocol ≠ System Compatibility

Before approving a panel platform, request a Compatible Device List / Compatibility Matrix.

It should identify exact supported models, including:

Before approving an addressable platform, request:

How Many Devices Can a Fire Alarm Control Panel Support?

There is no meaningful universal answer.

For an addressable system, buyers should distinguish:

These numbers are not interchangeable.

For example, a “4-loop panel” tells the procurement manager almost nothing about the actual project capacity unless the supplier also defines the loop protocol, supported device count, loading limitations and network architecture.

A better RFQ asks:

What is the maximum validated and certified system configuration—not simply the theoretical address range?

FACP capacity should not be confused with the maximum number of interconnected standalone alarms. A fire alarm control panel manages detectors and field devices through conventional zones or addressable loops, while standalone interconnected alarms use a different interconnection architecture.

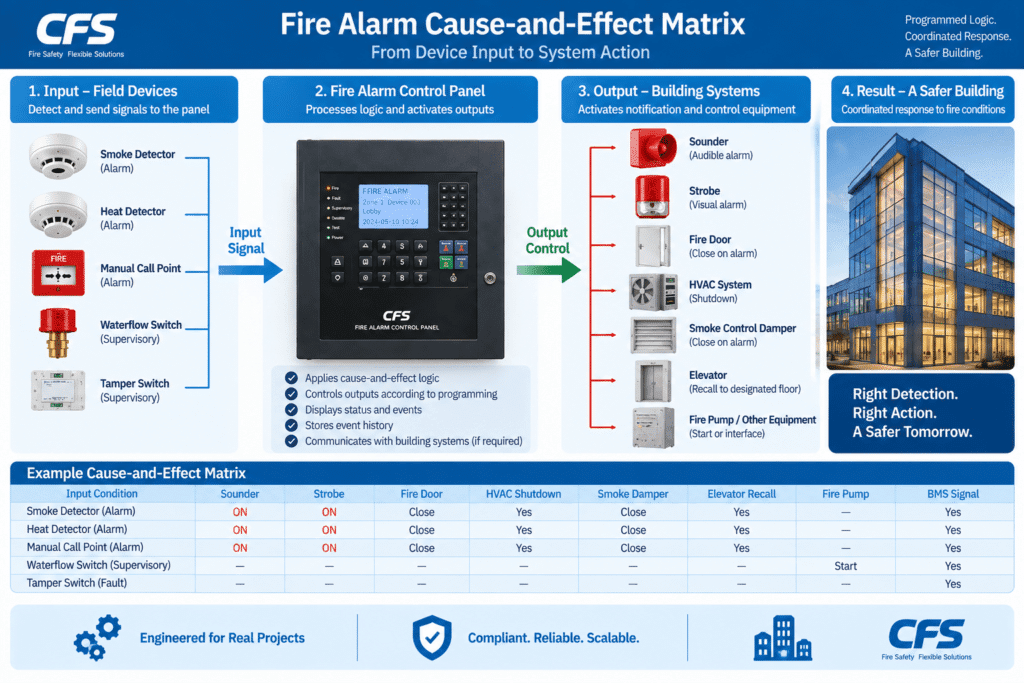

What Is a Fire Alarm Cause-and-Effect Matrix?

This is where a control panel becomes a fire-control system rather than simply an alarm display.

A cause-and-effect matrix defines:

When Input X occurs, which Output Y should operate, under what condition and with what timing?

For example:

Real projects can involve substantially more complex logic.

For system integrators, this matrix should be agreed before commissioning.

For OEM development, it should also become part of the firmware requirement.

Hardware Specification ≠ Complete FACP Specification.

The control logic matters just as much.

How Does an FACP Monitor Faults?

A professional fire alarm system does not only detect fire.

It also monitors its own ability to perform.

Depending on architecture, faults may include:

The exact fault monitoring capability must be confirmed for the specific panel and applicable standard.

For project buyers, ask a simple question:

What happens when each critical circuit is opened, shorted or disconnected?

The answer reveals far more about system maturity than the number of LEDs on the front panel.

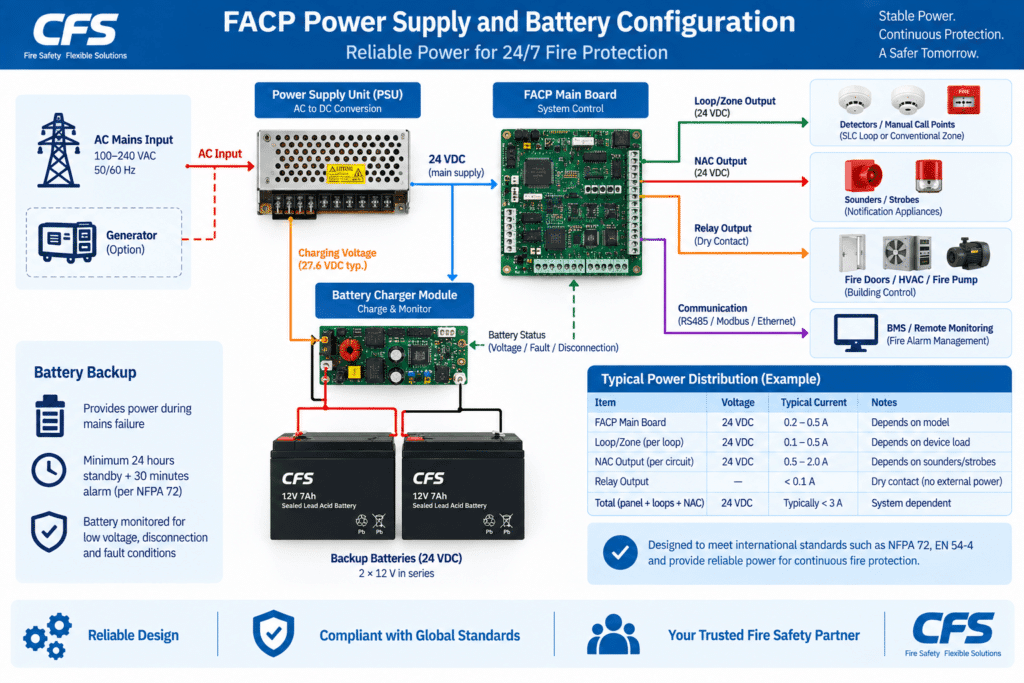

How Do You Calculate FACP Power and Battery Capacity?

A typical FACP architecture contains:

AC Mains Input → Power Supply → System Load + Battery Charger

with standby batteries supporting required operation if normal power is lost.

But battery selection cannot be made from panel wattage alone.

The calculation should consider:

The applicable standby and alarm-duration requirements depend on the jurisdiction, system type and governing code.

Battery Capacity ≠ Guaranteed Standby Time

The complete system load must be calculated.

For EN-oriented systems, buyers should also distinguish control-and-indicating equipment requirements from power-supply requirements. BSI certification records commonly show control panels assessed to BS EN 54-2 and BS EN 54-4, illustrating the relationship between control equipment and power-supply equipment.

What Are NACs, Relays and I/O Modules?

These terms are often mixed together during RFQ discussions.

NAC — Notification Appliance Circuit

A NAC supplies/controls compatible notification appliances such as horns, sounders or strobes, depending on system design.

Key parameters include:

Relay Output

A relay normally provides contacts such as:

NO / NC / COM

It can provide an interface to another system but does not automatically mean that the FACP directly powers that external equipment.

Input / Output Module

Addressable I/O modules extend the panel into the building.

They can monitor external contacts or control defined external interfaces.

Relay Contact ≠ Powered Output.

This should always be clear in datasheets and tender documents.

Can a Fire Alarm Control Panel Integrate with Other Building Systems?

Yes, when the approved architecture and applicable requirements allow it.

Potential interfaces include:

But integration should not be described simply as:

A system integrator needs to know:

Physical Interface → Communication Method → Data Points → Control Direction → Fail-Safe Behavior → Cause-and-Effect → Certification/Approval Boundary

EN 54-2, EN 54-4, UL and NFPA 72: Which Requirements Apply to a Fire Alarm Control Panel?

EN 54-2

BSI describes BS EN 54-2 as the standard covering requirements, test methods and performance criteria for control and indicating equipment used in fire detection and fire alarm systems in buildings.

EN 54-4

Associated with power-supply equipment used in the fire detection and alarm system. Certified control-panel listings frequently reference EN 54-2 together with EN 54-4.

NFPA 72

NFPA 72 is a fire alarm and signaling code covering system application, installation, testing and related requirements; it should not be presented as a product certification.

UL

For North American projects, the exact UL standard/listing and system configuration need to be confirmed for the product and application rather than using “UL certified” as a generic claim.

This distinction is critical:

Product Standard ≠ Installation Code ≠ Project Approval

For international RFQs, always start with:

Target Country → Applicable Code → Product Standard → Certification Body → Approved System Configuration

not the other way around.

Do not accept “EN 54 compliant” or “UL certified” as a complete procurement specification. Ask for the exact panel model, applicable standard, certificate/listing reference and approved system configuration.

For OEM and project procurement, verify the exact certificate or listing against the proposed panel model, power-supply configuration, firmware version, loop/zone configuration and compatible field-device family.

Why Should Buyers Verify the Certification Scope?

A certificate logo on a brochure is not enough.

Before approving a system, check:

BSI’s public product directory demonstrates why exact model verification matters: certification entries identify specific conventional and addressable configurations rather than simply certifying an abstract category called “fire alarm panel.”

Certificate Available ≠ Your Proposed Configuration Is Covered.

What Should System Integrators Check Before Selecting a Panel?

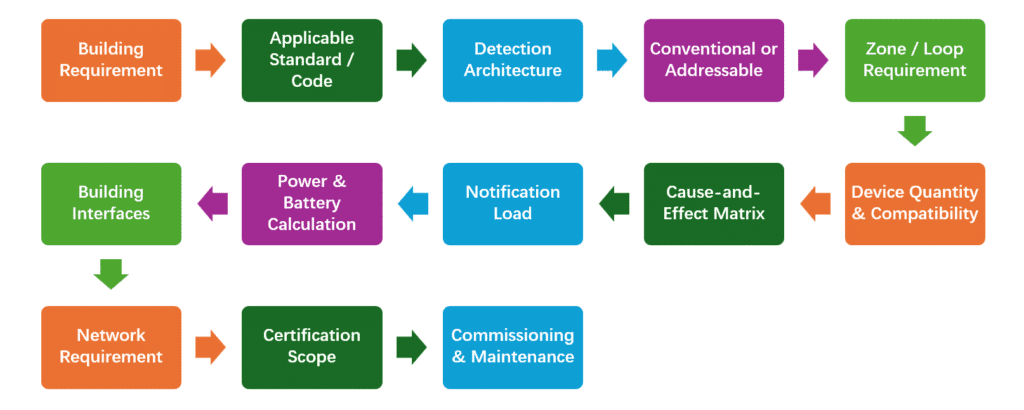

Use the following engineering sequence:

Starting with the panel model and trying to force the building design around it reverses the correct engineering process.

Fire Alarm Control Panel RFQ Checklist for Project Buyers

Before requesting a quotation, provide at least:

What Should Be Validated Before Mass Production?

Do not stop at:

Validation should move from individual functions to system boundaries.

Hardware Validation

Check:

System Validation

Test:

Minimum Configuration → Typical Configuration → Maximum Declared Configuration

For an addressable platform, this can include:

Firmware Validation

Verify:

Panel Power-On Pass ≠ System Validation Pass.

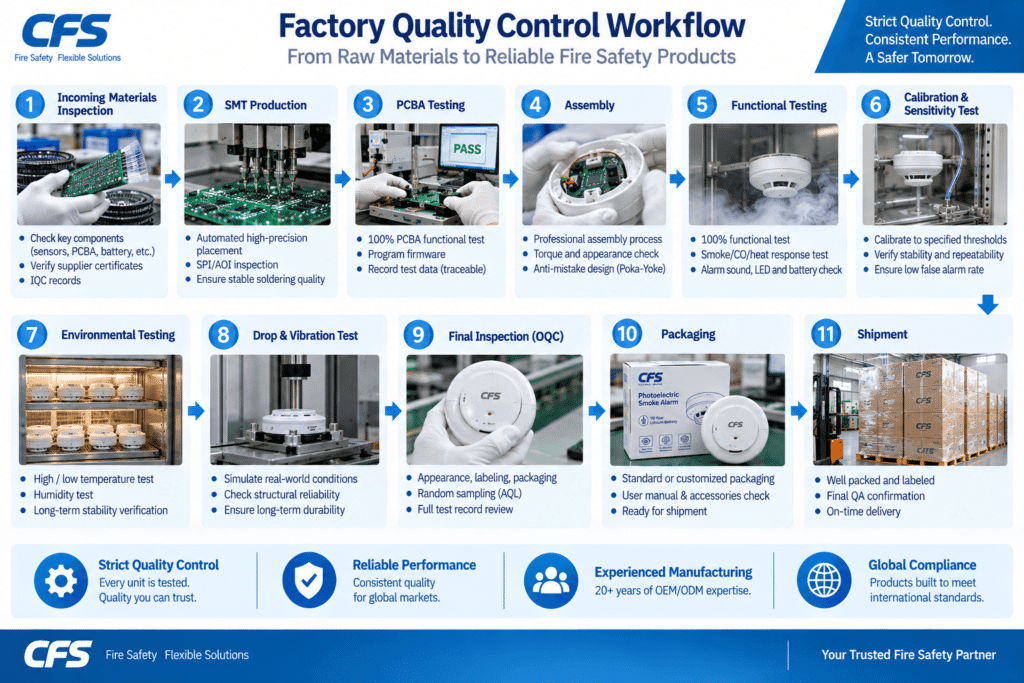

What Should Be Tested at 100% EOL?

Certification testing and factory EOL testing solve different problems.

Certification verifies the approved design against the relevant requirements.

EOL testing verifies whether each manufactured unit performs according to the controlled production specification.

Depending on the panel architecture, OEM buyers should confirm whether production testing covers:

Test results should be linked to traceability where required.

Prototype Pass ≠ Production Consistency.

Why Firmware and Configuration Control Matter in FACP OEM Manufacturing

For a simple standalone device, firmware is already important.

For a fire alarm control panel, it becomes central to the system.

A firmware change can potentially affect:

Therefore, OEM projects should establish:

Approved Firmware Version → Golden Sample → Production Programming Control → Verification → Change Approval → Traceability

Any change should be reviewed against the certified configuration and project requirements before mass-production implementation.

Same PCB ≠ Same System Behavior if Firmware Changes.

What Are the Most Common FACP Procurement Mistakes?

How CFS Approaches a Fire Alarm Control Panel OEM/ODM Project

A fire alarm control panel project normally starts with the system boundary rather than the enclosure or front-panel design.

CFS first reviews the target market, applicable standard, conventional or addressable architecture, zone/loop capacity, field-device requirements, communication protocol, I/O logic and power budget. These inputs define the hardware, firmware and system-validation requirements before branding or enclosure customization is finalized.

For addressable platforms, particular attention is given to device compatibility, loop loading, communication stability and cause-and-effect logic. For conventional systems, zone architecture, EOL supervision, output loading and fault behavior become key design inputs.

Once the technical configuration is frozen, the project can move through engineering validation, certification configuration, golden sample approval, pilot production, functional testing and traceability control.

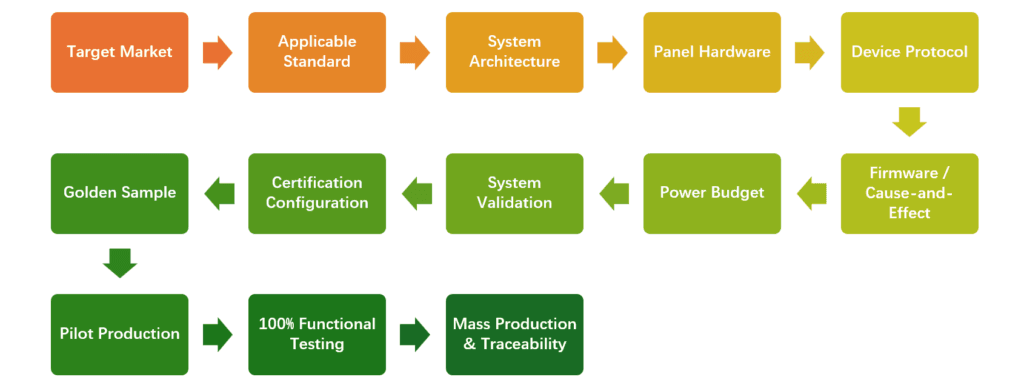

CFS Project Flow

FAQ — Fire Alarm Control Panel

Conclusion

A fire alarm control panel should not be selected by enclosure size, number of buttons or loop count alone.

For system integrators and project buyers, the real specification is:

Panel + Field Devices + Protocol + Wiring + Power + Cause-and-Effect + Notification + Building Interfaces + Certification Scope

For OEM partners, one more layer must be added:

Production Consistency + Firmware Control + Approved Components + EOL Testing + Traceability

The better procurement question is therefore not:

It is:

“Can you demonstrate that the complete panel, device, protocol, power and cause-and-effect configuration remains compliant and stable at our declared system boundary—and that the same configuration can be controlled in mass production?”

That question separates a control-panel quotation from a fire-alarm-system engineering project.
