What Is a Wi-Fi Carbon Monoxide Alarm & How Does It Work? Complete Guide for OEM Buyers and Property Projects

For the average user, the most easily understood function of a Wi-Fi carbon monoxide alarm is:

“After a CO alarm is triggered, your phone will also receive a notification.”

However, for OEMs, product managers, importers, and property project procurement personnel, simply knowing this is far from sufficient.

What truly needs to be confirmed are:

They are more important than simply “can it connect to a phone?”

Quick Answer: What Is a Wi-Fi Carbon Monoxide Alarm?

Wi-Fi Carbon Monoxide Alarm(Wi-Fi CO Alarm) is a smart carbon monoxide alarm that combines Wi-Fi communication capabilities with the traditional local safety functions of a CO alarm.

CO Gas → Electrochemical CO Sensor → Analog Front End → MCU → CO Alarm Algorithm → Local Buzzer / LED / LCD

Simultaneously:

MCU → Wi-Fi Module → Router → Cloud → App Notification. The responsibilities of the two paths are different.

The first path is the Safety Path, responsible for CO detection, concentration calculation, and local alarm; the second path is the Connectivity Path, responsible for remote status, alarm messages, and app interaction.

The most important engineering principle is:

Wi-Fi should extend the CO alarm’s communication capability—not replace its local safety function.

CFS CO11W uses a self-made electrochemical CO sensor and 802.11 b/g/n Wi-Fi communication technology, is equipped with a 3V lithium battery, and includes local audible and visual alarms. It also supports the Tuya or Smart Life app and complies with EN 50291-1:2018 standards.

What Does Wi-Fi Actually Do in a Carbon Monoxide Alarm?

This is where OEM procurement is most prone to misunderstanding.

The Wi-Fi module is not a CO sensor, nor should it be responsible for determining core CO alarms.

It solves the communication problem.

What Wi-Fi Is Responsible For

Depending on the specific hardware, app, and cloud platform configuration, the Wi-Fi layer can typically be used for:

For example, when a CO alarm detects a dangerous CO concentration in the boiler room and triggers a local alarm, the Wi-Fi system can upload the event to the cloud and then push a notification to property staff or users’ mobile phones.

This is also one of the biggest commercial advantages of Wi-Fi CO alarms compared to standalone products.

CFS also uses the CO11W in residential applications for CO monitoring scenarios that require real-time app information.

What Wi-Fi Should Not Control

Wi-Fi should not be a prerequisite for the following basic security functions: CO Detection, CO Concentration Calculation, Concentration-Time Alarm Decision, and Local Audible Warning. In other words: No Wi-Fi ≠ No CO Protection. For product managers, this architectural boundary should be clearly defined during the project definition phase.

Wi-Fi is a communication layer, not the CO sensing or local alarm decision layer.

Does a Wi-Fi CO Alarm Work Without Internet?

This is one of the first questions you should ask the supplier when purchasing a Wi-Fi CO alarm.

What Continues to Work Offline?

For Wi-Fi CO alarms using a local security architecture:

Yes — local CO detection and local alarm should continue to operate even if Wi-Fi or internet connectivity is unavailable.

The reason is that CO detection and alarm decision-making should be performed locally on the device, rather than relying on the cloud.

The normal logic should be:

CO Sensor → MCU → Local Alarm

Instead of:

CO Sensor → Wi-Fi → Cloud → Alarm Decision

The latter architecture introduces the internet, router, and cloud into the life-safety alarm chain, creating unnecessary single points of failure.

What Functions May Stop During an Internet Outage?

After the network is disconnected, the most affected functions will be Connected Functions, such as:

Specific actions still depend on the product and cloud platform architecture.

Therefore, B2B procurement shouldn’t just ask:

Does it support Wi-Fi?

It should also ask:

Which security functions remain operational if the router, internet connection, or cloud service is unavailable?

Router Offline vs Internet Offline vs Cloud Offline

These three represent distinct types of failures:

Router Offline

The device cannot even connect to the local Wi-Fi.

Internet Offline

The device may still be connected to the router but cannot access the cloud.

Cloud Offline

Home internet connectivity is normal, but IoT services are unavailable.

For OEM engineering validation, these three failure modes should be tested separately.

What Happens When Wi-Fi, Internet or Cloud Services Fail?

How Does a Wi-Fi Carbon Monoxide Alarm Work?

Step 1: CO Enters the Alarm.

Carbon monoxide in the air diffuses through the housing’s air intake structure to the electrochemical CO sensor.

The housing structure affects:

Therefore, the exterior structure is not just an ID design issue; it is also part of the CO detection system.

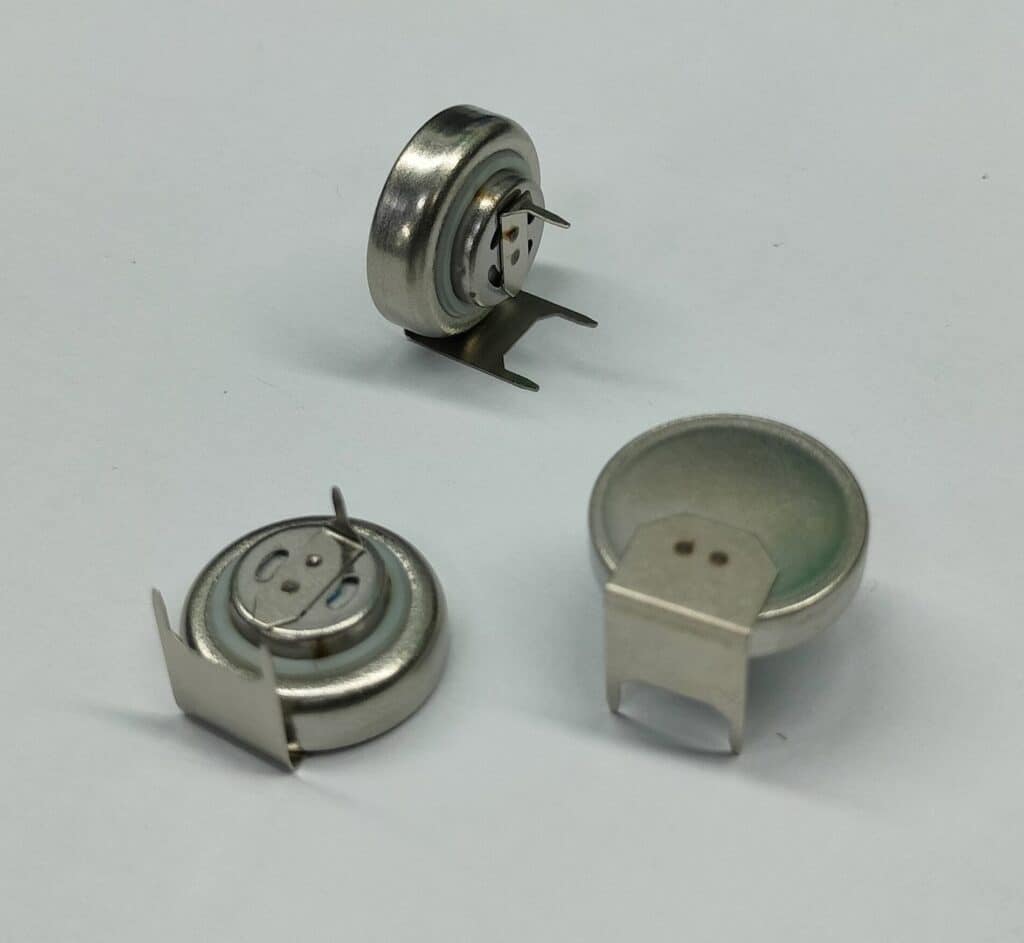

Step 2: The Electrochemical CO Sensor Generates a Signal.

After CO enters the electrochemical sensor, an electrochemical reaction occurs, generating a weak current signal related to the CO concentration.

CFS’s existing CO technology documentation emphasizes that complete CO alarm performance is not determined solely by the sensor; it also depends on signal processing, temperature compensation, calibration, and algorithms.

Step 3: The Analog Front End Processes the Signal

The sensor’s weak output goes through:

Amplification → Filtering → ADC → MCU

converted into data that the MCU can process.

Therefore:

Electrochemical CO Sensor ≠ Complete CO Alarm

The sensor is merely a signal source.

Step 4: MCU Calculates CO Concentration and Exposure Time

The MCU continuously processes:

Then, based on the concentration-time logic corresponding to the target certification standard, it determines whether the alarm conditions have been met.

Step 5: Local Alarm Is Activated

After the specified alarm conditions are met, the local alarm function is executed first, for example:

Buzzer + Red LED + LCD/Voice

Step 6: Wi-Fi Sends the Event to the Cloud

Under normal network connectivity, the MCU/Wi-Fi module simultaneously uploads the alarm event to the cloud platform.

The cloud platform then sends an App notification to the bound user.

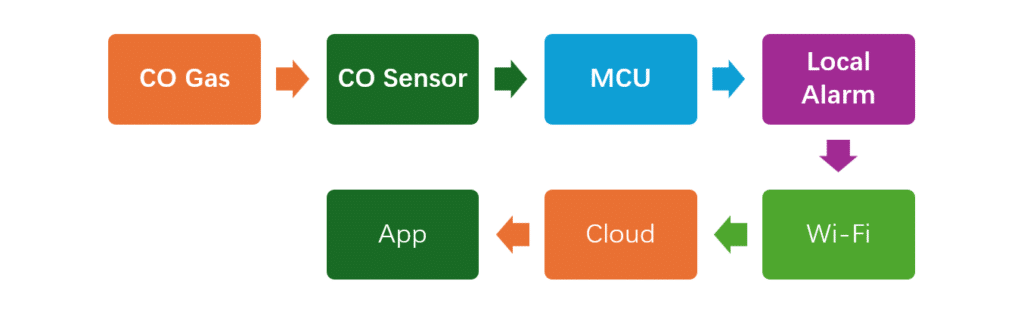

Therefore, the complete data chain is:

CFS Engineering Insight

In a Wi-Fi CO alarm, the electrochemical sensor provides the raw CO-related signal, but alarm consistency is determined by the complete signal chain. Sensor sensitivity, analog front-end design, temperature compensation, gas calibration and firmware parameters must be controlled together.

How Does a Wi-Fi CO Alarm Decide When to Sound?

Wi-Fi does not change the fundamental safety assessment logic for CO.

A CO alarm cannot be simply understood as:

“CO detected → alarm immediately.”

CO risk is related to two variables:

Concentration + Exposure Time

Therefore, different CO concentrations correspond to different alarm time windows.

For example, the detection response listed in the CFS CO11W specification is:

These data correspond to its EN 50291 product positioning.

This also means that the app notification should follow the validated alarm/event logic—it should not independently redefine the safety alarm threshold. During OEM development, if a customer requests the addition of “early warnings” to the app, a clear distinction must be made between Safety Alarm and Informational/Pre-Alarm Notification. Avoid confusing app logic with the validated alarm logic.

What Notifications Should a Wi-Fi CO Alarm App Provide?

For B2B projects, the value of an app shouldn’t be limited to “CO Alarm Push”.

A mature platform should at least consider different event types.

CO Alarm Notification

When a formal CO alarm occurs, the event is sent to the bound user.

Recommended to include:

Low-Battery Notification

If the battery enters a low-voltage state, the app can provide an additional alert.

However, app alerts cannot replace the device’s built-in Low-Battery Warning.

Device Fault Notification:

For example, if the product detects a sensor, hardware, or other monitorable fault, it can be synchronized to the app in addition to local fault notifications.

Device Offline Notification

This is especially important for property projects.

Device offline may mean:

Router offline / Wi-Fi changed / Device communication lost / Power-related issue / Network reconfiguration.

However, it is important to note:

Device offline does not automatically mean CO detection has stopped. The app copy must distinguish between:

Communication Offline and

Safety Device Fault; otherwise, it may lead to incorrect safety assessments.

App Event Priority for Wi-Fi CO Alarms

Why Offline Detection Matters for Property Projects

It’s one thing for a single-household user to occasionally see a device go offline.

But it’s entirely different if a property management company manages:

100 / 500 / 5,000 devices.

The project management platform needs to be able to quickly identify:

Therefore, for a property project, it’s not just about procuring a “Wi-Fi Alarm.”

What you’re actually procuring is: CO Alarm Hardware + Connectivity + Cloud + App + Device Lifecycle Management. This is one of the biggest differences between the procurement logic of ordinary consumer electronics and B2B property projects.

How Much Power Does Wi-Fi Add to a CO Alarm?

This is one of the most easily underestimated issues in Wi-Fi CO Alarm design.

Standalone CO Alarms operate in an ultra-low-power standby state most of the time.

With the addition of Wi-Fi, the Power Budget needs to consider the following:

The CFS CO11W’s public specifications list a 3V CR123A lithium battery, a maximum standby current of 30 µA, and a maximum alarm current of 70 mA, and state a product lifespan of 10 years.

However, for OEM development, simply using:

Battery Capacity ÷ Standby Current to demonstrate a 10-year lifespan is insufficient.

Why Wi-Fi Reconnection Can Be More Important Than Normal Standby Current

Power consumption under normal network conditions is often not the most dangerous scenario.

What engineering teams should verify more is:

What happens when Wi-Fi is unavailable for hours or days?

If the firmware continuously performs:

Wake → Search Router → Connect → Fail → Retry

Actual power consumption may be significantly higher than under normal connection conditions.

Therefore, Wi-Fi battery life verification should at least cover:

For a 10-year battery project, these abnormal states must be included in the power budget, and not just tested in a stable lab Wi-Fi environment.

User Binding, Re-Pairing and Wi-Fi Provisioning

After Wi-Fi products hit the market, many RMAs are due to network provisioning or account issues rather than actual sensor malfunctions.

OEM product managers should define the complete device lifecycle in advance.

First-Time Pairing

To clarify:

Who owns the device after pairing?

What kind of relationship is established between the device and the Account, Home, or Property after the user binds it for the first time?

Router Replacement

You need to clarify:

Change of Property Owner or Tenant

For rental or property-related projects, a specific scenario requires careful consideration: the transition from an outgoing tenant to an incoming tenant—specifically, who owns the alarm system in the app?

Without a device transfer mechanism, long-term operational costs would be extremely high.

Factory Reset

It is essential to specify which data is cleared during a factory reset:

Of particular importance:

Resetting connectivity must not inadvertently alter certified CO alarm parameters.

What Privacy and Cybersecurity Issues Should OEM Buyers Consider?

With the addition of Wi-Fi connectivity, a CO alarm is no longer merely a hardware product; it encompasses:

Device + App + Cloud + User Account + Data

Therefore, OEM projects must clearly address the following:

For the European market, compliance assessments must also incorporate regulations on data protection and wireless-connected products; the EN 50291 certification should not be viewed as covering all compliance requirements for connected devices.

EN 50291, UL 2034 and Wireless Certification: Where Is the Boundary?

This is the area where quoting errors most frequently occur in Wi-Fi CO alarm OEM projects.

It is essential to distinguish between two distinct aspects:

CO Safety Compliance

Primarily addresses:

“Can this product reliably detect CO and trigger an alarm as required?”

Wireless / Connected Compliance

Primarily addresses:

“Can this wireless device legally and safely utilize wireless communication functions in the target market?”

The two cannot substitute for one another.

Does EN 50291 Cover the Wi-Fi Function?

EN 50291 focuses on the safety performance of the CO alarm itself, covering requirements such as alarm response, environmental performance, fault behavior, and power supply.

The CFS product page for EN 50291 explicitly states that Wi-Fi connectivity does not replace the requirements set by EN 50291 regarding detection, alarm response, and safety testing.

Therefore:

EN 50291 compliance ≠ fulfillment of all wireless regulatory requirements.

Does UL 2034 Cover Wi-Fi?

The same principles apply to North America.

While UL 2034 primarily addresses the safety and performance requirements for residential CO alarms, the addition of Wi-Fi connectivity means that the complete compliance path for market entry must be determined based on the specific wireless module, product architecture, target market, and certification scheme.

Therefore, buyers should not simply ask:

“Do you have UL 2034？”

Instead, they should ask:

“Is the exact Wi-Fi model, hardware configuration, and private-label version covered by the required certification scope for our target market?”

These are entirely different questions.

One Product, Multiple Compliance Layers

A CO certificate and a wireless approval solve different compliance questions. One does not automatically replace the other. Please also read more Carbon Monoxide Alarm Compliance Guide.

What Wi-Fi CO Alarm Changes May Require Certification Re-Evaluation?

Why OEM Buyers Should Verify the Exact Certified Configuration

For Connected Alarms, the following changes may necessitate a re-evaluation by engineering and compliance teams:

Therefore:

Standalone Certification ≠ Automatic Wi-Fi Model Certification

Similarly:

Prototype Pass ≠ Mass Production Pass

Final procurement reviews should focus on the actual mass-production configuration, rather than simply relying on certification logos associated with the product series.

Tuya / Smart Life vs OEM App vs Private Cloud: Which Is Better?

This decision must be made once an OEM project enters the commercial stage.

There is no single solution that suits every brand.

The existing CFS CO11W model supports the Tuya or Smart Life app; consequently, for projects aiming to quickly enter the Wi-Fi CO alarm market, this mature platform can reduce early-stage development complexity.

When Should You Choose Tuya / Smart Life?

Suitable for:

Key Value:

Use a mature IoT platform instead of building the entire IoT stack from scratch.

When Should You Choose a Branded OEM App?

If a brand has already achieved a certain sales volume and factors such as consumer experience and brand identity are becoming increasingly important, consider the following approach:

Brand Logo + Custom UI + Branded App + Existing IoT Platform

It is a realistic middle-ground strategy that enhances brand control while avoiding the long-term maintenance costs associated with building a cloud infrastructure from scratch.

When Does a Custom Cloud Platform Make Sense?

Building a proprietary platform typically only makes business sense when the client genuinely requires:

Otherwise:

A custom cloud solution does not automatically equate to a better product.

It entails ongoing costs for software development, servers, security maintenance, app updates, and technical support.

Wi-Fi CO Alarm vs Standalone vs RF Interconnected CO Alarm

Procurement managers should base their selection on project architecture rather than on the number of features.

It is particularly important to avoid a common misconception here:

Wi-Fi Alarm ≠ RF Interconnected Alarm

Wi-Fi handles communication between the device and the router/cloud.

RF Interlink primarily handles local alarm-to-alarm communication between devices.

If a project requires both:

Whole-home local interconnection + App notifications

Then you need to consider:

RF + Wi-Fi

rather than simply assuming that “having Wi-Fi means interconnection is achieved.”

What Should Property Projects Verify Before Purchasing Wi-Fi CO Alarms?

Recommend that the RFQ clearly specify at least the following information:

Why Mass-Production Control Matters More for Wi-Fi CO Alarms

Standard CO alarms already involve:

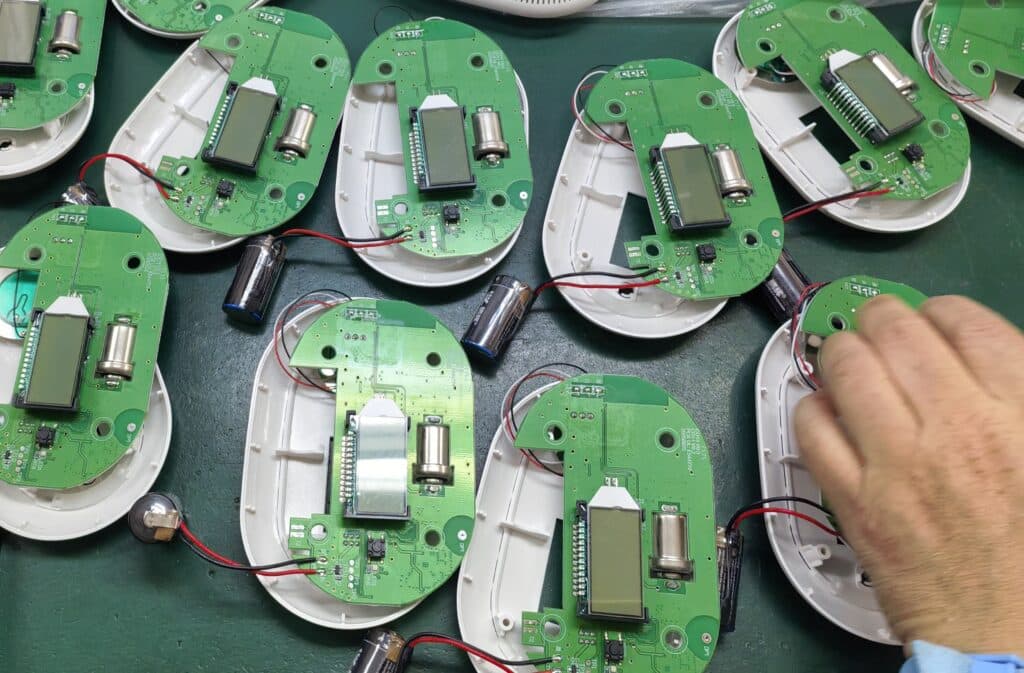

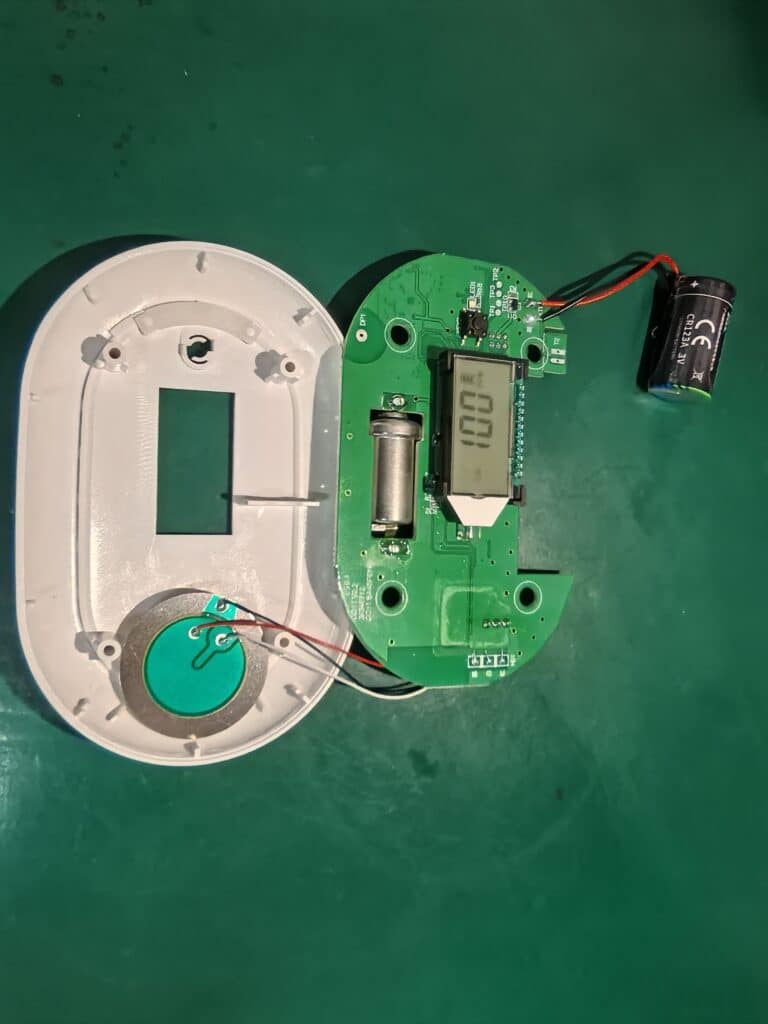

Sensor + AFE + MCU + Firmware + Battery + Calibration

Wi-Fi products add:

Wireless Module + Wireless Firmware + Cloud + App + Account System

Consequently, controlling mass production is more complex.

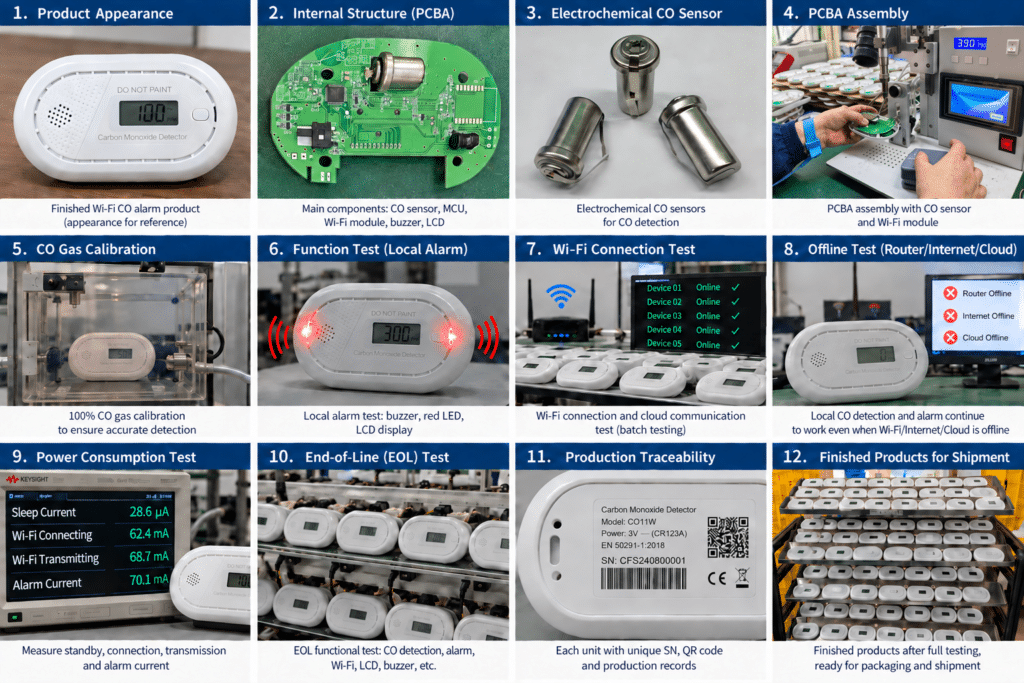

It is recommended to focus on controlling:

CO Sensor Batch

Ensures sensitivity and long-term stability.

100% CO Gas Calibration

Controls unit-to-unit variation among sensors.

Firmware Version

Version management is required for both safety firmware and connectivity firmware.

Wi-Fi Module

Module replacement decisions cannot be based on price alone; factors such as hardware, power consumption, firmware, and certification impact must be evaluated.

Cloud Configuration

Prevents errors regarding PIDs, server regions, or app configurations across different SKUs.

Device Identity

Traceability links must be established between the MAC address, Device ID, QR code, serial number (SN), and cloud records.

End-of-Line Test

Final testing should not be limited to simply checking:

“Does Wi-Fi connect?”

It must also separately verify:

CO detection, local alarm, Wi-Fi communication, app event reporting, and fault behavior.

Only then is the mass-production verification of a connected safety product considered complete.

How Should OEM Buyers Evaluate a Wi-Fi CO Alarm Manufacturer?

Do not assume a supplier can manufacture Smart CO Alarms just because a single sample connects to an app.

It is recommended to audit the following eight areas:

OEM & Private Label Wi-Fi CO Alarm Options

OEM customization of Wi-Fi CO alarms can be divided into three levels.

Level 1 — Branding Customization

Suitable for rapid market launch:

Level 2 — Product Configuration

Based on the scope of certification and platform capabilities, the following can be assessed:

Level 3 — Connected Platform Development

Larger projects may require further evaluation of:

However, please note:

The deeper the customization, the greater the engineering, certification, and lifecycle management responsibility. Do not interpret “Custom App” at the RFQ stage as simply changing the logo.

CFS Wi-Fi CO Alarm Platform Example — CO11W

The key features：

Electrochemical CO sensing + Wi-Fi 802.11 b/g/n + Tuya/Smart Life + 3V Lithium Battery + LCD/Voice + EN 50291-1:2018. The product page indicates a 10-year product lifespan, a maximum standby current of 30 µA, >85 dB(A) at 3 m, and alarm time parameters for 50/100/300 ppm.

For OEM projects, it’s more important not to simply replicate these specifications, but to determine the final platform based on:

Target Market → Certification → Product Architecture → Battery Target → App/Cloud → Customization → Annual Volume.

Developing a Wi-Fi CO Alarm for Your Market?

Tell us your target country, certification requirement, battery target, App preference, expected annual volume and private-label requirements.

FAQ About Wi-Fi Carbon Monoxide Alarms
