Smoke Detector Range & Coverage: How Many Smoke Detectors Per Square Meter?

—The ultimate solution for smoke detection coverage in commercial and residential projects

For fire protection engineers, OEM project managers, and procurement managers, a core question frequently arises regarding smoke detector placement: What area can a single smoke detector cover? How many detectors are needed per square meter?

Many smoke alarm problems found during project operation or inspection are not caused by detector quality itself. In practice, improper detector spacing and coverage planning are among the most common reasons for delayed response, nuisance alarms, and inspection issues.

From an engineering design perspective, smoke detectors cannot be simply “uniformly distributed.” System planning must consider:

Quick Answer: How Much Area Can One Smoke Detector Cover?

A standard point smoke detector typically covers:

According to NFPA 72 nominal spacing principles:

However, actual detector coverage depends on:

This is also the basic logic behind the design of many commercial fire protection systems.

Detector coverage should be treated as a design reference rather than a fixed installation value, but it is affected by installation height and environmental conditions.

NFPA 72 Smoke Detector Spacing Requirements Explained

According to NFPA 72 spacing principles, standard point smoke detectors 、are typically designed around 900 sq.ft. nominal spacing under flat ceiling conditions.

Flat Ceiling vs Real Buildings

The 9.1m nominal spacing referenced in NFPA 72 provides a useful starting point, but final detector layout often depends on actual building conditions and project requirements. Building geometry and environmental conditions often influence practical detector spacing. Spacing review becomes particularly important under conditions such as:

NFPA 72 nominal spacing is a starting point, not a universal installation rule.

Compliance Warning

Important:

NFPA 72 nominal spacing provides a design reference but does not replace local code review or AHJ approval.

Local Authority Having Jurisdiction (AHJ) approval may override nominal spacing assumptions depending on occupancy and building use.

Final detector layout should always be evaluated according to:

For commercial projects, spacing validation should be completed before procurement and installation.

Smoke Detector Coverage by Ceiling Height

Coverage at Different Ceiling Heights

Many procurement projects overlook a crucial variable: ceiling height.

As installation height increases:

Therefore, the coverage area needs to be adjusted.

Ceiling Height Coverage Table

Why Ceiling Height Matters

As ceiling height increases, smoke may:

This can delay alarm activation and reduce practical coverage efficiency.

≤3.5m Ceiling

Most common applications:

Typically: Around 100m²/unit

This is sufficient to meet basic layout requirements.

3.5–6m Ceiling

For example:

Recommendation: 80m²/unit

Avoid response delay after smoke layer formation.

6–7.5m Ceiling

High-ceiling environments:

Smoke rises along longer paths.

Recommendation: 60m²/unit or use a special detection solution.

Mounting Height Considerations

Detector coverage does not increase indefinitely with mounting height.

Above certain ceiling heights, standard point detectors may become less effective and beam or aspirating systems may be required.

Point vs Beam vs VESDA: Which Detection Technology Covers More Area?

Differences in Coverage Capabilities Between Different Detection Technologies

Many customers mistakenly believe that all smoke detectors have the same coverage area.

In fact, the detection technology determines the coverage area.

1. Point Smoke Detector

Photoelectric smoke alarms are the most common type. Typical applications:

• Residential
• Office
• Commercial buildings

Coverage area: Approximately 80m²/unit

Features:

• Low cost
• Flexible installation
• Simple maintenance

It is also the most widely used solution in NFPA 72 and UL268 systems.

2. Beam Smoke Detector

Beam obstruction is detected via a transmitter and receiver.

Coverage capacity: Up to 1500m²

Suitable for:

Advantages:

Limitations:

Beam systems can provide efficient protection for large open spaces, but successful installation depends on alignment accuracy, unobstructed paths and maintenance accessibility.

3. VESDA Aspirating Detection

VESDA achieves extremely early detection through active air sampling.

Typical Coverage: Approximately 500m²

Commonly Used in:

Features:

Limitations:

However, Higher installation and lifecycle costs should be considered during project planning.

4. Cost vs Coverage Trade-Off

Different detector technologies involve different investment levels.

Choosing the widest coverage option does not always reduce total project cost.

5. Coverage vs Lifecycle Cost

Initial detector cost is only one part of project economics.

Procurement teams should also evaluate:

A lower detector count does not always mean lower lifecycle cost.

6. Recommended Detector Selection Matrix

Detector selection should balance coverage, maintenance requirements and project budget rather than relying on maximum spacing alone.

How to Calculate Smoke Detector Quantity for Commercial Projects

Rapid estimation is frequently required during the procurement and engineering design phases.

Common formula:

Number of detectors = Total area ÷ Coverage area per unit × Adjustment factor

Where:

Determined based on:

Adjustment factor: Very critical.

Typically: 1.1–1.3

Used to consider:

Real Engineering Calculation Example

Commercial Office Area:1000m²

Standard Unit Size: 80m²/unit

Adjustment Factor: 1.2

Calculation:

1000 ÷ 80 × 1.2 ≈15 units

This type of estimation method is commonly used for:

OEM Engineering Perspective

In OEM smoke detector projects, spacing and detector selection affect more than fire performance.

They also influence:

Why Early Layout Review Matters

Late detector layout changes may increase:

For OEM projects, early engineering review often reduces certification and redesign risk.

Engineering Review and Certification Planning

Detector layout decisions made early in the project can influence certification strategy, installation efficiency and long-term service cost. Early engineering coordination often helps reduce redesign and approval delays.

Common Smoke Detector Layout Mistakes That Cause Inspection Failure

In real commercial projects, theoretical detector coverage often decreases by 10–30% due to airflow, ceiling geometry, and compartment layout. The following four layout mistakes are among the most common causes of inspection failure.

Mistake 1：Ignoring Ceiling Height

Many projects: Calculated only based on floor area.

Result: High-ceiling spaces respond slowly.

Mistake 2: Oversized Corridor Spacing

Corridors often channel smoke movement over long distances.

When detector spacing exceeds recommended limits, smoke may travel significantly before reaching detection threshold, increasing alarm delay.

Recommendation:

Review corridor geometry and spacing during layout design.

Mistake 3: Ignoring HVAC Airflow

Air vents: May alter the smoke path. Many false alarms and delayed alarms occur.

Recommendation:

Review detector location nearby:

In residential and hospitality projects, kitchen areas frequently generate nuisance alarms if detector placement is not properly considered. Extra attention should be given when installing detectors near:

Smoke Detector Placement for Warehouses, Hotels and Residential Buildings

Special Area Layout Rules

Many projects fail not because of flawed main-area design, but because Special areas are overlooked.

1. Corridors

Recommendation: Install one unit every 15 meters.

Reason: Smoke travels quickly along corridors.

Excessive spacing may cause: Alarm delay.

2. Stairwells

Recommendation: At least one alarm on each floor.

Stairwells are in a chimney effect zone. Smoke rises rapidly through stairwells due to chimney effect.

3. Residential Bedrooms (Inside and Outside)

Residential projects typically require:

This is a key area of ​​residential regulations.

4. Kitchen Area (Avoid Direct Placement)

Kitchen environments require additional attention during smoke detector placement. Cooking smoke and steam may affect detector performance if installation distance is not properly considered.

Installation near cooking sources should be reviewed carefully, particularly in locations exposed to concentrated smoke or steam.

Otherwise, May cause:

Correct practice: Maintain a safe distance.

Why Detector Coverage Theory and Real Installation Often Differ

Many purchasing managers believe that 83.6m² is the fixed answer.

However, this is not the case in engineering practice.

The following factors can alter theoretical coverage:

In real commercial projects, theoretical detector coverage often decreases by 10–30% due to airflow, ceiling geometry and compartment layout.

How Maintenance Affects Detector Coverage Performance

Detector spacing calculations assume proper maintenance and periodic testing.

Over time, several factors may reduce practical detector performance:

Detector spacing assumptions are based on periodic inspection, cleaning and functional testing.

Without regular inspection and cleaning, practical detector coverage may decrease, increasing nuisance alarms or delayed detection.

For commercial systems, maintenance planning should be considered together with spacing design.

Commercial vs Residential Spacing Differences

Why are there spacing differences between commercial and residential properties?

Many purchasing managers ask:

Why are the configuration logics for residential and commercial projects different?

The reason lies in the different risk levels and design objectives.

Residential systems emphasize:

Typically, point detectors are sufficient.

Commercial wireless smoke alarm systems focus more on:

Therefore, commonly used:

Logic is significantly more complex.

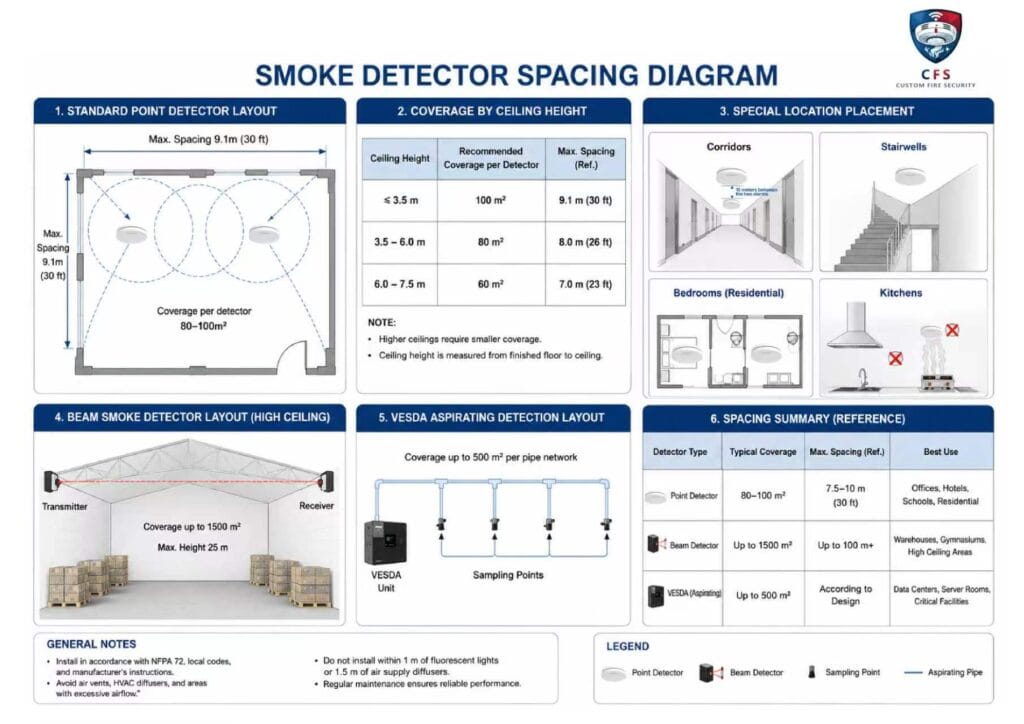

Smoke Detector Spacing Diagram

Warehouse Example

Warehouses with ceiling heights around 12m often require more than simple point detector spacing calculations. Storage arrangement, smoke travel distance and maintenance access frequently influence detector selection. Beam systems are commonly evaluated to reduce excessive detector quantity while maintaining effective coverage.

Hotel Example

Hotels require detector layouts that balance guest safety and nuisance alarm resistance.

Typical hotel protection strategies include:

Interlinked smoke alarms or addressable systems are often preferred to simplify maintenance and alarm identification.

Residential Example

Typical residential smoke alarm layouts focus on life safety and escape-path protection.

Most residential standards require:

Interlinked alarms are increasingly preferred to improve evacuation response.

Inspection Failure Risk Checklist

Before finalizing layout:
