What's the difference between alarms and detectors

Alarm, Detector, and Sensor are misunderstood, but they directly impact safety, compliance, and cost.CFS has served global alarm customers for 20 years, over 70% of inquiries initially confuse these three concepts: Alarm, Detector and Sensor.

This confusion often leads to:

Choosing the wrong product → Failure to meet regulations
Using it in the wrong scenario → False alarms or no alarm
Uncontrolled cost structure → After-sales and liability risks

This article will clearly explain their essential differences, advantages and disadvantages, applicable scenarios, and compliance logic.

Quick Distinction
Sensor feels, Detector thinks, Alarm shouts.

What is Sensor，Detector and Alarm？

These three components form a progressive core in a security system, progressing from “signal acquisition” to “risk identification” and then to “risk identification plus warning feedback.” Sensors sense physical signals, detectors integrate sensing and risk identification, and alarms combine detectors with warning signals(such as sound and light or linked warnings).

Sensor

A sensor is a device that converts measured non-electrical signals (such as temperature, pressure, or gas concentration) into transmittable and processable electrical signals (such as voltage, current, and resistance) or digital signals according to a certain rule. It acts as the “sensory organ” of various monitoring systems, responsible only for signal acquisition and conversion, and does not possess risk assessment or warning functions.

Role of Sensor
Just “feels” the world—like eyes seeing light or skin sensing heat—but doesn’t think at all.

CO Sensor

LDCS1511B BMS Dedicated（Energy storage）Carbon Monoxide Sensor

Lifetime: 5 Years

CO Sensor

LDCS3119B Hard Foot Type Carbon monoxide Sensor

Lifetime: 10 Years

CO Sensor

LDCS3119C Hard Foot Type Carbon monoxide Sensor

Lifetime: 10 Years

CO Sensor

LDCS3119Y Hard Foot Type Carbon monoxide Sensor

Lifetime: 10 Years

Detector

This detection unit, centered on a sensor and integrating signal processing, analysis, and threshold comparison, receives raw sensor signals and uses a built-in algorithm to determine whether the signal exceeds a “risk threshold.” It only outputs a warning trigger signal when the signal exceeds the preset threshold. It typically only has simple indicators (such as indicator lights) and does not include strong warning functions (such as audible alarms). It usually requires a detector with a control panel or smart app.

Smoke detector = smoke sensor + signal processing circuit + threshold judgment module.
Carbon monoxide detector = carbon monoxide sensor + filtering circuit + concentration judgment module.
Heat detector = heat sensor + judgment module.

Gas Detector

RQ400A WiFi Wireless Combustible LPG Detector

Lifetime: 10 years

Gas Detector

AJ987 standalone Combustible LPG Detector

Lifetime: 10 years

Gas Detector

AJ981EW Wifi Combustible LPG Detector

Lifetime: 10 years

Gas Detector

AJ981EI Wireless Interlinked Combustible LPG Detector

Lifetime: 10 years

Role of Detector
Does the “thinking”—tells if it’s just burnt toast or a real fire, and decides whether to panic.

Alarm

This device integrates a detector and an audible/luminous warning unit. Its working principle is as follows: receiving a trigger signal from the detector, it issues a clear warning message through sound, light, vibration, voice, or linked actions to remind nearby personnel to take appropriate measures.

Audible & visual alarm (flashing red light + buzzer)
Voice alarm (“Attention, smoke detected”)
Linked alarm (triggers access control/sprinkler/monitoring).

CO Alarms

CO10 Standalone Carbon Monoxide Alarm

Lifetime: 10 years

CO Alarms

CO09 Standalone Carbon Monoxide Alarm

Lifetime: 10 years

CO Alarms

CO07 Standalone Carbon Monoxide Alarm

Lifetime: 10 years

CO Alarms

CO12 Standalone Carbon Monoxide Alarm

Lifetime: 10 years

Role of Alarm
Makes sure everyone knows—must cause a racket (siren, flashing lights, phone calls) to wake you up.

What is the difference?

Items	Sensor	Detector	Alarm
Functions	Non-electrical signal → Electrical/Digital signal (acquisition and conversion only)	Receive sensor signal → Analyze and judge → Output trigger signal (risk identification)	Receive sensor signal → Analyze and judge → Output trigger signal → Issue warning/linkage action (risk feedback)
Core Components	Sensitive element + Conversion element + Conditioning circuit (simple)	Sensor + Signal processing/analysis circuit + Threshold module + Communication interface	Sensor+ Signal processing/analysis circuit + Threshold module + Trigger receiving module + Warning unit (light/speaker/voice) + Linkage interface
Judgment Capability	None, only outputs raw signal	Yes, determine “whether there is a risk”	Yes, built-in threshold/algorithm and executes instructions
Signal Output	Electrical/Digital signal (0-5V voltage, 0-20mA current)	Switch quantity/Digital trigger signal	Audible/Visual/Linked action
Independent operation	No	Independently identify risks and output trigger signals	Operate independently and output alarms

Sensor: “I see some particles in the air…”
Detector: “These particles look like smoke from a fire, not steam!”
Alarm: “WEEEOOO WEEEOOO! FIRE! EVERYONE OUT!”

What is the definition of Sensor, Detector and Alarm in UL and EU？

We will introduce sensors, detectors, and alarms from UL 2034, EN 50291, and UL 217.

CO sensor

The component or combination of components of the alarm that responds to and in turnprovides a usable output signal in the presence of carbon monoxide. (UL2034)
Device, part of the apparatus, the output of which will change in the presence of carbon monoxide. (EN50291)

SMOKE sensor/chamber

Components of a smoke alarm that sense particulate. (UL217)

Apparatus/Detector

Carbon monoxide detection device, which may also be generically termed “detector”, comprising the sensor, remote sensor if applicable, alarm and any other circuit components, power supply and, for type A apparatus, a means of providing an transmittable output signal. (EN50291)

HEAT Detector

A device that detects an abnormal high temperature or rate of temperature rise.(UL217)

ALARM, SINGLE STATION

An alarm device consisting of an assembly of electrical and mechanical components including a sensor or sensors, an audible alarm, and an optional visual alarm constructed to detect the presence of carbon monoxide gas. It is powered either from an external source by means of splice leads or a cord and plug arrangement or from an integral battery or batteries. It may have terminals for connection to a remote audible signaling appliance or accessory. It may also contain an integral transmitter for energizing a remote audible signaling appliance. (ul2034)

MULTI-CRITERIA SMOKE ALARM

An alarm comprised of a smoke sensor plus one or more additional sensors such as heat, radiant energy, fire gases or smoke that operates on different principles. Each sensor in the set is separately monitored for the presence or absence of physical stimuli. The individual signal from each sensor is mathematically evaluated together with the signals from the other sensor(s) to determine when a smoke alarm signal is warranted. Aside from this smoke alarm signal, the smoke alarm may generate other independent alarm signals such as but not limited to a CO alarm, heat alarm, or a flame alarm for which each alarm type complies with the applicable standard. (UL217)

HEAT ALARM, SINGLE STATION

A self-contained fire alarm system comprising of a heat alarm, an alarm sounding device, and a stored energy source (wound spring) incorporated in one integral package.(UL217)

How to choose products suitable for your project？

Sensor

Meaningless when used alone and provides signals to various devices. In the fire safety field, there are smoke sensors (photoelectric/ionization types), temperature sensors (thermistors), gas sensors (semiconductor/catalytic combustion types), CO sensors (Semiconductors/Electrochemical/NDIR) and flame sensors (ultraviolet/infrared types).

Detector

Risk identification and a “single-detection type.” In the fire safety field, there are smoke detectors, heat detectors, gas detectors, flame detectors, and carbon monoxide detectors.

Alarm

Risk identification and warning execution, and a “single-detection type” or a multi-detection type. In the fire safety field, there are smoke alarms, carbon monoxide alarms, heat alarms, combo smoke and carbon monoxide alarms, and combo smoke and heat alarms.

It is helpful to choose one product for your projects from fire protection, CO protection, local alert, advantage, and typical scenario.

Type	Fire Protection	CO Protection	Local Alert	Advantage	Typical Scenario
CO Sensor	❌	✅	❌	Small size Low cost Easy to integrate into the system	Inside CO equipment
Smoke Detector	✅	❌	❌	Interlinked Remote monitoring	Commercial buildings
Heat Detector	✅	❌	❌	Unaffected by smoke and steam Low false alarm Simple structure and high stability	Kitchens Boiler Room High dust / High steam environment
CO Detector	❌	✅	❌	Display the ppm value	Parking CO monitoring
Smoke Alarm	✅	❌	✅	Local high DB alarm Complies with UL217 / EN14604 Users easily understand	Homes Apartments Hotels Social housing
CO Alarm	❌	✅	✅	Complies with UL2034 / EN50291 Specifically prevent CO poisoning	Homes Apartments Hotels Buildings with gas/combustion equipment
Heat Alarm	✅	❌	✅	Local alarm no false alarms Suitable for harsh environments	Kitchens Garage Boiler room
Combo Smoke and CO Alarm	✅	✅	✅	One device, dual protection Lower installation costs Sleeker appearance	One device, dual protection Lower installation costs Sleeker appearance
Combo Smoke and Heat Alarm	✅	❌	✅	Reduce false alarms Improve fire detection accuracy	Near kitchens Mixed-use commercial and residential space High false alarm risk area

There is a brief introduction to the CFS product list, which will help you easily understand each product.

Model	Type	Fire Protection	CO Protection	Local Alert	Stand alone	Wireless Interlink	WIFI for TUYA
SM11	Smoke Alarm	✅	❌	✅	✅	❌	❌
SM11W	Smoke Alarm	✅	❌	✅	❌	❌	✅
SM11R4	Smoke Alarm	✅	❌	✅	❌	✅	❌
SM17	Smoke Alarm	✅	❌	✅	✅	❌	❌
SM17W	Smoke Alarm	✅	❌	✅	❌	❌	✅
SM17R	Smoke Alarm	✅	❌	✅	❌	✅	❌
SM32	Smoke Alarm	✅	❌	✅	✅	❌	❌
SM03	Smoke Alarm	✅	❌	✅	✅	❌	❌

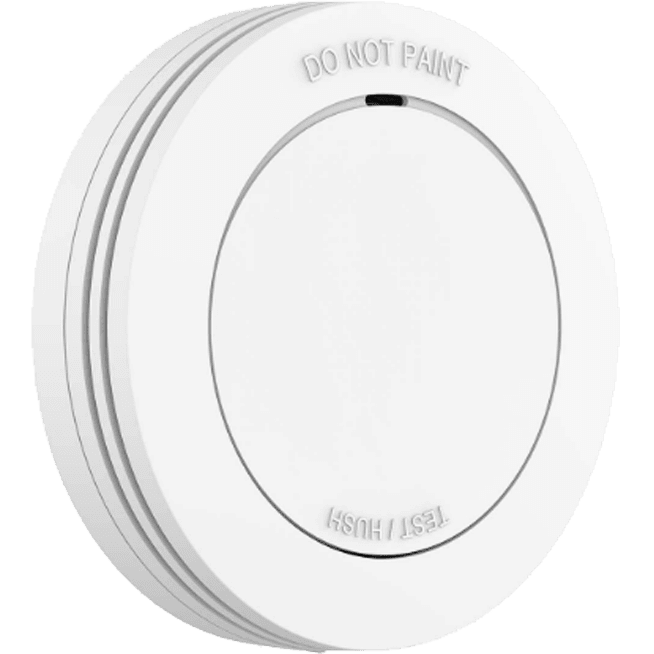

SM02	Smoke Alarm	✅	❌	✅	✅	❌	❌
SM21	Smoke Alarm	✅	❌	✅	✅	❌	❌
CS11	Combo Smoke and CO Alarm	✅	✅	✅	✅	❌	❌
CS11W	Combo Smoke and CO Alarm	✅	✅	✅	❌	❌	✅
CS11R	Combo Smoke and CO Alarm	✅	✅	✅	❌	✅	❌
CS13	Combo Smoke and CO Alarm	✅	✅	✅	✅	❌	❌
CS13W	Combo Smoke and CO Alarm	✅	✅	✅	❌	❌	✅
CS13R	Combo Smoke and CO Alarm	✅	✅	✅	❌	✅	❌
CS14	Combo Smoke and CO Alarm	✅	✅	✅	✅	❌	❌
CS14W	Combo Smoke and CO Alarm	✅	✅	✅	❌	❌	✅
CS14R	Combo Smoke and CO Alarm	✅	✅	✅	❌	✅	❌
CO03	CO Alarm	❌	✅	✅	✅	❌	❌
CO05R	CO Alarm	❌	✅	✅	❌	✅	❌
CO06	CO Alarm	❌	✅	✅	✅	❌	❌
CO11W	CO Alarm	❌	✅	✅	❌	❌	✅
CO11R	CO Alarm	❌	✅	✅	❌	✅	❌
CO11	CO Alarm	❌	✅	✅	✅	❌	❌
HD11R	Heat Alarm	✅	❌	✅	❌	✅	❌
HD12R	Heat Alarm	✅	❌	✅	❌	✅	❌
SM11HR	Combo Smoke andHeat Alarm	✅	❌	✅	❌	✅	❌

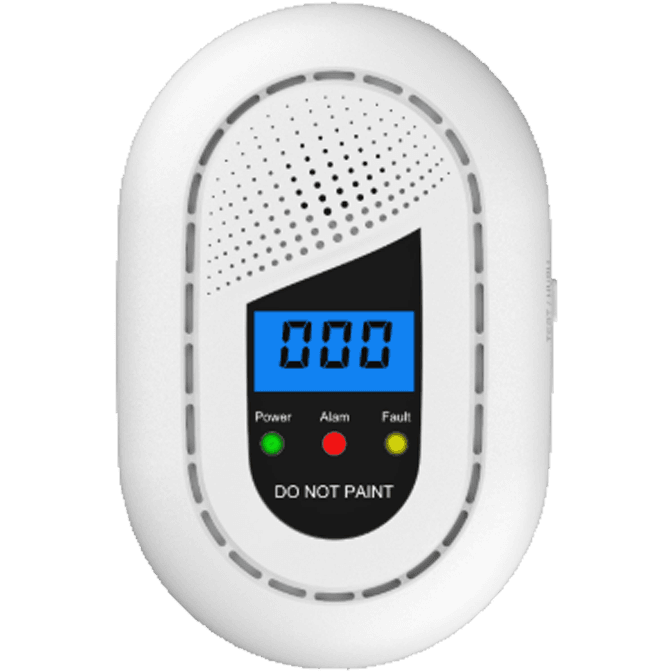

GC01	Gas detector	❌	✅	✅	✅	❌	❌
GC01W	Gas detector	❌	✅	✅	❌	❌	✅
GC01R	Gas detector	❌	✅	✅	❌	✅	❌
RQ400A	Remote Control	❌	❌	❌	❌	❌	✅

You can find the alarms or detectors in the above list. If you are analarm manufacturer, you also see the sensor list.

Model	Type	Detection	Applications
LDCS1511	CO Sensor	CO gas	Residential and commercial carbon monoxide (CO) detectors, industrial carbon monoxide (CO) monitoring, fire alarms, portable CO detectors, multi-sensor fire detectors, CO detection in energy storage systems.
LDCS2219	CO Sensor	CO gas	Residential and commercial carbon monoxide (CO) detectors, industrial carbon monoxide (CO) monitoring, fire alarms, portable CO detectors, multi-sensor fire detectors, CO detection in energy storage systems.
LDCS2819	CO Sensor	CO gas	Residential and commercial carbon monoxide (CO) detectors, industrial carbon monoxide (CO) monitoring, fire alarms, portable CO detectors, multi-sensor fire detectors, CO detection in energy storage systems.
LDCS3119	CO Sensor	CO gas	Residential and commercial carbon monoxide (CO) detectors, industrial carbon monoxide (CO) monitoring, fire alarms, portable CO detectors, multi-sensor fire detectors, CO detection in energy storage systems.
