A Guide to the Design and Mass Production of Carbon Monoxide Alarms for OEM/ODM Projects
UL 2034 and EN 50291 are the two most critical carbon monoxide alarm standards in North American and European projects. Many projects perform stably in a single market. Still, issues such as mismatched alarm logic, insufficient environmental adaptability, and mass production consistency problems become apparent when they enter cross-regional sales. It is not a simple matter of “parameter adjustment” but rather a difference in the system’s design logic.
Why CO Alarm Projects Fail Across UL 2034 and EN 50291
In actual project implementation, clients commonly encounter the following situations:
For product managers, this means repeated revisions and extended certification cycles; for purchasing managers, it directly leads to uncontrollable costs and supply risks.
This article will focus on the following five aspects to help you avoid choosing an unsuitable alarm system:
Core Differences Between UL 2034 and EN 50291
1. Standard UL2034 vs EN50291 logical differences
UL 2034 focuses on control logic, while EN 50291 focuses on environmental stability. The same alarm system will face the following situations:
✅”Safe” in Europe
❌”Unqualified” in the United States
2. CO alarm standards comparison of Differences UL 2034 vs EN 50291
The table below provides a practical comparison from an engineering and compliance perspective, not a marketing version.
Item | UL 2034 | EN 50291 |
|---|---|---|
Markets | United States / Canada | Europe (UK, DE, FR, IT, etc.) |
Regulatory Attributes | Voluntary safety standards (referenced by regulations) | Harmonized standards (strongly linked to regulations) |
Typical Applications | Residential buildings, rental properties, real estate projects | Residential buildings, social housing, mandatory installation scenarios |
Risk and Liability Logic | Preventing false alarms → Preventing panic | Preventing delayed reporting → Preventing poisoning |
3. Power supply and low voltage testing
Item | UL 2034 | EN 50291 |
|---|---|---|
Low Voltage Alarm | Mandatory | Mandatory |
Power Failure Recovery | Yes | Yes |
Battery Life | Performance Verification | Nominal + Verification |
Judgment Logic | “No false alarms” | “Must indicate failure” |
4. Same sound pressure test
Item | UL 2034 | EN 50291 |
|---|---|---|
Sound Pressure | ≥85 dB @ 3m | ≥85 dB @ 3m |
Testing Environment | Strict | Strict |
Differences | same | same |
5. Identification and User Information Requirements
Item | UL 2034 | EN 50291 |
|---|---|---|
ppm Digital Display | Not mandatory | Not mandatory |
Warning Statement | Emphasizes “Do not ignore” | Emphasizes “Risk of poisoning” |
User Education | Less | More |
It includes warnings, instructions, and multilingual compliance to ensure users correctly understand the alarm risks. You can also read about misunderstanding the alarm meaning of CO alarms.
Alarm Logic Differences – Timing vs Sensitivity
This is the alert time of UL2034 vs EN50291.
CO Concentration | UL 2034 Requirements | EN 50291 Requirements |
|---|---|---|
30 ppm | 30days No alarm permitted | Alarm permitted (with delay) |
50 ppm | No apply | Alarm within 60–90 minutes |
70 ppm | Alarm within 60–240 minutes | No apply |
100ppm | No apply | Alarm within 10–40 minutes |
150 ppm | Alarm within 10–50 minutes | No apply |
300 ppm | No apply | Alarm within ≤3 minutes |
400 ppm | Alarm within 4–15 minutes | No apply |
👉 Contact Us To Get The CO Alarm Compliance Checklist
False Alarm vs Missing Alarm
False alarms and delayed alarms are different in market strategies: UL2034 prioritizes avoiding false alarms, while EN50291 emphasizes timely alarms. Risks need to be balanced through collaborative design of algorithms and sensors.
Item | UL 2034 | EN 50291 |
|---|---|---|
Attitude towards false alarms | Extremely strict | Relatively lenient |
Cooking interference | Must not trigger alarm | Delayed alarm permitted |
Short-term CO peaks | Does not trigger | May trigger |
Customer complaint risk | Low | Medium to high |
Long-term drift | Indirect control (through alarm behavior) | Indirect control |
Key point | Behavior consistency | Sensitivity consistency |
Mass production difficulty | Extremely high | Medium |
Environmental Adaptability Requirements (Low Temperature & Humidity)
EN50291 low temperature test is particularly critical. Stable alarms must be ensured through temperature and humidity compensation and structural design.
Item | UL 2034 | EN 50291 |
|---|---|---|
High Temperature | Yes | Yes |
Low Temperature | Yes | Yes |
Damp Heat | Yes | Yes |
Temperature and Humidity Changes | More focused on “false alarms” | More focused on “failure to alarm” |
Sensor and Algorithm Matching Challenges
The alarm algorithm testing methods differ as follows:
Item | UL 2034 | EN 50291 |
|---|---|---|
Testing Method | Stepwise Exposure | Stepwise + Timed Window |
Key Focus | No premature alarms | No delayed alarms |
Algorithm Tolerance | High tolerance for “slow response” | Low tolerance for “slow response” |
Engineering Difficulty | High (complex algorithm) | Medium (threshold-driven) |
The mismatch between sensors and algorithms manifests as follows:
- UL 2034 places greater demands on algorithm design
- EN 50291 places greater demands on sensor sensitivity
Many projects only replace sensors or adjust thresholds without simultaneously optimizing:
- Alarm algorithms
- Temperature compensation
- Output curves
This results in lab compliance but unstable performance in the field. You can read more about stable CO sensors from the following link:
Mass Production Consistency – The Real Certification Barrier
Insufficient production consistency control
These issues ultimately surfaced during certification spot checks or market use. CFS builds a “system-level design solution” to address the differences between UL 2034 and EN 50291, rather than single-point optimization.
You can read more about stable alarms from the following link:
How CO Alarms Work (Engineering Principle)
- Unified Detection Principle (Basic Capability)
The core of the carbon monoxide alarm is based on an electrochemical sensor:
This process is similar to smoke alarms working principles.
👉 Sensing → Signal → Judgment → Alarm
Dual-Standard Algorithm Architecture (UL + EN)
A dual-mode algorithm must be established:
👉 Engineering Conclusion: One hardware platform, two sets of algorithm logic
Environmental Compensation Design for EN50291
The following must be considered:
Otherwise, the sensor output will deviate significantly in low-temperature or complex environments.

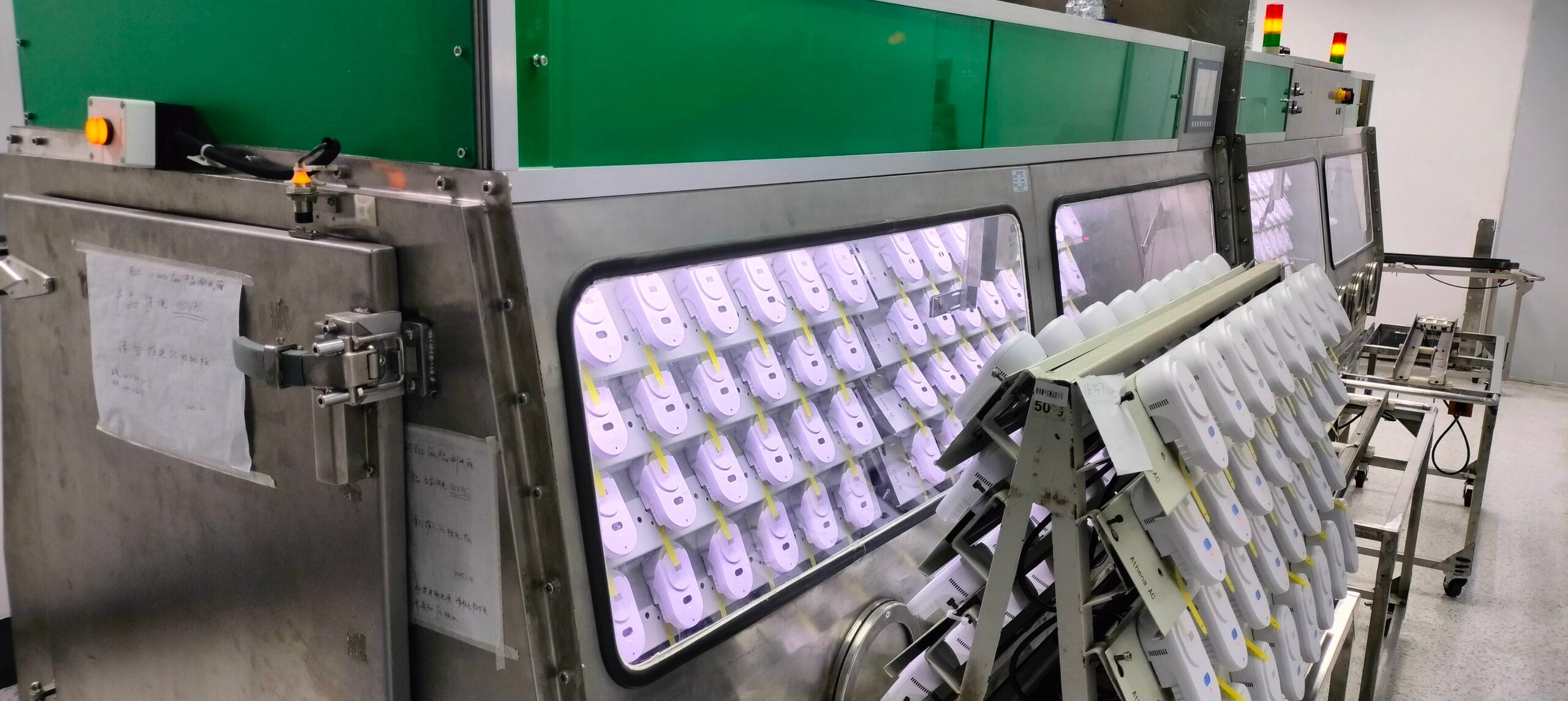

100% Calibration and Production Control System
Mass Production Consistency Control (Key to Certification)
Implementation of a Standardized Production System:
This is the real threshold for passing certification and ensures Consistent Alarm Behavior for Every Device.
Pre-Certification Validation Strategy
Completed during the prototype stage:
Avoid repeated rectifications after entering the certification stage.
Certification Failure Risks
Case Study – From Certification Failure to Dual Compliance
In an OEM project targeting both the European and North American markets, the client’s initial solution had significant issues:
Optimization Measures:
Results:
Why Choose CFS as Your OEM Partner
Start your project Now.
Strategic Recommendations for OEM Buyers
From a project success rate perspective, we recommend:
Why Trust CFS Engineering Capability
FAQ
Summary
The difference between UL 2034 and EN 50291 is not fundamentally a difference in parameters, but rather a difference in system design logic.
Successful projects typically possess:
- Unified testing principles
- Dual-standard algorithm architecture
- Environmental compensation capabilities
- Strict consistency control
One word, the real competitive advantage is not “meeting one standard” for OEM customers, but rather simultaneously meeting multiple standards and maintaining stability in mass production.
