“Battery lifespan” is not a parameter issue, but rather a system-level design outcome in product selection and OEM development for smoke and carbon monoxide (CO) alarms. Many products claim a “10-year battery life,” but they only achieve 6-8 years in actual projects. Battery life depends on the overall power consumption model, not the battery’s capacity.
This article breaks down the system into methods for calculating battery life, key variables, and procurement evaluation points from a manufacturing engineering perspective.
Why Most “10-Year Battery” Alarms Only Last 6–8 Years
The “10-year battery” is not a simple battery specification, but rather the result of system-level power consumption design. Most products in actual projects can only achieve 6–8 years, and the main reason lies not in battery capacity, but in the loss of control of the following key aspects:
1. Average current is underestimated (design and testing deviation)
Many datasheets only specify the standby current (μA level), but neglect dynamic power consumption from LED indicators, periodic sampling, algorithm calculations, and fault alerts. The actual average current is often 20%–50% higher than the design value, directly shortening the lifespan.
2. Sensor and system mismatch (CO alarms)
Electrochemical CO sensors have continuous operating current and aging drift, and later compensation algorithms will increase power consumption. If the battery and sensor lifespans are not designed to match, the overall device lifespan is usually shortened.
3. Unreasonable alarm and notification strategies
Frequent low-battery warnings and repeated alarms caused by false alarms can significantly increase current consumption (10–30 mA), and the cumulative long-term impact on lifespan is considerable.
4. Improper selection of wireless modules
High-power communication solutions such as Wi-Fi, if not properly managed in sleep mode, can become hidden major power consumers, making it difficult to achieve a true 10-year lifespan; in comparison, RF solutions are easier to control in terms of power consumption.
5. Ignoring environmental and batch variations
High temperatures accelerate battery degradation, and humidity affects sensor stability; at the same time, internal battery resistance, component tolerances, and production consistency all lower the actual lifespan.
6. Lack of lifecycle validation
Some products claim a 10-year lifespan based on theoretical calculations, but without long-term simulation testing and environmental stress validation, the actual usage differs significantly from experimental results.
Basic Battery Life Calculation Formula for Smoke & CO Alarms
The basic formula for calculating battery life theoretically is:
Battery life (hours) = Battery capacity (mAh) ÷ Average operating current (mA)
Converted to years:
Life (years) = Battery life (hours) ÷ 24 ÷ 365
It is a theoretical value, but a correction factor must actually be introduced:
Actual life = Theoretical life ×0.85
Reasons include:
👉 Get a battery life evaluation for your project
Engineering Model: How to Calculate Average Current
Smoke alarms and CO alarms are not constant current devices; their power consumption is a combination of multiple operating states:
- Standby Current: Typical 16μA, a decisive factor in lifespan.
- LED Indicator Current: flashing once every 60 seconds, with each flash lasting 10ms.
- MCU and Sensor Cyclic Operating Current: Includes sampling, calculation, filtering, etc.
- Alarm Current: Buzzer + LED, typically 20–30mA.
Average Current Engineering Calculation Model:
Iavg = Is + (Iled × Duty) + (Isensor × Tsensor/Tcycle) + (Ialarm × Talarm / Tlife)
For example:
Assuming the following parameters for a combination alarm:
Battery capacity: 2100mAh (CR123A lithium battery)
Standby current: 16μA
LED current: 5mA (0.01 seconds/60 seconds)
Sensor Current: 5mA(100ms/60 sensors)
Alarm current: 30mA
Alarm time over the entire lifespan: 30 minutes
Calculation process:
Average LED current:
5 × (0.01 / 60) = 0.00083mA
Average Sensor current:
5× (0.1 / 120) =0.00415mA
Alarm equivalent current:
30 × (0.5 / 87600) ≈ 0.000171mA
Total average current:
0.016 + 0.00083+ 0.00415 + 0.000171 =0.020151mA
Theoretical lifespan:
2100 ÷ 0.020151 ≈ 104213 hours ≈ 11.90years
Actual lifespan =11.90 ×0.85=10.11 years
This is the engineering logic behind the “10-year battery product”.
👉 Request low-power design consultation
Why Smoke and CO Alarms Have Different Lifespans
1. Smoke Alarm (Photoelectric)
Features:
- Low power consumption
- Mainly consumed by the MCU and LED
- Easily achieves a 10-year lifespan
2. Carbon Monoxide Alarm (Electrochemical)
Features:
- Sensor operates continuously
- Higher current consumption
- Lifespan limited by the sensor (typically 5–10 years)
The CO alarm lifespan is determined by the “CO sensor lifespan,” not the battery life.
Top 5 Factors That Affect Battery Life in Real Use
1. Low-Power Design Capabilities
Excellent design should include:
- MCU deep sleep mode
- Low-power wake-up mechanism
- Intermittent sensor operation
- CO sensor aging increases power consumption
- Smoke chamber contamination can lead to false alarms
3. Alarm and Notification Strategies
- Low battery warning frequency
- Fault buzzer strategy
Poor design can significantly shorten lifespan
4. Wireless Communication Module
- RF → Low power consumption
- Wi-Fi → High power consumption
Wi-Fi products are generally less likely to achieve a 10-year battery life
5. Environmental Factors
- High temperature → Accelerates battery degradation
- High humidity → Affects sensors
How to Design a Real 10-Year Smoke Alarm (OEM Perspective)
Battery life is verified through full lifecycle simulation, environmental stress testing, and 100% sensor calibration in CFS production line.
A ‘10-year smoke alarm‘ is not a matter of battery selection, but a systems engineering project involving low-power architecture, sensor stability and lifecycle validation. To create a genuinely viable 10-year product, the following key modules need to be controlled simultaneously:
1. Power system design (Battery Matching)
- Choose a sealed lithium battery (not simply replacing with an alkaline battery)
- Establish a capacity-load curve match (considering internal resistance and pulse current)
- Verify discharge performance in 14°F~122°F (-10℃~50℃)
- Design undervoltage protection and end-of-life strategy
👉 Key point: the battery must not only have ‘enough capacity’ but also ‘stable output over 10 years’
2. μA-level low-power architecture (core capability)
- MCU deep sleep (Deep Sleep < 5μA)
- Event-driven wake-up (Timer / Interrupt)
- Duty cycle operation mechanism (control Duty Cycle)
- Peripheral power-on-demand (Sensor / LED / RF area management) Engineering target: average current ≤ 15–20μA
3. Smoke sensing system optimization (optical chamber and algorithm)
- Optical chamber structure design (dust-proof, insect-proof)
- Low-noise signal acquisition and filtering
- Dynamic threshold and environmental compensation algorithms
- Meet UL217 or EN14604 false alarm control requirements
4. Alarm and Notification Strategies
- Buzzer drive optimization (pulse mode instead of continuous drive)
- LED low duty cycle flashing (e.g., once every 40 seconds)
- Low battery warning frequency control
- Fault alarm logic optimization
Engineering Conclusion: Improper alarm strategy design can shorten lifespan by 1–2 years
5. Communication Module Selection (System Architecture Decision)
- RF (433/868MHz): Low power consumption, suitable for 10-year products
- Wi-Fi: Requires strict sleep management, otherwise difficult to achieve 10 years
Principle: Communication capability must conform to the power budget
6. Production Control: Ensuring Battery Life Consistency in Mass Production
- Battery batch consistency screening (internal resistance / capacity)
- 100% sensor calibration (sensitivity consistency)
- Stability of SMT and soldering processes

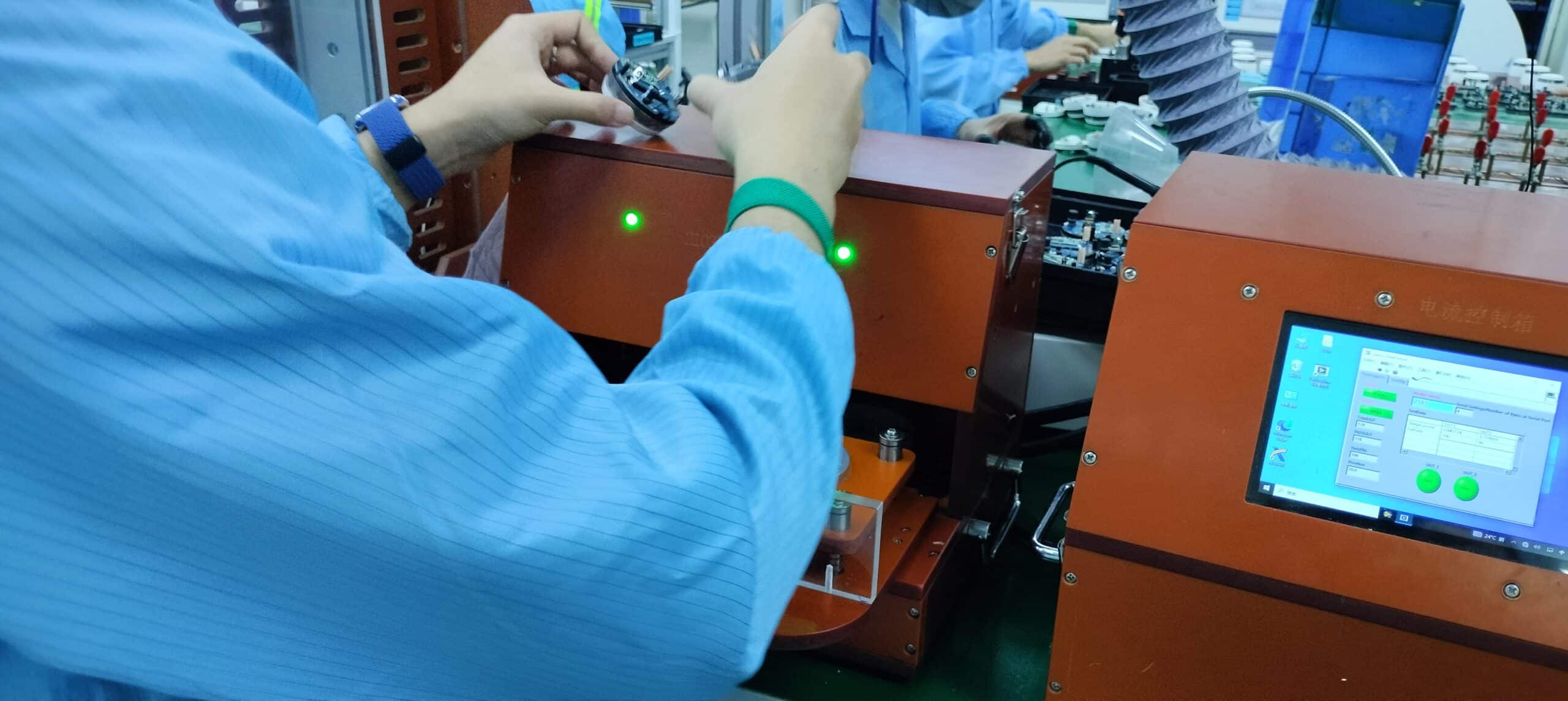

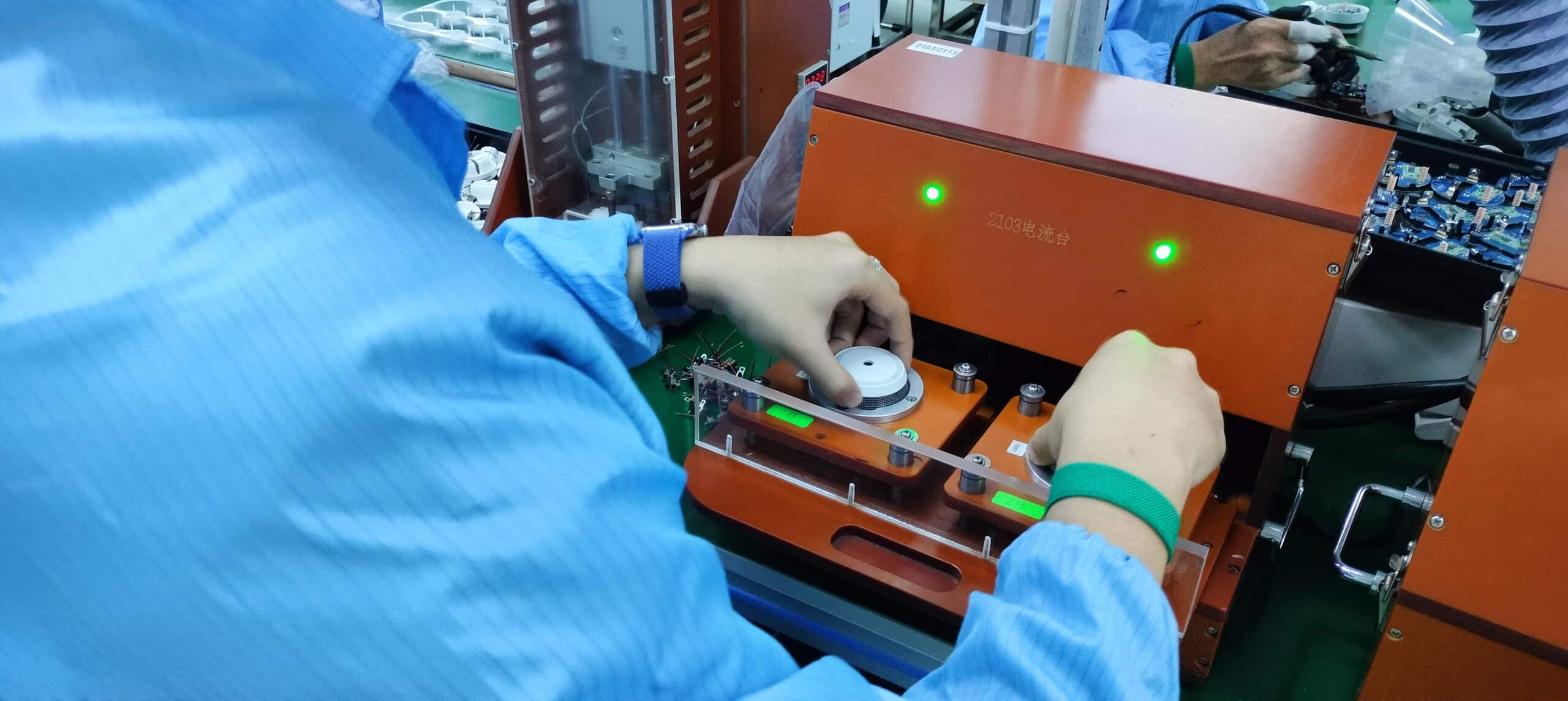

- Power consumption spot check (measure average current in practice, not just theoretical values)
Conclusion: Design approval ≠ Mass production reliability
7. Lifecycle Verification (Must Execute)
- 10-year accelerated aging simulation (temperature and humidity cycles)
- Long-term power consumption monitoring (real working model)
- Alarm counts and extreme testing
- Batch consistency verification
A “10-year product” without lifecycle testing is essentially based on parameter assumptions
8. Certification and Regulatory Compliance (Market Access)
Products must meet:
- UL217 (North America)
- EN14604 (Europe)
And assure:
- Full lifecycle power supply capability
- Stable alarm output
A genuine 10-year smoke alarm is not about ‘choosing a big battery,’ but about balancing μA-level power consumption control, sensor stability, and mass production consistency. A 10-year lifespan is not a specification parameter, but the result of engineering capability and manufacturing systems.
👉 Download 10-year smoke alarm design checklist
Production Control: Ensuring Battery Life Consistency in Mass Production
CFS ensure end-to-end control from design verification to mass production with Six Sigma quality management system over 20 years of experience manufacturing smoke and carbon monoxide alarms. Through standardized DFM/DVT/PVT processes, data-driven management of key parameters (such as power consumption, sensitivity, and consistency), and environmental and lifecycle testing, Custom Fire Security guarantees product stability and repeatability under UL, EN, and other regulations, meeting the stringent long-term reliability requirements of brand owners and engineering projects.
- Battery Matching
- Capacity and Load Curve Matching
- Low Temperature Performance Verification
- Power Consumption Verification
- Measured Average Current (Not Theoretical)
- Multi-Scenario Testing (Humidity/Temperature)
- CO Calibration and Screening
- 100% Gas Calibration
- Aging Screening
- Life Cycle Testing
- Simulated 10-Year Operation
- Batch Consistency Verification
How to Evaluate a Supplier’s Battery Life Claim
When selecting a battery or developing an OEM product, don’t just look at the “10-year battery” label. Focus on the following:
1. Average Current (μA level)
Is it below 20μA?
2. Battery Type
- Lithium-ion vs. Alkaline battery
- Is it a sealed design?
3. Does it include all power consumption?
Does it calculate: Alarm, LED, Communication?
4. CO Sensor Lifespan
Is it compatible with the battery?
5. Testing Capabilities
- Is there lifecycle testing?
- Is there environmental testing?
One word, the essence of battery life is not “battery capacity,” but rather:
System power consumption control capability + Sensor stability + Operating environment
A truly reliable 10-year battery product must simultaneously meet:
- μA-level standby current
- Stable sensor performance
- Reasonable alarm strategy
- Rigorous testing system
Get a Custom Low-Power Fire Alarm Solution
If you are a purchasing or product manager:
👉 Don’t ask:
❌ “Is it a 10-year battery?”
👉 Instead, ask:
Because what truly determines product quality is not the nominal parameters, but rather: Engineering design capabilities and manufacturing consistency.
👉 Talk to our OEM engineering team
Summary
Battery life is not determined by battery capacity, but by system-level power consumption design and sensor stability.
A true 10-year smoke alarm is not built on battery capacity, but on engineering discipline in power management, sensor control, and system validation.
